Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBR3540RDIODE SCHOTTKY REV 40V 35A DO4 |
8,321 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Schottky, Reverse Polarity | 40 V | 35A | 680 mV @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 20 V | - | - | - | Chassis, Stud Mount | DO-4 | -55°C ~ 150°C |
|
|
MBR3545RDIODE SCHOTTKY REV 45V 35A DO4 |
4,402 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Schottky, Reverse Polarity | 45 V | 35A | 680 mV @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 20 V | - | - | - | Chassis, Stud Mount | DO-4 | -55°C ~ 150°C |
|
|
MBR3580RDIODE SCHOTTKY REV 80V 35A DO4 |
3,046 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Schottky, Reverse Polarity | 80 V | 35A | 840 mV @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 20 V | - | - | - | Chassis, Stud Mount | DO-4 | -55°C ~ 150°C |
|
FR30G02DIODE GEN PURP 400V 30A DO5 |
2 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 400 V | 30A | 1 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 25 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|
MUR5010DIODE GEN PURP 100V 50A DO5 |
7,466 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 100 V | 50A | 1 V @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 10 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -55°C ~ 150°C |
|
|
MUR5005DIODE GEN PURP 50V 50A DO5 |
8,811 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 50 V | 50A | 1 V @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 10 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -55°C ~ 150°C |
|
|
MUR5020DIODE GEN PURP 200V 50A DO5 |
3,660 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 200 V | 50A | 1 V @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 10 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -55°C ~ 150°C |
|
|
MUR5040DIODE GEN PURP 400V 50A DO5 |
5,867 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 400 V | 50A | 1 V @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 10 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -55°C ~ 150°C |
|
FR70G02DIODE GEN PURP 400V 70A DO5 |
3,781 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 400 V | 70A | 1.4 V @ 70 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 25 µA @ 100 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|

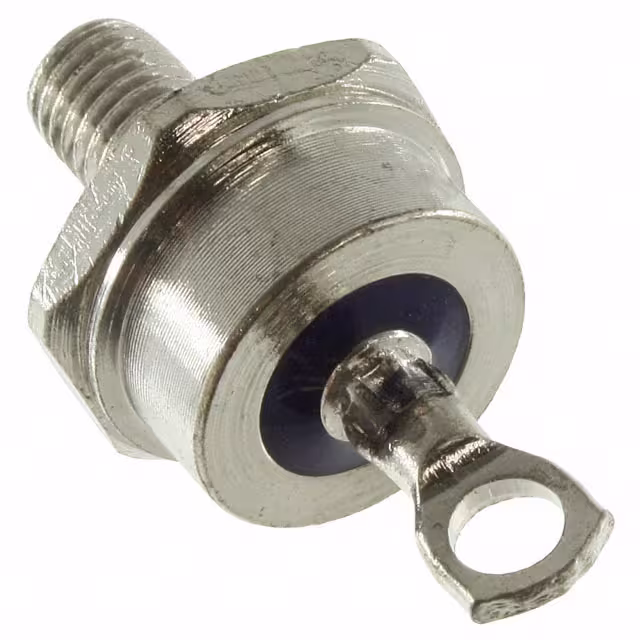

MUR7020DIODE GEN PURP 200V 70A DO5 |
6,400 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 200 V | 70A | 1 V @ 70 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -55°C ~ 150°C |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
