Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FR85DR05DIODE GEN PURP REV 200V 85A DO5 |
4,748 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 200 V | 85A | 1.4 V @ 85 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 25 µA @ 100 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|
|
FR85GR05DIODE GEN PURP REV 400V 85A DO5 |
4,586 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 400 V | 85A | 1.4 V @ 85 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 25 µA @ 100 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|
FR85JR02DIODE GEN PURP REV 600V 85A DO5 |
6,685 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 600 V | 85A | 1.4 V @ 85 A | Fast Recovery =< 500ns, > 200mA (Io) | 250 ns | 25 µA @ 100 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|
|
FR85KR05DIODE GEN PURP REV 800V 85A DO5 |
9,666 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 800 V | 85A | 1.4 V @ 85 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 25 µA @ 100 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|
|
FR85MR05DIODE GEN PURP REV 1KV 85A DO5 |
2,279 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 1000 V | 85A | 1.3 V @ 85 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 25 µA @ 100 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|

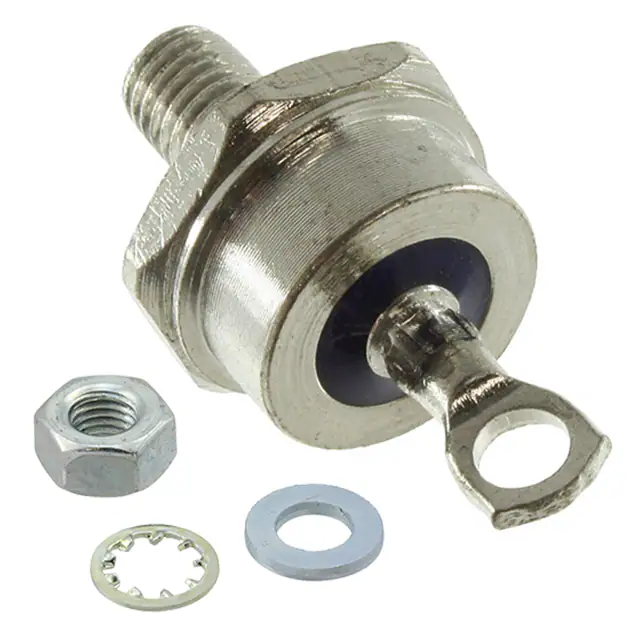

MUR5010RDIODE GEN PURP REV 100V 50A DO5 |
2 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 100 V | 50A | 1 V @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 10 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -55°C ~ 150°C |
|
|
GC05MPS33J-TR3300V 5A TO-263-7 SIC SCHOTTKY M |
7,595 | - |
|
Datasheet | MPS™ | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Discontinued at Digi-Key | SiC (Silicon Carbide) Schottky | 3300 V | 11A | 3 V @ 5 A | No Recovery Time > 500mA (Io) | 0 ns | 50 µA @ 3300 V | 337pF @ 1V, 1MHz | - | - | Surface Mount | TO-263-7 | -55°C ~ 175°C |
|
|
MURH10005DIODE GEN PURP 50V 100A D-67 |
9,973 | - |
|
Datasheet | - | D-67 | Bulk | Obsolete | Standard | 50 V | 100A | 1.3 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 50 V | - | - | - | Chassis Mount | D-67 | - |
|
|
MURH10005RDIODE GEN PURP REV 50V 100A D-67 |
9,553 | - |
|
Datasheet | - | D-67 | Bulk | Obsolete | Standard, Reverse Polarity | 50 V | 100A | 1.3 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 50 V | - | - | - | Chassis Mount | D-67 | - |
|
|
MURH7005DIODE GEN PURP 50V 70A D-67 |
9,319 | - |
|
Datasheet | - | D-67 | Bulk | Obsolete | Standard | 50 V | 70A | 1 V @ 70 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 50 V | - | - | - | Chassis Mount | D-67 | -55°C ~ 150°C |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
