Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N3210DIODE GEN PURP 200V 15A DO203AB |
3 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 200 V | 15A | 1.5 V @ 15 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 50 V | - | - | - | Stud Mount | DO-203AB (DO-5) | -65°C ~ 175°C |
|

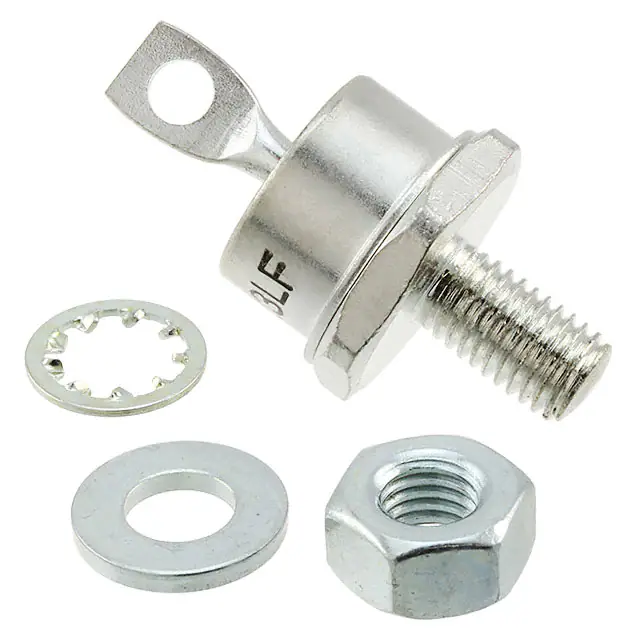

1N3214DIODE GEN PURP 600V 15A DO5 |
6,268 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 600 V | 15A | 1.5 V @ 15 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -65°C ~ 175°C |
|
|
S85JDIODE GEN PURP 600V 85A DO5 |
9,647 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 600 V | 85A | 1.1 V @ 85 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 100 V | - | - | - | Chassis, Stud Mount | DO-5 | -65°C ~ 180°C |
|

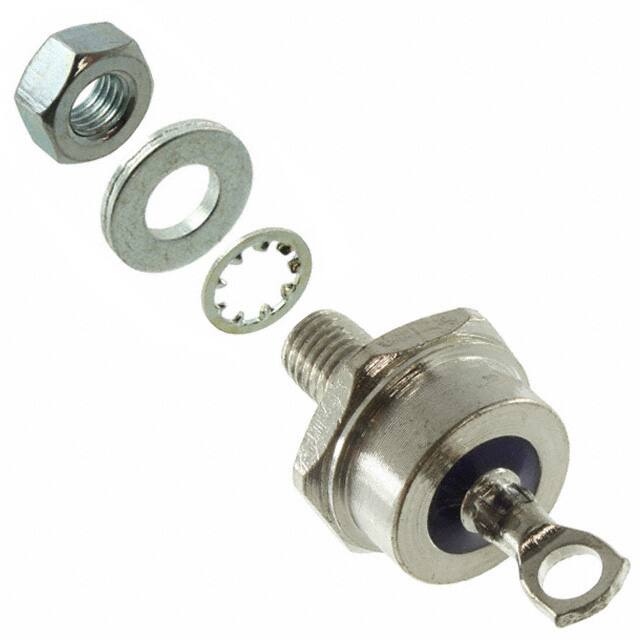

S85VRDIODE GEN PURP REV 1.4KV 85A DO5 |
3,238 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 1400 V | 85A | 1.1 V @ 85 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 100 V | - | - | - | Chassis, Stud Mount | DO-5 | -65°C ~ 150°C |
|
1N6095RDIODE SCHOTTKY REV 30V 25A DO4 |
9,251 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Schottky, Reverse Polarity | 30 V | 25A | 580 mV @ 25 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 20 V | - | - | - | Chassis, Stud Mount | DO-4 | -55°C ~ 150°C |
|

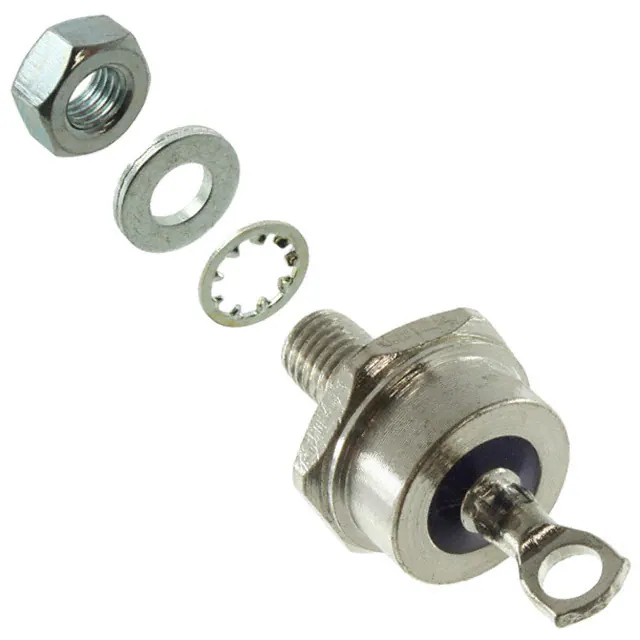

MBR8045DIODE SCHOTTKY 45V 80A DO5 |
6,951 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Schottky | 45 V | 80A | 650 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | - | - | - | Chassis, Stud Mount | DO-5 | -55°C ~ 150°C |
|

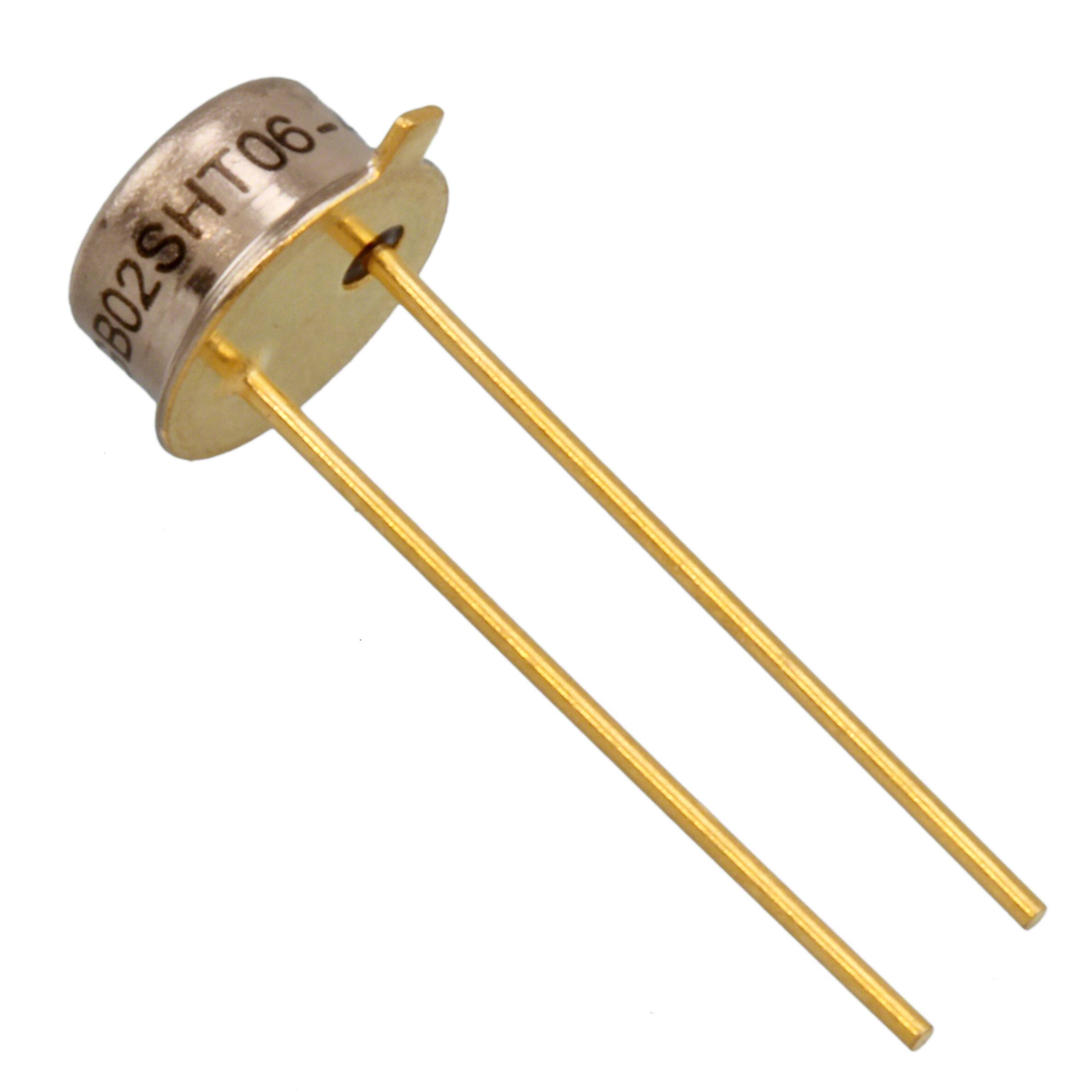

GB02SHT06-46DIODE SIL CARBIDE 600V 4A TO46 |
8,914 | - |
|
Datasheet | - | TO-206AB, TO-46-3 Metal Can | Bulk | Active | SiC (Silicon Carbide) Schottky | 600 V | 4A | 1.6 V @ 1 A | No Recovery Time > 500mA (Io) | 0 ns | 5 µA @ 600 V | 76pF @ 1V, 1MHz | - | - | Through Hole | TO-46 | -55°C ~ 225°C |
|

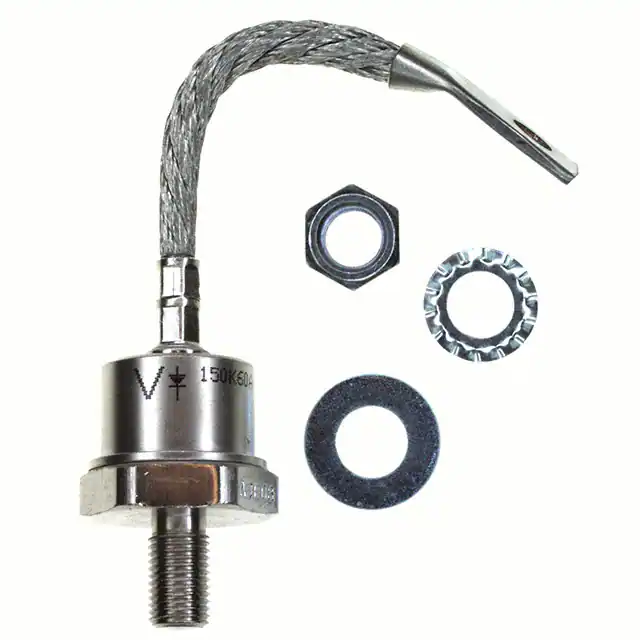

150KR60ADIODE GP REV 600V 150A DO205AA |
4,556 | - |
|
Datasheet | - | DO-205AA, DO-8, Stud | Bulk | Active | Standard, Reverse Polarity | 600 V | 150A | 1.33 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 35 mA @ 600 V | - | - | - | Chassis, Stud Mount | DO-205AA (DO-8) | -40°C ~ 200°C |
|

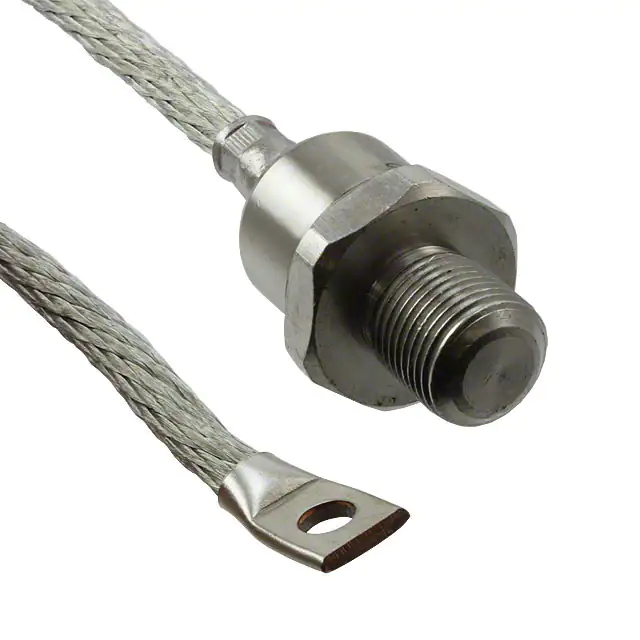

S300YRDIODE GP REV 1.6KV 300A DO9 |
2,041 | - |
|
Datasheet | - | DO-205AB, DO-9, Stud | Bulk | Active | Standard, Reverse Polarity | 1600 V | 300A | 1.2 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1600 V | - | - | - | Chassis, Stud Mount | DO-9 | -60°C ~ 180°C |
|
S380YDIODE GP 1.6KV 380A DO205AB DO9 |
1 | - |
|
Datasheet | - | DO-205AB, DO-9, Stud | Bulk | Active | Standard | 1600 V | 380A | 1.2 V @ 380 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1600 V | - | - | - | Chassis, Stud Mount | DO-205AB (DO-9) | -60°C ~ 180°C |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
