Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SD0805S040S0R1DIODE SCHOTTKY 40V 100MA 0805 |
17,906 | - |
|
Datasheet | - | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Schottky | 40 V | 100mA | 500 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | - | 30 µA @ 40 V | - | - | - | Surface Mount | 0805 (2012 Metric) | -55°C ~ 125°C |
|
SD1206S040S0R5DIODE SCHOTTKY 40V 500MA 1206 |
19,671 | - |
|
Datasheet | - | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Schottky | 40 V | 500mA | 480 mV @ 500 mA | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 40 V | - | - | - | Surface Mount | 1206 (3216 Metric) | -55°C ~ 125°C |
|
|
SD1206T020S1R0DIODE SCHOTTKY 20V 1A 1206 |
12,935 | - |
|
Datasheet | - | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Schottky | 20 V | 1A | 500 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 20 V | - | - | - | Surface Mount | 1206 (3216 Metric) | -55°C ~ 125°C |
|
|
SD1206S020S1R0DIODE SCHOTTKY 20V 1A 1206 |
20,276 | - |
|
Datasheet | - | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Schottky | 20 V | 1A | 500 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 20 V | - | - | - | Surface Mount | 1206 (3216 Metric) | -55°C ~ 125°C |
|
|
SD1206T040S1R0DIODE SCHOTTKY 40V 1A 1206 |
2,439 | - |
|
Datasheet | - | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Schottky | 40 V | 1A | 500 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 40 V | - | - | - | Surface Mount | 1206 (3216 Metric) | -55°C ~ 125°C |
|

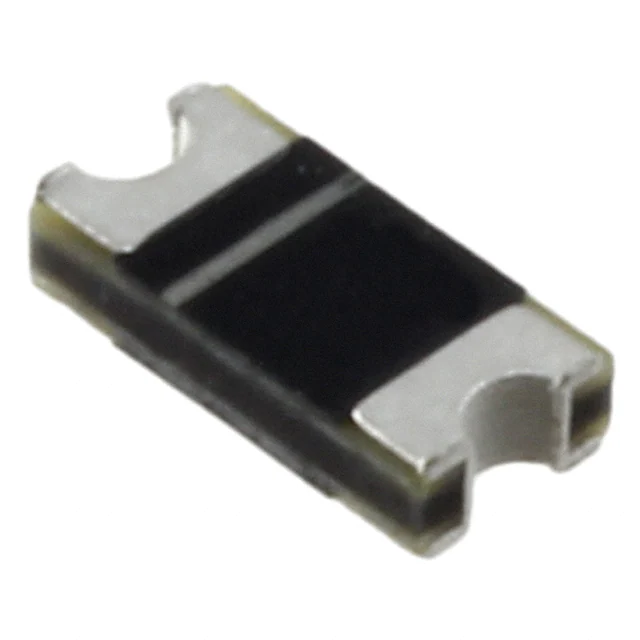

SD2010S040S3R0DIODE SCHOTTKY 40V 3A 2010 |
128,805 | - |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | Schottky | 40 V | 3A | 500 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 40 V | - | - | - | Surface Mount | 2010/DO-214AC | -55°C ~ 125°C |
|
|
SD2010S100S1R0DIODE SCHOTTKY 100V 1A 2010 |
3,769 | - |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | Schottky | 100 V | 1A | 850 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 100 V | - | - | - | Surface Mount | 2010/DO-214AC | -55°C ~ 125°C |
|
|
SD1206T040S2R0DIODE SCHOTTKY 40V 2A 1206 |
7,106 | - |
|
Datasheet | - | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Schottky | 40 V | 2A | 500 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 40 V | - | - | - | Surface Mount | 1206 (3216 Metric) | -55°C ~ 125°C |
|
SD1206S040L2R0SCHOTTKY DIODES |
5,711 | - |
|
Datasheet | SD | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Schottky | 40 V | 2A | 400 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 40 V | - | - | - | Surface Mount | 1206 | -55°C ~ 125°C |
|
|
SD1206T040S3R0DIODE SCHOTTKY 40V 3A 1206 |
5,188 | - |
|
Datasheet | - | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Schottky | 40 V | 3A | 550 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 40 V | - | - | - | Surface Mount | 1206 | -55°C ~ 125°C |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
