Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N4942E3DIODE GEN PURP 200V 1A |
6,219 | - |
|
Datasheet | - | Axial | Bulk | Active | Standard | 200 V | 1A | 1.3 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 1 µA @ 200 V | 45pF @ 12V, 1MHz | - | - | Through Hole | - | -65°C ~ 175°C |
|
JANTX1N5617/TRDIODE GEN PURP 400V 1A |
9,027 | - |
|
Datasheet | - | A, Axial | Tape & Reel (TR) | Active | Standard | 400 V | 1A | 1.6 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 500 nA @ 400 V | 35pF @ 12V, 1MHz | Military | MIL-PRF-19500/429 | Through Hole | A, Axial | -65°C ~ 175°C |
|
1N3613/TRDIODE GEN PURP 600V 1A |
4,524 | - |
|
Datasheet | - | A, Axial | Tape & Reel (TR) | Active | Standard | 600 V | 1A | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | - | 1 µA @ 600 V | - | - | - | Through Hole | A, Axial | -65°C ~ 175°C |
|
|
1N646UR-1SILICON SWITCHING DIODES |
9,540 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1N3600URDIODE GEN PURP 75V 300MA DO213AA |
8,129 | - |
|
Datasheet | - | DO-213AA | Bulk | Active | Standard | 75 V | 300mA | 1 V @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 4 ns | 100 nA @ 50 V | 2.5pF @ 0V, 1MHz | - | - | Surface Mount | DO-213AA | -65°C ~ 175°C |
|

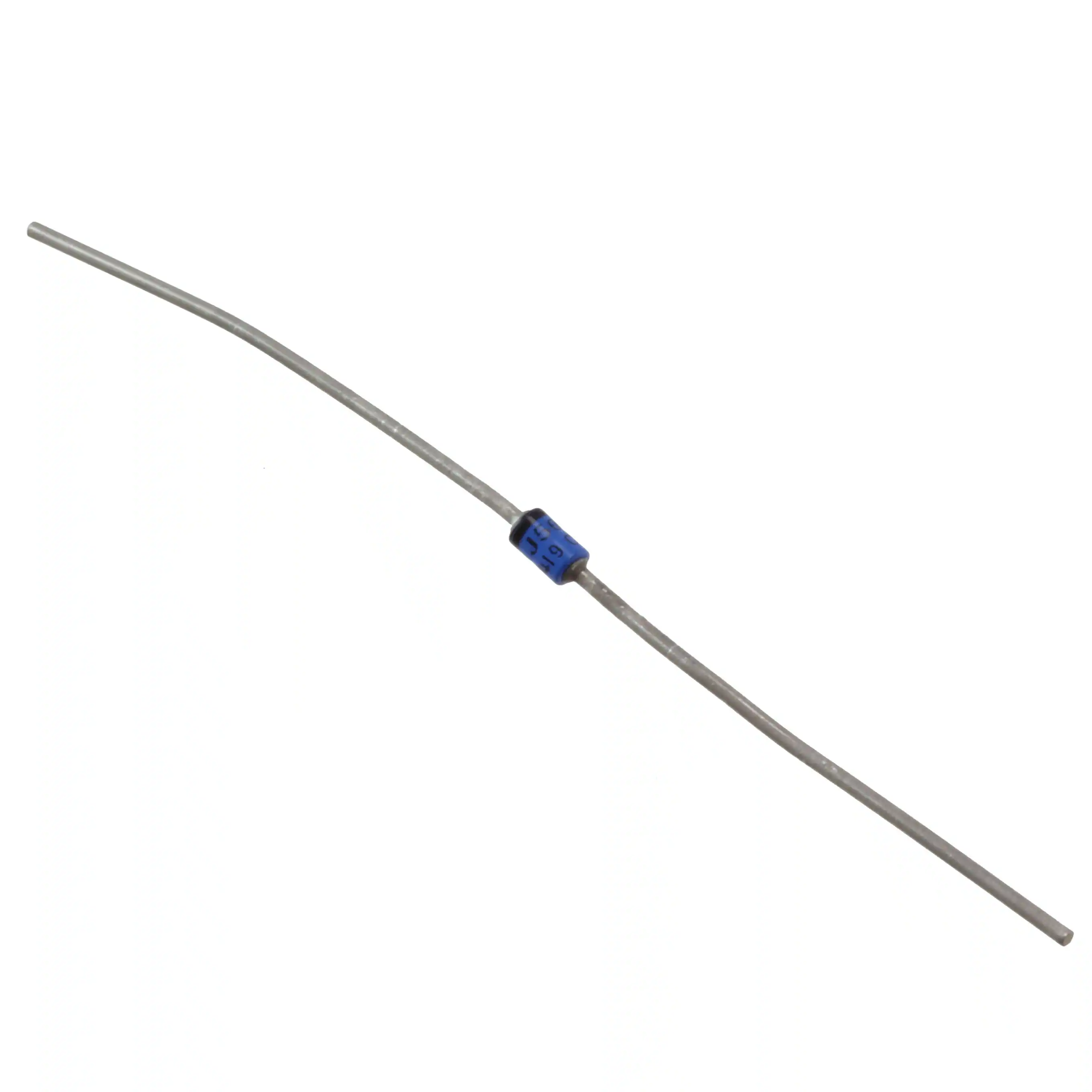

JAN1N5620DIODE GEN PURP 800V 1A AXIAL |
2,024 | - |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 800 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 800 V | - | Military | MIL-PRF-19500/427 | Through Hole | A, Axial | -65°C ~ 200°C |
|

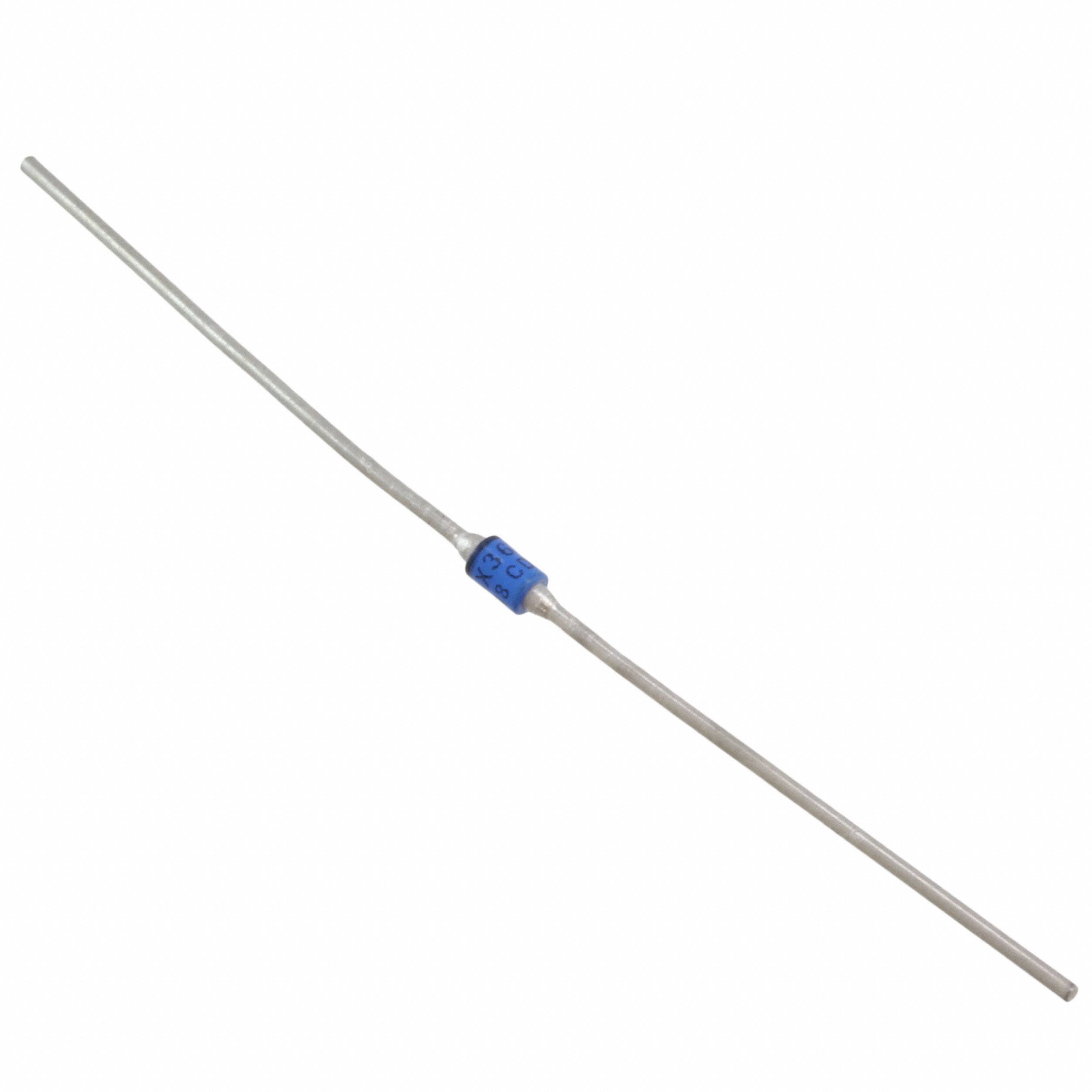

JANTX1N3614DIODE GEN PURP 800V 1A AXIAL |
7,734 | - |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 800 V | 1A | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | - | 1 µA @ 800 V | - | Military | MIL-PRF-19500/228 | Through Hole | A, Axial | -65°C ~ 175°C |
|
JANHCA1N5712DIODE SCHOTTKY 20V 75MA DO35 |
6,598 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Schottky | 20 V | 75mA | 1 V @ 35 mA | Small Signal =< 200mA (Io), Any Speed | - | 150 nA @ 16 V | 2pF @ 0V, 1MHz | Military | MIL-PRF-19500/444 | Through Hole | DO-204AH (DO-35) | -65°C ~ 150°C |
|
|
JAN1N5552/TRDIODE GEN PURP 600V 3A |
7,788 | - |
|
Datasheet | - | B, Axial | Tape & Reel (TR) | Active | Standard | 600 V | 3A | 1.2 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 600 V | - | Military | MIL-PRF-19500/420 | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
JANTX1N5619/TRDIODE GEN PURP 600V 1A |
2,760 | - |
|
Datasheet | - | A, Axial | Tape & Reel (TR) | Active | Standard | 600 V | 1A | 1.6 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 250 ns | 500 nA @ 600 V | - | Military | MIL-PRF-19500/429 | Through Hole | A, Axial | -65°C ~ 175°C |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
