Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JAN1N6642USDIODE GEN PURP 75V 300MA D-5D |
7,444 | - |
|
Datasheet | - | SQ-MELF, D | Bulk | Active | Standard | 75 V | 300mA | 1.2 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 5 ns | 500 nA @ 75 V | 40pF @ 0V, 1MHz | Military | MIL-PRF-19500/578 | Surface Mount | D-5D | -65°C ~ 175°C |
|
|
1N5552/TRDIODE GEN PURP 600V 3A B AXIAL |
2,938 | - |
|
Datasheet | - | B, Axial | Tape & Reel (TR) | Active | Standard | 600 V | 3A | 1.2 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 600 V | - | - | - | Through Hole | B, Axial | -65°C ~ 175°C |
|
1N5805DIODE GEN PURP 125V 1A AXIAL |
6,361 | - |
|
Datasheet | - | A, Axial | Bulk | Discontinued at Digi-Key | Standard | 125 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 125 V | 25pF @ 10V, 1MHz | - | - | Through Hole | A, Axial | -65°C ~ 125°C |
|
|
APT100D60BGDIODE GEN PURP 600V 100A TO247 |
3,867 | - |
|
Datasheet | - | TO-247-2 | Bulk | Active | Standard | 600 V | 100A | 2 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | 250 µA @ 600 V | - | - | - | Through Hole | TO-247 | -55°C ~ 150°C |
|

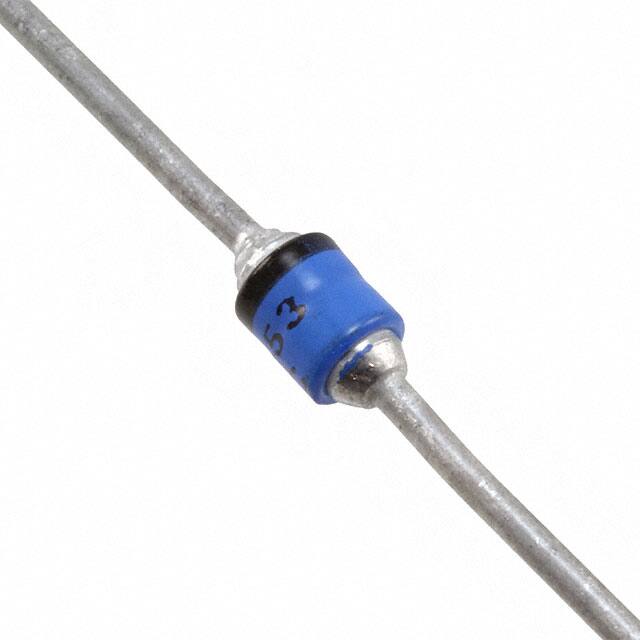

1N5551DIODE GEN PURP 400V 3A AXIAL |
6,230 | - |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 400 V | 3A | 1.2 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 400 V | - | - | - | Through Hole | B, Axial | -65°C ~ 175°C |
|
JAN1N5711-1/TRDIODE SCHOTTKY 70V 33MA DO35 |
6,050 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Schottky | 70 V | 33mA | 1 V @ 15 mA | Small Signal =< 200mA (Io), Any Speed | - | 200 nA @ 70 V | 2pF @ 0V, 1MHz | Military | MIL-PRF-19500/444 | Through Hole | DO-204AH (DO-35) | -65°C ~ 150°C |
|
|
1N5803E3DIODE GEN PURP 80V 1A AXIAL |
9,564 | - |
|
Datasheet | - | Axial | Bulk | Active | Standard | 80 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 75 V | 25pF @ 10V, 1MHz | - | - | Through Hole | Axial | -65°C ~ 175°C |
|
1N5622/TRDIODE GEN PURP 1KV 1A |
3,669 | - |
|
Datasheet | - | A, Axial | Tape & Reel (TR) | Active | Standard | 1000 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 1 V | - | - | - | Through Hole | A, Axial | -65°C ~ 200°C |
|
CDLL1A80DIODE SCHOTTKY 80V 1A DO213AB |
5,320 | - |
|
Datasheet | - | DO-213AB, MELF | Bulk | Active | Schottky | 80 V | 1A | 690 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 80 V | - | - | - | Surface Mount | DO-213AB | - |
|
JANTX1N5620/TRDIODE GEN PURP 800V 1A |
8,837 | - |
|
Datasheet | - | A, Axial | Tape & Reel (TR) | Active | Standard | 800 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 800 V | - | Military | MIL-PRF-19500/427 | Through Hole | A, Axial | -65°C ~ 200°C |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
