Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N5623US/TRDIODE GEN PURP 1KV 1A D-5A |
6,738 | - |
|
Datasheet | - | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 1000 V | 1A | 1.6 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 500 nA @ 1 V | 15pF @ 12V, 1MHz | - | - | Surface Mount | D-5A | -65°C ~ 175°C |
|
JANTX1N5554/TRDIODE GEN PURP 1KV 5A |
5,361 | - |
|
Datasheet | - | B, Axial | Tape & Reel (TR) | Active | Standard | 1000 V | 5A | 1.3 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 2 µA @ 1 V | - | Military | MIL-PRF-19500/420 | Through Hole | B, Axial | -65°C ~ 175°C |
|
1N5621USDIODE GEN PURP 800V 1A D-5A |
8,577 | - |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 800 V | 1A | 1.6 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 500 nA @ 800 V | 20pF @ 12V, 1MHz | - | - | Surface Mount | D-5A | -65°C ~ 175°C |
|
JANTX1N5712-1/TRDIODE SCHOTTKY 20V 750MA DO35 |
2,275 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Schottky | 20 V | 750mA | 1 V @ 35 mA | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 nA @ 16 V | 2pF @ 0V, 1MHz | Military | MIL-PRF-19500/444 | Through Hole | DO-204AH (DO-35) | -65°C ~ 150°C |
|
1N3611US/TRDIODE GEN PURP 200V 1A A SQ-MELF |
7,646 | - |
|
Datasheet | - | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 200 V | 1A | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | - | 1 µA @ 200 V | - | - | - | Surface Mount | A, SQ-MELF | -65°C ~ 175°C |
|
|
MNS1N5819UR-1/TRDIODE SCHOTTKY 45V 1A DO213AB |
5,405 | - |
|
Datasheet | - | DO-213AB, MELF (Glass) | Tape & Reel (TR) | Active | Schottky | 45 V | 1A | 490 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 45 V | 70pF @ 5V, 1MHz | Military | MIL-PRF-19500/586 | Surface Mount | DO-213AB (MELF, LL41) | -65°C ~ 125°C |
|
JAN1N5419DIODE GEN PURP 500V 3A AXIAL |
2,090 | - |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 500 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 250 ns | 1 µA @ 500 V | - | Military | MIL-PRF-19500/411 | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
JAN1N5618USDIODE GEN PURP 600V 1A D-5A |
8,233 | - |
|
Datasheet | - | SQ-MELF, A | Bulk | Discontinued at Digi-Key | Standard | 600 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 600 V | - | Military | MIL-PRF-19500/429 | Surface Mount | D-5A | -65°C ~ 200°C |
|

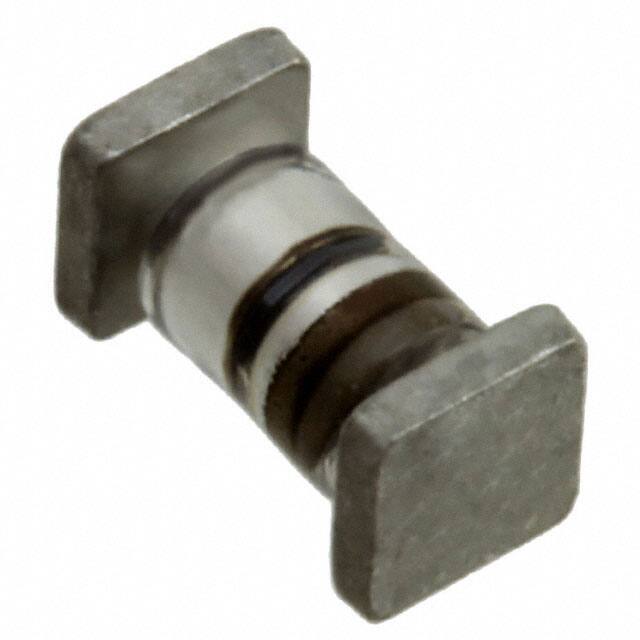

JAN1N5615USDIODE GEN PURP 200V 1A D-5A |
8,895 | - |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 200 V | 1A | 800 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 500 µA @ 200 V | - | Military | MIL-PRF-19500/429 | Surface Mount | D-5A | -65°C ~ 200°C |
|
|
JAN1N5619USDIODE GEN PURP 600V 1A D-5A |
9,775 | - |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 600 V | 1A | 1.6 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 250 ns | 500 nA @ 600 V | 25pF @ 12V, 1MHz | Military | MIL-PRF-19500/429 | Surface Mount | D-5A | -65°C ~ 175°C |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
