Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N5805USDIODE GEN PURP 135V 1A D-5A |
2,755 | - |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 135 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 125 V | 25pF @ 10V, 1MHz | - | - | Surface Mount | D-5A | -65°C ~ 175°C |
|

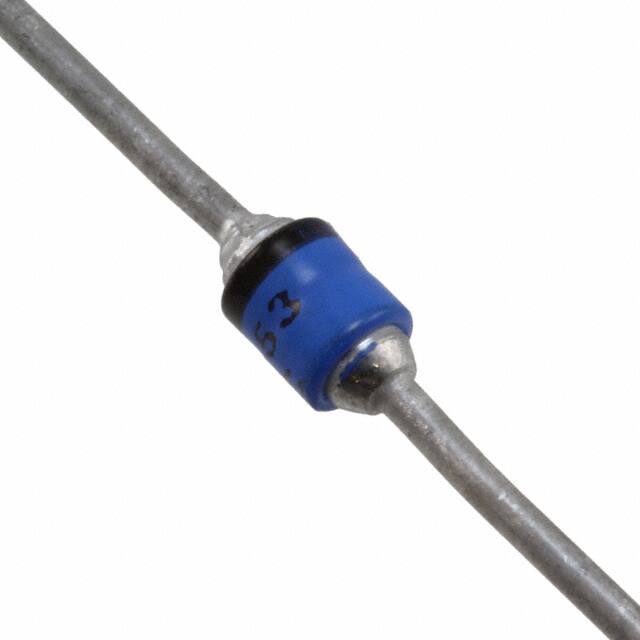

JANTXV1N5550DIODE GEN PURP 200V 5A AXIAL |
9,635 | - |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 200 V | 5A | 1.2 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 200 V | - | Military | MIL-PRF-19500/420 | Through Hole | B, Axial | -65°C ~ 175°C |
|
JAN1N5189/TRDIODE GEN PURP 500V 3A B AXIAL |
5,911 | - |
|
Datasheet | - | B, Axial | Tape & Reel (TR) | Active | Standard | 500 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 2 µA @ 500 V | - | Military | MIL-PRF-19500/424 | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
JAN1N5188/TRDIODE GEN PURP 400V 3A AXIAL |
6,652 | - |
|
Datasheet | - | B, Axial | Tape & Reel (TR) | Active | Standard | 400 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 250 ns | 2 µA @ 400 V | - | Military | MIL-PRF-19500/424 | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
JAN1N3595AUSDIODE GEN PURP 125V 150MA DO35 |
5,525 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 125 V | 150mA | 920 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 3 µs | 2 nA @ 125 V | - | Military | MIL-PRF-19500/241 | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|
|
JAN1N3595USDIODE GEN PURP 125V 4A B SQ-MELF |
5,671 | - |
|
Datasheet | - | SQ-MELF, B | Bulk | Active | Standard | 125 V | 4A | 1 V @ 200 mA | Standard Recovery >500ns, > 200mA (Io) | 3 µs | - | - | Military | MIL-PRF-19500/241 | Surface Mount | B, SQ-MELF | -65°C ~ 150°C |
|
|
JANTXV1N5186DIODE GEN PURP 100V 3A AXIAL |
9,779 | - |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 100 V | 3A | 1.5 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | - | 2 µA @ 100 V | - | Military | MIL-PRF-19500/424 | Through Hole | B, Axial | -65°C ~ 175°C |
|
JANTXV1N5619USDIODE GEN PURP 600V 1A D-5A |
5,665 | - |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 600 V | 1A | 1.6 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 250 ns | 500 nA @ 600 V | - | Military | MIL-PRF-19500/429 | Surface Mount | D-5A | -65°C ~ 175°C |
|
|
1N6641USDIODE GEN PURP 50V 300MA D-5D |
5,544 | - |
|
Datasheet | - | SQ-MELF, D | Bulk | Active | Standard | 50 V | 300mA | 1.1 V @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 5 ns | 100 nA @ 50 V | - | - | - | Surface Mount | D-5D | -65°C ~ 175°C |
|
|
JANTX1N5802DIODE GEN PURP 50V 1A AXIAL |
8,722 | - |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 50 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 50 V | 25pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Through Hole | A, Axial | -65°C ~ 175°C |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
