Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JAN1N4458RDIODE GP REV 800V 15A DO203AA |
5,105 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 800 V | 15A | 1.5 V @ 15 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 µA @ 800 V | - | Military | MIL-PRF-19500/162 | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
|
JAN1N4459RDIODE GP REV 1KV 15A DO203AA |
7,361 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 1000 V | 15A | 1.5 V @ 15 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 µA @ 1000 V | - | Military | MIL-PRF-19500/162 | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
|
JANTXV1N6081DIODE GEN PURP 150V 2A G AXIAL |
3,490 | - |
|
Datasheet | - | G, Axial | Bulk | Discontinued at Digi-Key | Standard | 150 V | 2A | 1.5 V @ 37.7 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 1 µA @ 150 V | - | Military | MIL-PRF-19500/503 | Through Hole | G, Axial | -65°C ~ 155°C |
|
|
JANTX1N485B/TRDIODE GEN PURP 180V 200MA DO7 |
9,369 | - |
|
Datasheet | - | DO-204AA, DO-7, Axial | Tape & Reel (TR) | Active | Standard | 180 V | 200mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | - | 25 nA @ 180 V | - | Military | MIL-PRF-19500/118 | Through Hole | DO-7 | -65°C ~ 200°C |
|
|
JANS1N5618DIODE GEN PURP 600V 1A A AXIAL |
5,763 | - |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 600 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 600 V | - | Military | MIL-PRF-19500/427 | Through Hole | A, Axial | -65°C ~ 200°C |
|

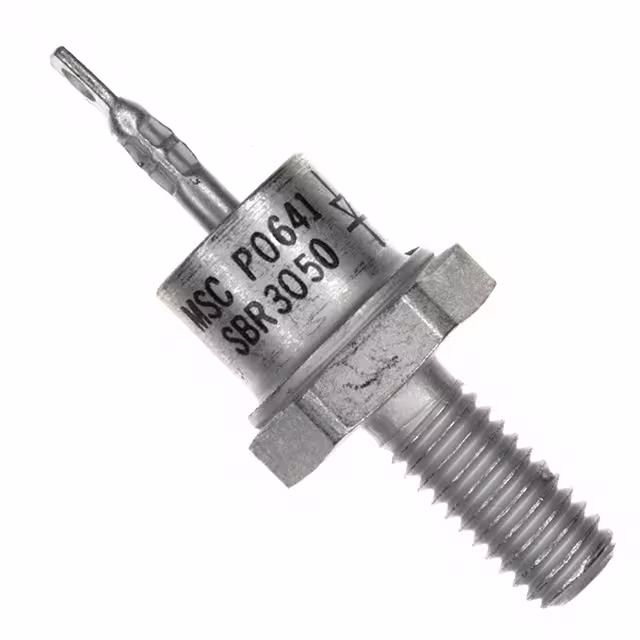

SBR3050DIODE SCHOTTKY 50V 30A DO203AA |
2,664 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Schottky | 50 V | 30A | 630 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 50 V | - | - | - | Chassis, Stud Mount | DO-203AA | - |
|
|
SBR3040RECTIFIER |
6,790 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Schottky | 40 V | 30A | 630 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 40 V | - | - | - | Stud Mount | DO-4 (DO-203AA) | -55°C ~ 175°C |
|
|
SBR3045RECTIFIER |
7,958 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Schottky | 45 V | 30A | 630 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 45 V | - | - | - | Stud Mount | DO-4 (DO-203AA) | -55°C ~ 175°C |
|
|
SBR3060RECTIFIER |
9,418 | - |
|
Datasheet | SBR306 | DO-203AA, DO-4, Stud | Bulk | Active | Schottky | 60 V | 30A | 680 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 60 V | - | - | - | Stud Mount | DO-4 (DO-203AA) | -55°C ~ 175°C |
|
|
SBR3550POWER SCHOTTKY |
5,218 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
