Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S3620DIODE GEN PURP 200V 70A DO203AB |
8,758 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 200 V | 70A | 1.25 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 25 µA @ 200 V | - | - | - | Stud Mount | DO-203AB (DO-5) | -65°C ~ 200°C |
|
|
S3670STD RECTIFIER |
5,186 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
S3660DIODE GEN PURP 600V 70A DO203AB |
5,657 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 600 V | 70A | 1.25 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 25 µA @ 600 V | - | - | - | Stud Mount | DO-203AB (DO-5) | -65°C ~ 200°C |
|
|
S3880DIODE GEN PURP 800V 100A DO5 |
2,727 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 800 V | 100A | 1.15 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 25 µA @ 800 V | - | - | - | Stud Mount | DO-5 (DO-203AB) | -65°C ~ 200°C |
|
|
S3610DIODE GEN PURP 100V 70A DO203AB |
2,666 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 100 V | 70A | 1.25 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 25 µA @ 100 V | - | - | - | Stud Mount | DO-203AB (DO-5) | -65°C ~ 200°C |
|
|
S3720DIODE GEN PURP 200V 85A DO5 |
3,149 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 200 V | 85A | 1.15 V @ 85 A | Standard Recovery >500ns, > 200mA (Io) | - | 25 µA @ 200 V | - | - | - | Stud Mount | DO-5 (DO-203AB) | -65°C ~ 200°C |
|
|
S38120DIODE GEN PURP 1.2KV 100A DO5 |
5,746 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 1200 V | 100A | 1.15 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 25 µA @ 1200 V | - | - | - | Stud Mount | DO-5 (DO-203AB) | -65°C ~ 200°C |
|

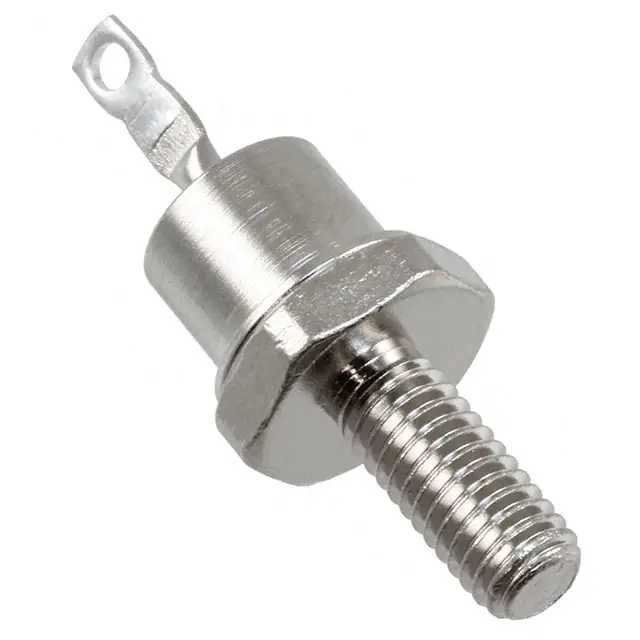

1N5814DIODE GEN PURP 100V 20A DO203AA |
8,895 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 100 V | 20A | 950 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 10 µA @ 100 V | 300pF @ 10V, 1MHz | - | - | Stud Mount | DO-203AA | -65°C ~ 175°C |
|
|
JANS1N5620USDIODE GEN PURP 800V 1A A SQ-MELF |
7,082 | - |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 800 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | - | - | Military | MIL-PRF-19500/427 | Surface Mount | A, SQ-MELF | -65°C ~ 200°C |
|
|
JANS1N5620US/TRUFR,FRR |
2,169 | - |
|
Datasheet | - | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 800 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 800 V | - | Military | MIL-PRF-19500/427 | Surface Mount | A, SQ-MELF | -65°C ~ 200°C |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
