Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JAN1N1204ADIODE GEN PURP 400V 12A DO203AA |
6,603 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 400 V | 12A | 1.35 V @ 38 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 400 V | - | Military | MIL-PRF-19500/260 | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 150°C |
|

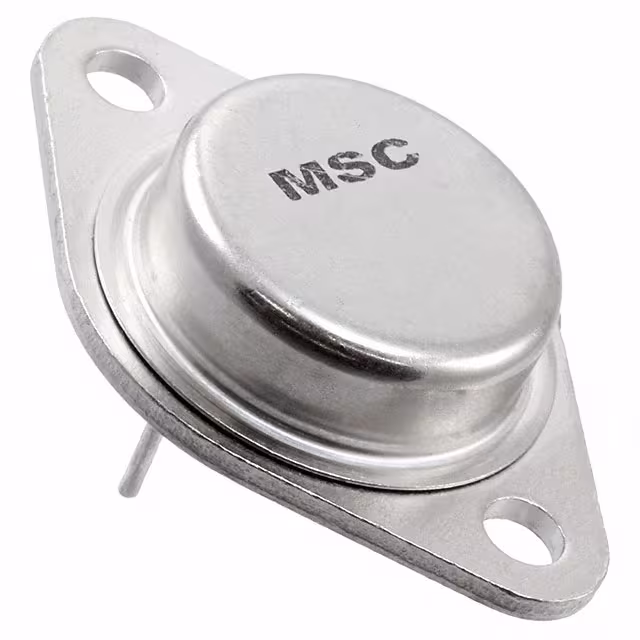

UFT3140CDIODE GEN PURP 400V 30A TO204AA |
8,769 | - |
|
Datasheet | - | TO-204AA, TO-3 | Bulk | Discontinued at Digi-Key | Standard | 400 V | 30A | 1.1 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 15 mA @ 400 V | - | - | - | Chassis Mount | TO-204AA (TO-3) | -65°C ~ 175°C |
|
|
UFT3130CDIODE GEN PURP 300V 30A TO204AA |
9,099 | - |
|
Datasheet | - | TO-204AA, TO-3 | Bulk | Active | Standard | 300 V | 30A | 1.1 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 15 µA @ 300 V | 115pF @ 10V, 1MHz | - | - | Through Hole | TO-204AA (TO-3) | -65°C ~ 175°C |
|
|
JANTX1N1188DIODE GEN PURP REV 400V 35A DO5 |
9,188 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 400 V | 35A | 1.4 V @ 110 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 400 V | - | Military | MIL-PRF-19500/297 | Stud Mount | DO-5 (DO-203AB) | -65°C ~ 175°C |
|
|
JANS1N5621DIODE GEN PURP 800V 1A A AXIAL |
8,319 | - |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 800 V | 1A | 1.6 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | - | - | Military | MIL-PRF-19500/429 | Through Hole | A, Axial | -65°C ~ 200°C |
|
|
JANS1N5622DIODE GEN PURP 1A A AXIAL |
6,650 | - |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | - | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 1000 V | - | Military | MIL-PRF-19500/427 | Through Hole | A, Axial | -65°C ~ 200°C |
|
JANS1N5622/TRDIODE GEN PURP 1A A AXIAL |
6,292 | - |
|
Datasheet | - | A, Axial | Tape & Reel (TR) | Active | Standard | - | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 1000 V | - | Military | MIL-PRF-19500/427 | Through Hole | A, Axial | -65°C ~ 200°C |
|
|
30FQ045DIODE SCHOTTKY 45V 30A DO4 |
9,512 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Schottky | 45 V | 30A | 630 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 45 V | - | - | - | Stud Mount | DO-4 (DO-203AA) | -55°C ~ 175°C |
|
|
30FQ040DIODE SCHOTTKY 40V 30A DO4 |
2,682 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Schottky | 40 V | 30A | 630 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 40 V | - | - | - | Stud Mount | DO-4 (DO-203AA) | -55°C ~ 175°C |
|
|
30FQ035DIODE SCHOTTKY 35V 30A DO4 |
6,874 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Schottky | 35 V | 30A | 630 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 35 V | - | - | - | Stud Mount | DO-4 (DO-203AA) | -55°C ~ 175°C |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
