Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg "PRLL5818,115")
|
PRLL5818,115DIODE SCHOTTKY 30V 1A MELF |
7,908 | - |
|
Datasheet | - | SOD-87 | Tape & Reel (TR) | Obsolete | Schottky | 30 V | 1A | 550 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 30 V | 50pF @ 4V, 1MHz | - | - | Surface Mount | MELF | 125°C (Max) |
|
BAW62,113DIODE GEN PURP 75V 250MA ALF2 |
3,356 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Obsolete | Standard | 75 V | 250mA | 1 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 4 ns | 5 µA @ 75 V | 2pF @ 0V, 1MHz | - | - | Through Hole | ALF2 | 200°C (Max) |
|
BAS16T,115DIODE GEN PURP 100V 155MA SC75 |
5,207 | - |
|
Datasheet | - | SC-75, SOT-416 | Tape & Reel (TR) | Obsolete | Standard | 100 V | 155mA | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 500 nA @ 80 V | 1.5pF @ 0V, 1MHz | - | - | Surface Mount | SC-75 | 150°C (Max) |
|
|
BAS116T,115DIODE GEN PURP 75V 215MA SC75 |
5,219 | - |
|
Datasheet | - | SC-75, SOT-416 | Tape & Reel (TR) | Obsolete | Standard | 75 V | 215mA | 1.25 V @ 150 mA | Standard Recovery >500ns, > 200mA (Io) | 3 µs | 5 nA @ 75 V | 2pF @ 0V, 1MHz | - | - | Surface Mount | SC-75 | 150°C (Max) |
|
|
BAT54T,115DIODE SCHOTTKY 30V 200MA SC75 |
8,405 | - |
|
Datasheet | - | SC-75, SOT-416 | Tape & Reel (TR) | Obsolete | Schottky | 30 V | 200mA | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | 10pF @ 1V, 1MHz | - | - | Surface Mount | SC-75 | 150°C (Max) |
|

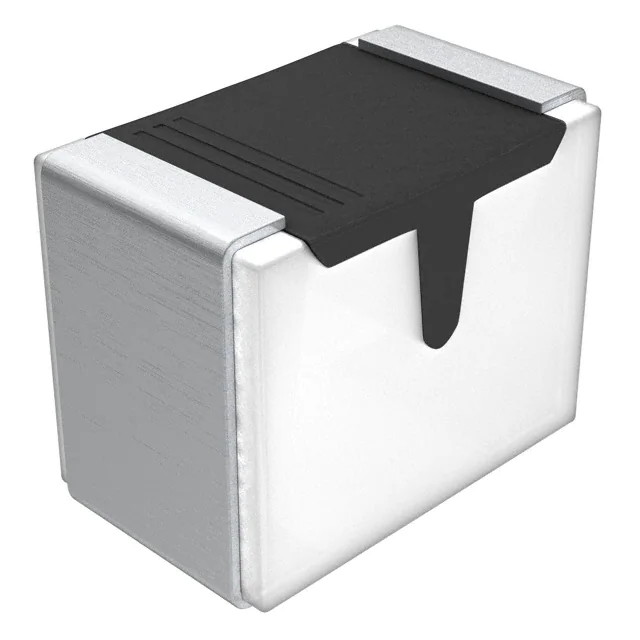

BAT254,115DIODE SCHOTTKY 30V 200MA SOD110 |
4,309 | - |
|
Datasheet | - | SOD-110 | Tape & Reel (TR) | Obsolete | Schottky | 30 V | 200mA | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | 10pF @ 1V, 1MHz | - | - | Surface Mount | SOD-110 | 125°C (Max) |
|
|
BAS216,115DIODE GEN PURP 75V 250MA SOD110 |
3,246 | - |
|
Datasheet | - | SOD-110 | Tape & Reel (TR) | Obsolete | Standard | 75 V | 250mA | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 4 ns | 1 µA @ 75 V | 1.5pF @ 0V, 1MHz | - | - | Surface Mount | SOD-110 | 150°C (Max) |
|
|
PRLL5817,115DIODE SCHOTTKY 20V 1A MELF |
2,173 | - |
|
Datasheet | - | SOD-87 | Tape & Reel (TR) | Obsolete | Schottky | 20 V | 1A | 450 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | 70pF @ 4V, 1MHz | - | - | Surface Mount | MELF | 125°C (Max) |
|
|
PRLL5819,115DIODE SCHOTTKY 40V 1A MELF |
5,406 | - |
|
Datasheet | - | SOD-87 | Tape & Reel (TR) | Obsolete | Schottky | 40 V | 1A | 600 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 40 V | 50pF @ 4V, 1MHz | - | - | Surface Mount | MELF | 125°C (Max) |
|
|
PRLL4001,115DIODE GEN PURP 50V MELF |
6,501 | - |
|
Datasheet | - | SOD-87 | Tape & Reel (TR) | Obsolete | Standard | 50 V | - | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 50 V | - | - | - | Surface Mount | MELF | -65°C ~ 175°C |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
