Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RDS82580XXDIODE GEN PURP 2.5KV 8000A |
6,567 | - |
|
Datasheet | - | DO-200AE | Bulk | Obsolete | Standard | 2500 V | 8000A | 820 mV @ 4000 A | Standard Recovery >500ns, > 200mA (Io) | 25 µs | 300 mA @ 2500 V | - | - | - | Clamp On | - | - |
|
|
PS414514DIODE GP 4.5KV 1800A POW-R-BLOK |
5,642 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | Standard | 4500 V | 1800A | - | Standard Recovery >500ns, > 200mA (Io) | 30 µs | 400 mA @ 4500 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module | -40°C ~ 150°C |
|
|
RDK85840XXDIODE DISC RD 4000A 5800V |
2,318 | - |
|
Datasheet | * | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PS415014DIODE GP 5KV 1800A POW-R-BLOK |
7,534 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | Standard | 5000 V | 1800A | - | Standard Recovery >500ns, > 200mA (Io) | 30 µs | 400 mA @ 5000 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module | -40°C ~ 150°C |
|
CS240610DIODE GP 600V 100A POW-R-BLOK |
2,482 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Obsolete | Standard | 600 V | 100A | 1.5 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | 800 ns | 20 mA @ 600 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module | - |
|
CS240650DIODE GP 600V 50A POW-R-BLOK |
5,470 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Obsolete | Standard | 600 V | 50A | 1.5 V @ 50 A | Standard Recovery >500ns, > 200mA (Io) | 800 ns | 10 mA @ 600 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module | - |
|

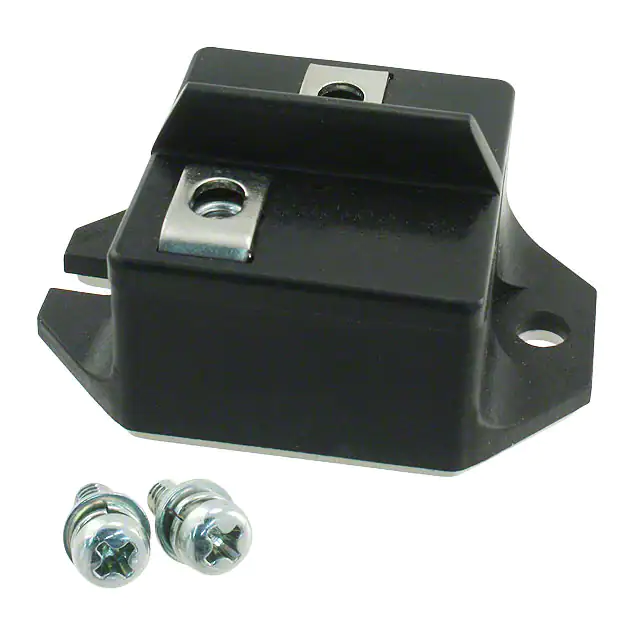

CS241210DIODE GP 1.2KV 100A POW-R-BLOK |
9,907 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Obsolete | Standard | 1200 V | 100A | 1.5 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | 800 ns | 20 mA @ 1200 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module | - |
|

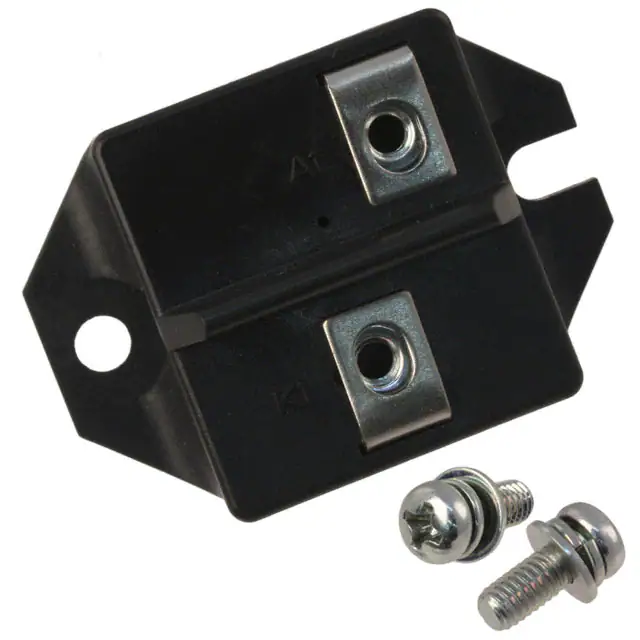

CS241250DIODE GP 1.2KV 50A POW-R-BLOK |
7,123 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Obsolete | Standard | 1200 V | 50A | 1.5 V @ 50 A | Standard Recovery >500ns, > 200mA (Io) | 800 ns | 10 mA @ 600 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module | - |
|
|
CS340602DIODE GP 600V 20A POW-R-BLOK |
3,896 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Obsolete | Standard | 600 V | 20A | 1.5 V @ 20 A | Standard Recovery >500ns, > 200mA (Io) | 800 ns | 5 mA @ 600 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module | - |
|
|
CS640525DIODE GEN PURP 500V 250A MODULE |
4,112 | - |
|
Datasheet | - | Module | Bulk | Obsolete | Standard | 500 V | 250A | 1.2 V @ 250 A | Standard Recovery >500ns, > 200mA (Io) | 650 ns | 20 mA @ 500 V | - | - | - | Chassis Mount | Module | - |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
