Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDUR6040WDIODE GEN PURP 400V 60A TO247AC |
71 | - |
|
Datasheet | - | TO-247-2 | Tube | Active | Standard | 400 V | 60A | 1.47 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 10 µA @ 400 V | - | - | - | Through Hole | TO-247AC | -55°C ~ 150°C |
|
|
SDUR60Q60WDIODE GEN PURP 600V 60A TO247AC |
115 | - |
|
Datasheet | - | TO-247-2 | Tube | Active | Standard | 600 V | 60A | 2.4 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 40 ns | 25 µA @ 600 V | - | - | - | Through Hole | TO-247AC | -55°C ~ 175°C |
|
S3D08065IDIODE SIL CARB 650V 27A TO220 |
210 | - |
|
Datasheet | - | TO-220-2 Isolated Tab | Tube | Active | SiC (Silicon Carbide) Schottky | 650 V | 27A | 1.7 V @ 8 A | No Recovery Time > 500mA (Io) | 0 ns | 10 µA @ 650 V | 650pF @ 0V, 1MHz | - | - | Through Hole | TO-220-Isolation | -55°C ~ 175°C |
|
|
S3D08065EDIODE SIL CARBIDE 650V 23A DPAK |
100 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | SiC (Silicon Carbide) Schottky | 650 V | 23A | 1.8 V @ 8 A | No Recovery Time > 500mA (Io) | 0 ns | 51 µA @ 650 V | 661pF @ 0V, 1MHz | - | - | Surface Mount | DPAK | -55°C ~ 175°C |
|
|
S4D08120ADIODE SIL CARB 1.2KV 8A TO220AC |
74 | - |
|
Datasheet | - | TO-220-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1200 V | 8A | 1.8 V @ 8 A | No Recovery Time > 500mA (Io) | 0 ns | 15 µA @ 1200 V | 560pF @ 0V, 1MHz | - | - | Through Hole | TO-220AC (TO-220-2) | -55°C ~ 175°C |
|
|
S3D20065D1DIODE SIL CARB 650V 20A TO247AD |
50 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | SiC (Silicon Carbide) Schottky | 650 V | 20A | 1.8 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 60 µA @ 650 V | 1190pF @ 0V, 1MHz | - | - | Through Hole | TO-247AD | -55°C ~ 175°C |
|
|
121SPC060ADIODE SCHOTTKY 60V 120A SPD-3A |
80 | - |
|
Datasheet | - | Nonstandard SMD | Box | Active | Schottky | 60 V | 120A | 540 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 60 V | 4800pF @ 5V, 1MHz | - | - | Surface Mount | SPD-3A | -55°C ~ 175°C |
.jpg "240NQ045-1")
|
240NQ045-1DIODE SCHOTTKY 45V PRM1-1 |
27 | - |
|
Datasheet | - | HALF-PAK | Bulk | Active | Schottky | 45 V | - | 610 mV @ 240 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 45 V | 10300pF @ 5V, 1MHz | - | - | Chassis Mount | PRM1-1 (Half Pak Module) | -55°C ~ 150°C |
|
|
243NQ100-1DIODE SCHOTTKY 100V PRM1-1 |
8 | - |
|
Datasheet | - | HALF-PAK | Bulk | Active | Schottky | 100 V | - | 860 mV @ 240 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 100 V | 5500pF @ 5V, 1MHz | - | - | Chassis Mount | PRM1-1 (Half Pak Module) | -55°C ~ 175°C |
|

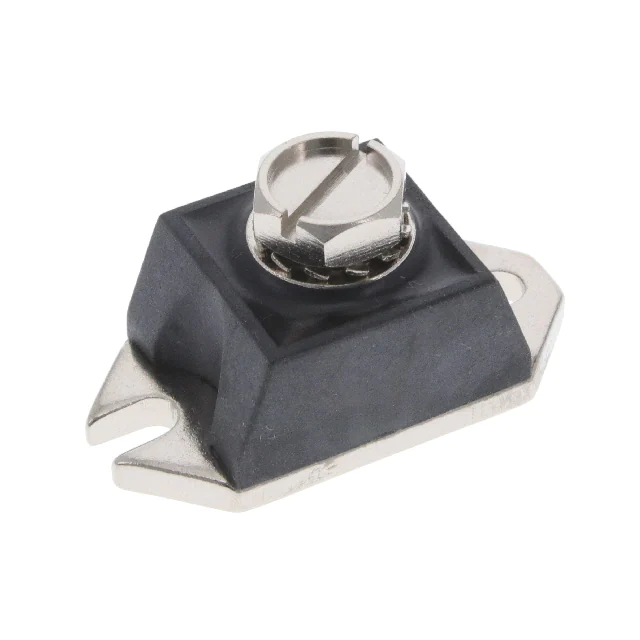

182NQ030R-1DIODE SCHOTTKY 30V 180A PRM1-1 |
44 | - |
|
Datasheet | - | HALF-PAK | Box | Active | Schottky | 30 V | 180A | 510 mV @ 180 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 15 mA @ 30 V | 7000pF @ 5V, 1MHz | - | - | Chassis Mount | PRM1-1 (Half Pak Module) | -55°C ~ 150°C |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
