Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BAQ35-GS18DIODE GP 125V 200MA SOD80 |
4,477 | - |
|
Datasheet | - | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | Standard | 125 V | 200mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | - | 1 nA @ 60 V | 3pF @ 0V, 1MHz | - | - | Surface Mount | SOD-80 MiniMELF | -65°C ~ 175°C |
|
BAS16D-HE3-18DIODE GEN PURP 75V 250MA SOD123 |
8,911 | - |
|
Datasheet | - | SOD-123 | Tape & Reel (TR) | Obsolete | Standard | 75 V | 250mA | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 6 ns | 1 µA @ 75 V | 2pF @ 0V, 1MHz | Automotive | AEC-Q101 | Surface Mount | SOD-123 | -55°C ~ 150°C |
|
BAS19-HE3-18DIODE GP 100V 200MA SOT23-3 |
5,124 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | Standard | 100 V | 200mA | 1.25 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 50 ns | 100 nA @ 100 V | 5pF @ 0V, 1MHz | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 | -55°C ~ 150°C |
|
|
BAS20-HE3-18DIODE GP 150V 200MA SOT23-3 |
4,888 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | Standard | 150 V | 200mA | 1.25 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 50 ns | 100 nA @ 150 V | 5pF @ 0V, 1MHz | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 | -55°C ~ 150°C |
|
|
BAS40-00-HE3-18DIODE SCHOTTKY 40V 200MA SOT23-3 |
7,067 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | Schottky | 40 V | 200mA | 1 V @ 50 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 100 nA @ 30 V | 5pF @ 0V, 1MHz | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 | 125°C (Max) |
|
|
BAS70-00-HE3-18DIODE SCHOTTKY 70V 200MA SOT23-3 |
2,670 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | Schottky | 70 V | 200mA | 1 V @ 50 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 100 nA @ 30 V | 2pF @ 1V, 1MHz | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 | 125°C (Max) |
|
|
BAT42W-HE3-18DIODE SCHOTTKY 30V 200MA SOD123 |
6,153 | - |
|
Datasheet | - | SOD-123 | Tape & Reel (TR) | Obsolete | Schottky | 30 V | 200mA | 650 mV @ 50 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 500 nA @ 25 V | 7pF @ 1V, 1MHz | Automotive | AEC-Q101 | Surface Mount | SOD-123 | 125°C (Max) |
|
|
BAT43W-HE3-18DIODE SCHOTTKY 30V 200MA SOD123 |
4,752 | - |
|
Datasheet | - | SOD-123 | Tape & Reel (TR) | Obsolete | Schottky | 30 V | 200mA | 450 mV @ 15 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 500 nA @ 25 V | 7pF @ 1V, 1MHz | Automotive | AEC-Q101 | Surface Mount | SOD-123 | 125°C (Max) |
|

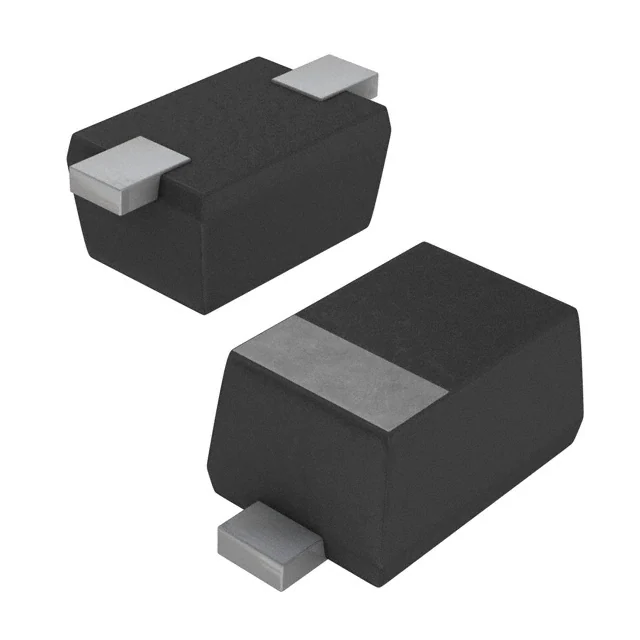

BAT54-02V-V-G-18DIODE SCHOTTKY 30V 200MA SOD523 |
3,303 | - |
|
Datasheet | BAT | SC-79, SOD-523 | Tape & Reel (TR) | Obsolete | Schottky | 30 V | 200mA | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | 10pF @ 1V, 1MHz | - | - | Surface Mount | SOD-523 | 125°C (Max) |
|
|
BAT54W-HE3-18DIODE SCHOTTKY 30V 200MA SOD123 |
8,261 | - |
|
Datasheet | - | SOD-123 | Tape & Reel (TR) | Obsolete | Schottky | 30 V | 200mA | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | 10pF @ 1V, 1MHz | Automotive | AEC-Q101 | Surface Mount | SOD-123 | 125°C (Max) |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
