Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-6EWH06FNTR-M3DIODE GEN PURP 600V 6A DPAK |
2,676 | - |
|
Datasheet | FRED Pt® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Standard | 600 V | 6A | 2.1 V @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | 27 ns | 50 µA @ 600 V | - | - | - | Surface Mount | TO-252AA (DPAK) | -65°C ~ 175°C |
|
MBR760-E3/45DIODE SCHOTTKY 60V 7.5A TO220AC |
371 | - |
|
Datasheet | - | TO-220-2 | Tube | Active | Schottky | 60 V | 7.5A | 750 mV @ 7.5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 60 V | - | - | - | Through Hole | TO-220AC | -65°C ~ 175°C |
|
VS-HFA08TB120S-M3DIODE GEN PURP 1.2KV 8A TO263AB |
4,881 | - |
|
Datasheet | HEXFRED® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | Standard | 1200 V | 8A | 4.3 V @ 16 A | Fast Recovery =< 500ns, > 200mA (Io) | 95 ns | 10 µA @ 1200 V | - | - | - | Surface Mount | TO-263AB (D2PAK) | -55°C ~ 150°C |
|
SS15P3S-M3/87ADIODE SCHOTTKY 30V 15A TO277A |
6,594 | - |
|
Datasheet | eSMP® | TO-277, 3-PowerDFN | Tape & Reel (TR) | Active | Schottky | 30 V | 15A | 570 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 30 V | - | - | - | Surface Mount | TO-277A (SMPC) | 200°C (Max) |
|

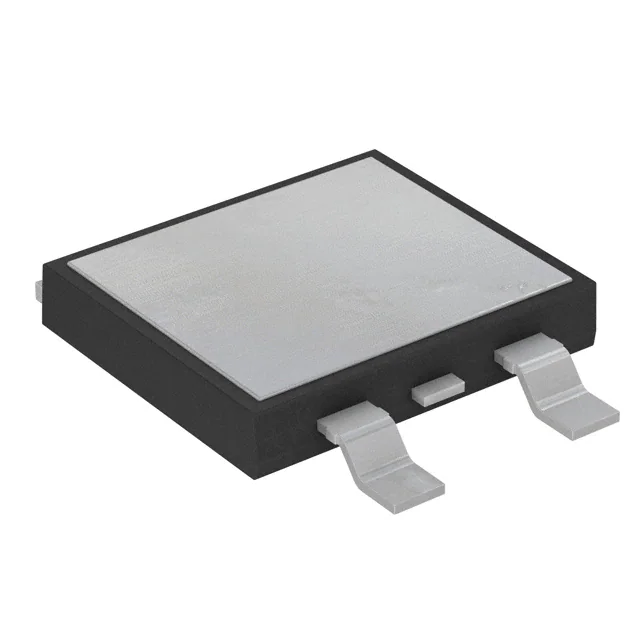

V30DL45BP-M3/IDIODE SCHOTTKY 45V 30A SMPD |
6,314 | - |
|
Datasheet | eSMP®, TMBS® | TO-263-3, D2PAK (2 Leads + Tab), Variant | Tape & Reel (TR) | Active | Schottky | 45 V | 30A | 650 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 45 V | - | - | - | Surface Mount | SMPD | -40°C ~ 150°C |
|
|
VS-8EWX06FN-M3DIODE GEN PURP 600V 8A TO252 |
3,507 | - |
|
Datasheet | FRED Pt® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Active | Standard | 600 V | 8A | 3 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 17 ns | 50 µA @ 600 V | - | - | - | Surface Mount | TO-252AA (DPAK) | -65°C ~ 175°C |
|
|
VS-8EWH06FN-M3DIODE GEN PURP 600V 8A DPAK |
3,000 | - |
|
Datasheet | FRED Pt® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Active | Standard | 600 V | 8A | 2.4 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 50 µA @ 600 V | - | - | - | Surface Mount | TO-252AA (DPAK) | -65°C ~ 175°C |
|
|
VS-15EWL06FN-M3DIODE GEN PURP 600V 15A DPAK |
2,725 | - |
|
Datasheet | FRED Pt® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Active | Standard | 600 V | 15A | 1.05 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 220 ns | 10 µA @ 600 V | - | - | - | Surface Mount | TO-252AA (DPAK) | -65°C ~ 175°C |
|
|
SS15P3S-M3/86ADIODE SCHOTTKY 30V 15A TO277A |
725 | - |
|
Datasheet | eSMP® | TO-277, 3-PowerDFN | Tape & Reel (TR) | Active | Schottky | 30 V | 15A | 570 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 30 V | - | - | - | Surface Mount | TO-277A (SMPC) | 200°C (Max) |
|
|
V15P45-M3/86ADIODE SCHOTTKY 45V 4.8A TO277A |
9,677 | - |
|
Datasheet | eSMP®, TMBS® | TO-277, 3-PowerDFN | Tape & Reel (TR) | Active | Schottky | 45 V | 4.8A | 580 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 45 V | - | - | - | Surface Mount | TO-277A (SMPC) | -40°C ~ 150°C |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
