Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

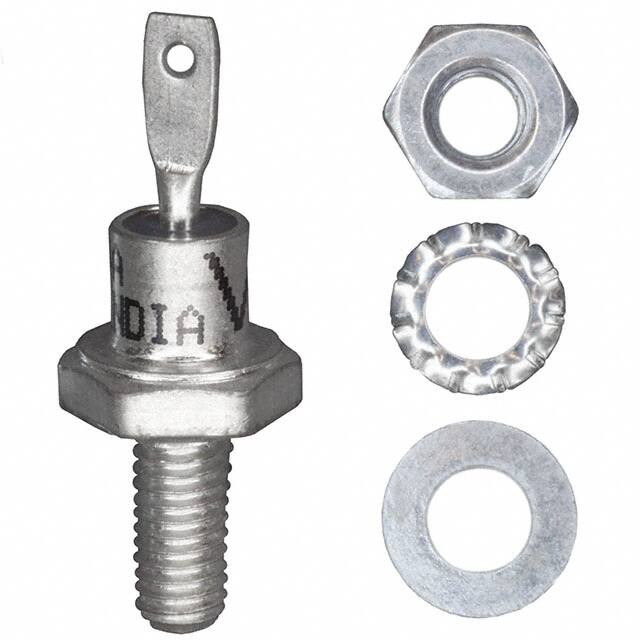

VS-1N1204ADIODE GEN PURP 400V 12A DO203AA |
80 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 400 V | 12A | 1.35 V @ 12 A | Standard Recovery >500ns, > 200mA (Io) | - | 1.5 mA @ 400 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 200°C |
|

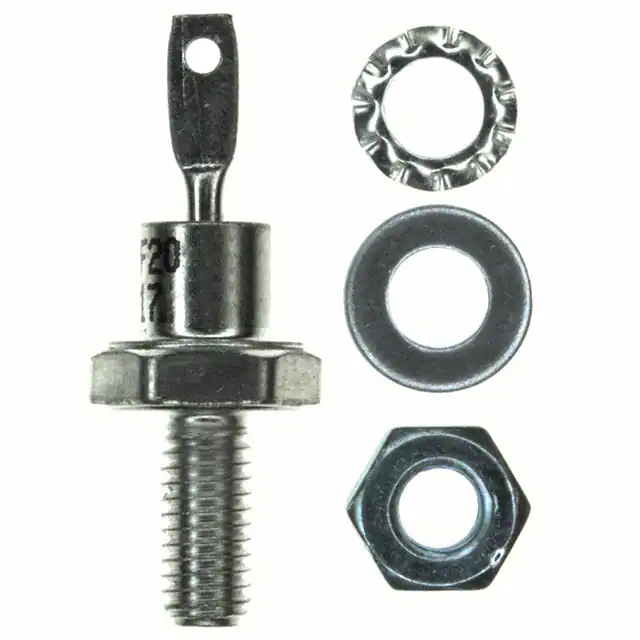

VS-12F20DIODE GEN PURP 200V 12A DO203AA |
73 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 200 V | 12A | 1.26 V @ 38 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 200 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
VS-12FR60DIODE GEN PURP 600V 12A DO203AA |
45 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 600 V | 12A | 1.26 V @ 38 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 600 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|

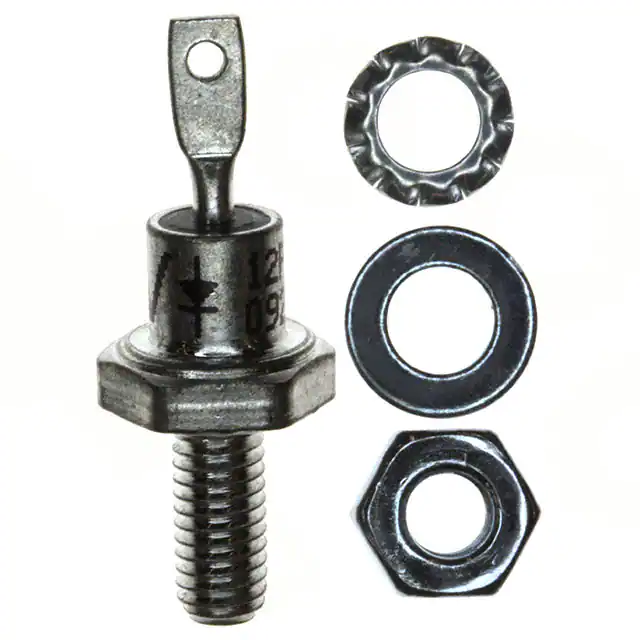

VS-12F60DIODE GEN PURP 600V 12A DO203AA |
100 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 600 V | 12A | 1.26 V @ 38 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 600 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
VS-25F40DIODE GEN PURP 400V 25A DO203AA |
69 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 400 V | 25A | 1.3 V @ 78 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 400 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
VS-1N1206ADIODE GEN PURP 600V 12A DO203AA |
74 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 600 V | 12A | 1.35 V @ 12 A | Standard Recovery >500ns, > 200mA (Io) | - | 1 mA @ 600 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 200°C |
|

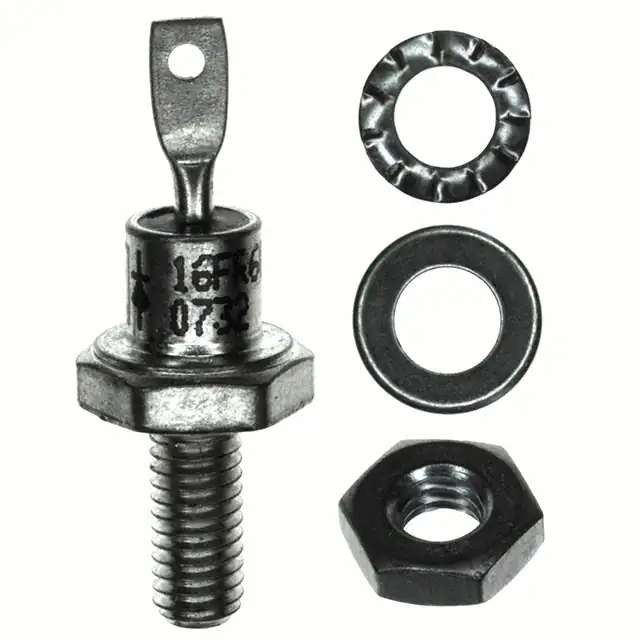

VS-16FR60DIODE GEN PURP 600V 16A DO203AA |
60 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 600 V | 16A | 1.23 V @ 50 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 600 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
VS-1N1183RDIODE GEN PURP 50V 35A DO203AB |
63 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 50 V | 35A | 1.7 V @ 110 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 50 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 190°C |
40,80,120(W)-Series.jpg "VS-80PFR80W")
|
VS-80PFR80WDIODE GP REV 800V 80A DO203AB |
87 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 800 V | 80A | 1.4 V @ 220 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Stud Mount | DO-203AB (DO-5) | -55°C ~ 180°C |
|
VS-80PF80WDIODE GEN PURP 800V 80A DO203AB |
75 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 800 V | 80A | 1.4 V @ 220 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Stud Mount | DO-203AB (DO-5) | -55°C ~ 180°C |
