Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-71HFLR100S05DIODE GP REV 1KV 70A DO203AB |
5,935 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 1000 V | 70A | 1.35 V @ 220 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 180°C |
|

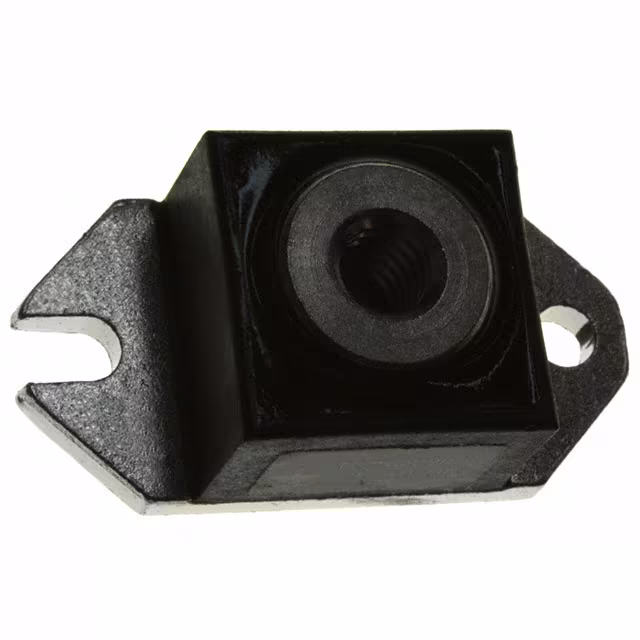

123NQ080DIODE SCHOTTKY 80V 120A D-67 |
9,838 | - |
|
Datasheet | - | D-67 HALF-PAK | Bulk | Obsolete | Schottky | 80 V | 120A | 910 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 80 V | 2650pF @ 5V, 1MHz | - | - | Chassis Mount | D-67 HALF-PAK | - |
|
VS-86HF160DIODE GEN PURP 1.6KV 85A DO203AB |
8,026 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 1600 V | 85A | 1.4 V @ 267 A | Standard Recovery >500ns, > 200mA (Io) | - | 4.5 mA @ 1600 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 150°C |
|
|
VS-70HF140MDIODE GEN PURP 1.4KV 70A DO203AB |
4,991 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 1400 V | 70A | 1.46 V @ 220 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 150°C |
|
|
VS-70HFR140MDIODE GP REV 1.4KV 70A DO203AB |
6,880 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 1400 V | 70A | 1.46 V @ 220 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 150°C |
|
|
VS-70HFR160MDIODE GP REV 1.6KV 70A DO203AB |
9,426 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 1600 V | 70A | 1.46 V @ 220 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 150°C |
|
|
1N3292DIODE GEN PURP 500V 100A DO205AA |
8,489 | - |
|
Datasheet | - | DO-205AA, DO-8, Stud | Bulk | Obsolete | Standard | 500 V | 100A | 1.5 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | 21 mA @ 500 V | - | - | - | Chassis, Stud Mount | DO-205AA (DO-8) | -40°C ~ 200°C |
|
|
249NQ135DIODE SCHOTTKY 135V 240A D-67 |
7,707 | - |
|
Datasheet | - | D-67 HALF-PAK | Bulk | Obsolete | Schottky | 135 V | 240A | 1.07 V @ 240 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 135 V | 6000pF @ 5V, 1MHz | - | - | Chassis Mount | D-67 HALF-PAK | - |
|
|
1N3293DIODE GEN PURP 600V 100A DO205AA |
4,189 | - |
|
Datasheet | - | DO-205AA, DO-8, Stud | Bulk | Obsolete | Standard | 600 V | 100A | 1.5 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | 17 mA @ 600 V | - | - | - | Chassis, Stud Mount | DO-205AA (DO-8) | -40°C ~ 200°C |
|
|
1N3293RDIODE GEN PURP 600V 100A DO205AA |
4,747 | - |
|
Datasheet | - | DO-205AA, DO-8, Stud | Bulk | Obsolete | Standard | 600 V | 100A | 1.5 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | 17 mA @ 600 V | - | - | - | Chassis, Stud Mount | DO-205AA (DO-8) | -40°C ~ 200°C |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
