Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
121NQ045RDIODE SCHOTTKY 45V 120A D-67 |
6,170 | - |
|
Datasheet | - | D-67 HALF-PAK | Bulk | Obsolete | Schottky | 45 V | 120A | 650 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 45 V | 5200pF @ 5V, 1MHz | - | - | Chassis Mount | D-67 HALF-PAK | - |
|
|
121NQ035DIODE SCHOTTKY 35V 120A D-67 |
9,230 | - |
|
Datasheet | - | D-67 HALF-PAK | Bulk | Obsolete | Schottky | 35 V | 120A | 650 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 35 V | 5200pF @ 5V, 1MHz | - | - | Chassis Mount | D-67 HALF-PAK | - |
|
|
HFA90NH40DIODE GEN PURP 400V 90A D-67 |
2,514 | - |
|
Datasheet | HEXFRED® | D-67 HALF-PAK | Bulk | Obsolete | Standard | 400 V | 90A | 1.3 V @ 90 A | Fast Recovery =< 500ns, > 200mA (Io) | 140 ns | 6 µA @ 400 V | - | - | - | Chassis Mount | D-67 HALF-PAK | - |
|

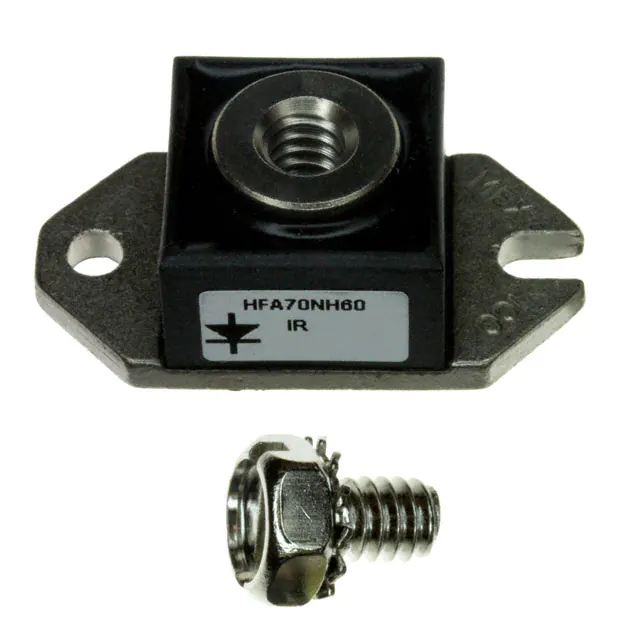

HFA70NH60DIODE GEN PURP 600V 70A D-67 |
3,123 | - |
|
Datasheet | HEXFRED® | D-67 HALF-PAK | Bulk | Obsolete | Standard | 600 V | 70A | 1.5 V @ 70 A | Fast Recovery =< 500ns, > 200mA (Io) | 120 ns | 20 µA @ 600 V | - | - | - | Chassis Mount | D-67 HALF-PAK | - |
|
|
VS-40HFL100S05MDIODE GEN PURP 1KV 40A DO203AB |
4,055 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 1000 V | 40A | 1.95 V @ 125.6 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -40°C ~ 125°C |
|
|
VS-40HFL80S05MDIODE GEN PURP 800V 40A DO203AB |
6,690 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 800 V | 40A | 1.3 V @ 125 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 190°C |
|
|
VS-40HFLR100S05MDIODE GP REV 1KV 40A DO203AB |
3,288 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 1000 V | 40A | 1.3 V @ 125 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 190°C |
|
|
VS-40HFLR80S05MDIODE GP REV 800V 40A DO203AB |
2,369 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 800 V | 40A | 1.3 V @ 125 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 190°C |
|
|
VS-70HFL100S05MDIODE GEN PURP 1KV 70A DO203AB |
7,983 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 1000 V | 70A | 1.85 V @ 219.8 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -40°C ~ 125°C |
|
|
VS-70HFLR40S05MDIODE GP REV 400V 70A DO203AB |
6,809 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 400 V | 70A | 1.85 V @ 219.8 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -40°C ~ 125°C |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
