Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-8TQ100SPBFDIODE SCHOTTKY 100V 8A TO263AB |
9,047 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Discontinued at Digi-Key | Schottky | 100 V | 8A | 720 mV @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 550 µA @ 100 V | 500pF @ 5V, 1MHz | - | - | Surface Mount | TO-263AB (D2PAK) | -55°C ~ 175°C |
|
|
VS-8TQ080SPBFDIODE SCHOTTKY 80V 8A TO263AB |
7,722 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Discontinued at Digi-Key | Schottky | 80 V | 8A | 720 mV @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 550 µA @ 80 V | 500pF @ 5V, 1MHz | - | - | Surface Mount | TO-263AB (D2PAK) | -55°C ~ 175°C |
|
|
VS-19TQ015SPBFDIODE SCHOTTKY 15V 19A TO263AB |
9,470 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Discontinued at Digi-Key | Schottky | 15 V | 19A | 360 mV @ 19 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 15 V | - | - | - | Surface Mount | TO-263AB (D2PAK) | -55°C ~ 125°C |
|
VS-HFA25TB60PBFDIODE GEN PURP 600V 25A TO220AC |
6,185 | - |
|
Datasheet | HEXFRED® | TO-220-2 | Tube | Discontinued at Digi-Key | Standard | 600 V | 25A | 1.7 V @ 25 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 20 µA @ 600 V | - | - | - | Through Hole | TO-220AC | -55°C ~ 150°C |
|

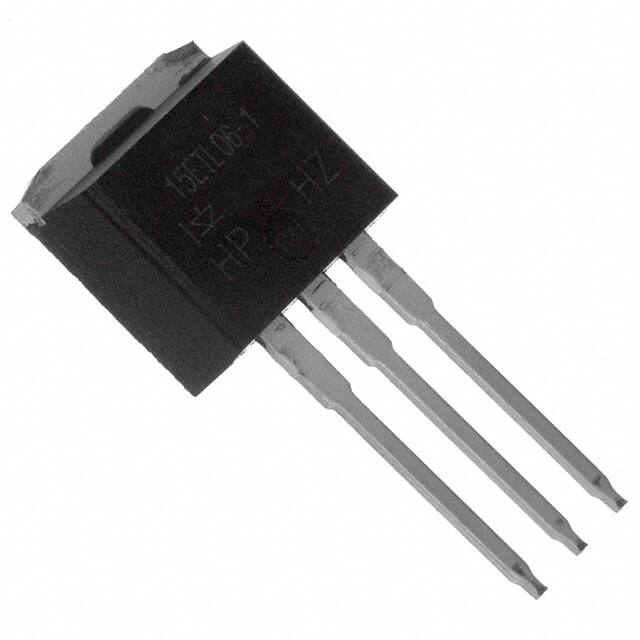

VS-15ETL06-1PBFDIODE GEN PURP 600V 15A TO262-3 |
8,515 | - |
|
Datasheet | FRED Pt® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Discontinued at Digi-Key | Standard | 600 V | 15A | 1.05 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 270 ns | 10 µA @ 600 V | - | - | - | Through Hole | TO-262-3 | - |
|
|
VS-HFA04TB60PBFDIODE GEN PURP 600V 4A TO220AC |
6,019 | - |
|
Datasheet | HEXFRED® | TO-220-2 | Tube | Discontinued at Digi-Key | Standard | 600 V | 4A | 1.8 V @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 42 ns | 3 µA @ 600 V | - | - | - | Through Hole | TO-220AC | -55°C ~ 150°C |
|
|
VS-HFA08TB120PBFDIODE GEN PURP 1.2KV 8A TO220AC |
2,552 | - |
|
Datasheet | HEXFRED® | TO-220-2 | Tube | Discontinued at Digi-Key | Standard | 1200 V | 8A | 3.3 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 95 ns | 10 µA @ 1200 V | - | - | - | Through Hole | TO-220AC | -55°C ~ 150°C |
|
|
VS-HFA16TB120PBFDIODE GEN PURP 1.2KV 16A TO220AC |
8,703 | - |
|
Datasheet | HEXFRED® | TO-220-2 | Tube | Discontinued at Digi-Key | Standard | 1200 V | 16A | 3 V @ 16 A | Fast Recovery =< 500ns, > 200mA (Io) | 135 ns | 20 µA @ 1200 V | - | - | - | Through Hole | TO-220AC | -55°C ~ 150°C |
|
VS-10BQ015PBFDIODE SCHOTTKY 15V 1A DO214AA |
9,659 | - |
|
Datasheet | - | DO-214AA, SMB | Bulk | Obsolete | Schottky | 15 V | 1A | 350 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 15 V | - | - | - | Surface Mount | DO-214AA (SMB) | -55°C ~ 125°C |
|
|
VS-10BQ030PBFDIODE SCHOTTKY 30V 1A DO214AA |
7,898 | - |
|
Datasheet | - | DO-214AA, SMB | Bulk | Obsolete | Schottky | 30 V | 1A | 420 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 30 V | - | - | - | Surface Mount | DO-214AA (SMB) | -55°C ~ 150°C |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
