Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BY228GP-E3/54DIODE GP 1.5KV 2.5A DO201AD |
5,804 | - |
|
Datasheet | SUPERECTIFIER® | DO-201AD, Axial | Tape & Reel (TR) | Active | Standard | 1500 V | 2.5A | 1.6 V @ 2.5 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 5 µA @ 1500 V | 40pF @ 4V, 1MHz | - | - | Through Hole | DO-201AD | -65°C ~ 150°C |
|
VS-20L15TS-M3DIODE SCHOTTKY 15V 20A TO263AB |
560 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | Schottky | 15 V | 20A | 410 mV @ 19 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 15 V | 2000pF @ 5V, 1MHz | - | - | Surface Mount | TO-263AB (D2PAK) | -55°C ~ 125°C |
|
V30100S-M3/4WDIODE SCHOTTKY 100V 30A TO220-3 |
8,000 | - |
|
Datasheet | TMBS® | TO-220-3 | Tube | Active | Schottky | 100 V | 30A | 1 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 350 µA @ 100 V | - | - | - | Through Hole | TO-220-3 | -40°C ~ 150°C |
|
VS-HFA04SD60S-M3DIODE GEN PURP 600V 4A DPAK |
1,286 | - |
|
Datasheet | HEXFRED® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Active | Standard | 600 V | 4A | 1.8 V @ 4 A | - | - | 3 µA @ 600 V | - | - | - | Surface Mount | TO-252AA (DPAK) | -55°C ~ 150°C |
|
VS-ETH3007-M3DIODE GEN PURP 650V 30A TO220AC |
622 | - |
|
Datasheet | FRED Pt® | TO-220-2 | Tube | Active | Standard | 650 V | 30A | 2.1 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 37 ns | 30 µA @ 650 V | - | - | - | Through Hole | TO-220AC | -55°C ~ 175°C |
|
|
VS-8EWF12SLHM3DIODE GEN PURP 1.2KV 8A DPAK |
792 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Standard | 1200 V | 8A | 1.3 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 270 ns | 100 µA @ 1200 V | - | Automotive | AEC-Q101 | Surface Mount | TO-252AA (DPAK) | -40°C ~ 150°C |
|
VS-15ETH06FP-N3DIODE GP 600V 15A TO220-2FP |
383 | - |
|
Datasheet | FRED Pt® | TO-220-2 Full Pack | Tube | Active | Standard | 600 V | 15A | 2.2 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 29 ns | 40 µA @ 600 V | - | - | - | Through Hole | TO-220-2 Full Pack | -65°C ~ 175°C |
|
|
VBT4045BP-E3/8WDIODE SCHOTTKY 45V 40A TO263AB |
12,534 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | Schottky | 45 V | 40A | 670 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 45 V | - | - | - | Surface Mount | TO-263AB (D2PAK) | 200°C (Max) |
|

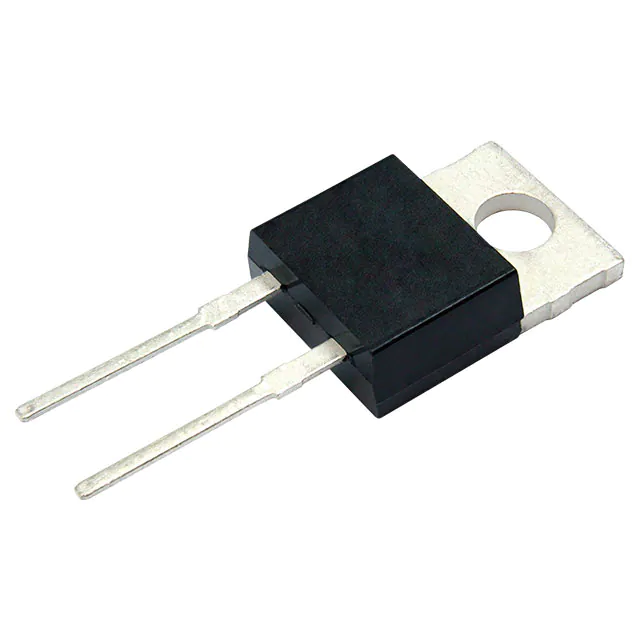

VS-E5TH3006-M3DIODE GEN PURP 600V 30A TO220AC |
5,784 | - |
|
Datasheet | FRED Pt® | TO-220-2 | Tube | Active | Standard | 600 V | 30A | 1.6 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 46 ns | 20 µA @ 600 V | - | - | - | Through Hole | TO-220AC | -55°C ~ 175°C |
|
|
VS-ETH3006-M3DIODE GEN PURP 600V 30A TO220AC |
3,296 | - |
|
Datasheet | FRED Pt® | TO-220-2 | Tube | Active | Standard | 600 V | 30A | 2.65 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 26 ns | 30 µA @ 600 V | - | - | - | Through Hole | TO-220AC | -65°C ~ 175°C |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
