Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPS5819E3/TR7DIODE SCHOTTKY 40V 1A POWERMITE1 |
28,124 | - |
|
Datasheet | - | DO-216AA | Tape & Reel (TR) | Active | Schottky | 40 V | 1A | 550 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 40 V | 60pF @ 5V, 1MHz | - | - | Surface Mount | Powermite 1 (DO216-AA) | -55°C ~ 150°C |
|
1N6642UDIODE GEN PURP 75V 300MA D-5D |
445 | - |
|
Datasheet | - | SQ-MELF, D | Bulk | Active | Standard | 75 V | 300mA | 800 mV @ 10 mA | Fast Recovery =< 500ns, > 200mA (Io) | 5 ns | 500 µA @ 75 V | - | - | - | Surface Mount | D-5D | -65°C ~ 175°C |
|
APT10SCD120KDIODE SIL CARB 1.2KV 10A TO220 |
297 | - |
|
Datasheet | - | TO-220-2 | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 1200 V | 10A | 1.5 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | - | - | - | - | Through Hole | TO-220-2 | - |
|
1N5806/TRDIODE GEN PURP 150V 2.5A APAK |
26 | - |
|
Datasheet | - | A, Axial | Tape & Reel (TR) | Active | Standard | 150 V | 2.5A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 150 V | - | - | - | Through Hole | A, Axial | -65°C ~ 175°C |
|

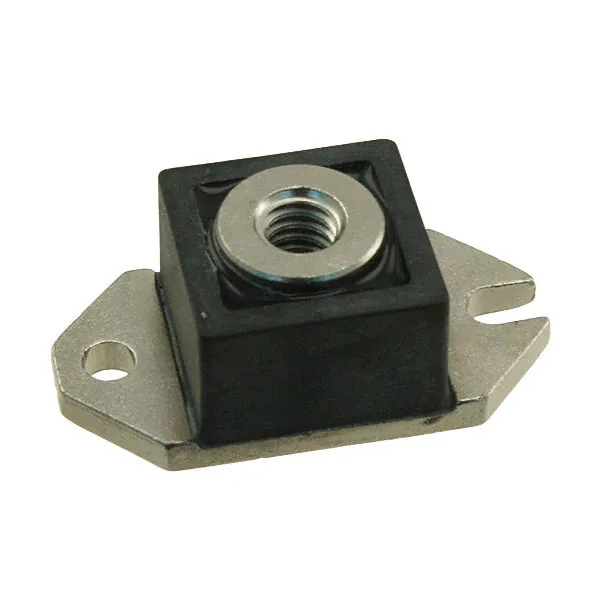

HU20260DIODE GP 600V 200A HALF-PAK |
3 | - |
|
Datasheet | - | HALF-PAK | Bulk | Obsolete | Standard | 600 V | 200A | 1.35 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | 130 ns | 50 µA @ 600 V | - | - | - | Chassis Mount | HALF-PAK | - |
|
|
UMA5817-T7DIODE SCHOTTKY 20V 1A ULTRAMITE |
4,789 | - |
|
Datasheet | - | Ultramite™ | Tape & Reel (TR) | Obsolete | Schottky | 20 V | 1A | 450 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 20 V | - | - | - | Surface Mount | Ultramite™ | -50°C ~ 125°C |
|
|
UMA5818DIODE SCHOTTKY 30V 1A ULTRAMITE |
7,574 | - |
|
Datasheet | - | Ultramite™ | Tape & Reel (TR) | Obsolete | Schottky | 30 V | 1A | 550 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 30 V | - | - | - | Surface Mount | Ultramite™ | -50°C ~ 125°C |
|
|
LSM115JDIODE SCHOTTKY 15V 1A DO214BA |
8,416 | - |
|
Datasheet | - | DO-214BA | Tape & Reel (TR) | Obsolete | Schottky | 15 V | 1A | 220 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 15 V | - | - | - | Surface Mount | DO-214BA | -55°C ~ 100°C |
|
|
5817SMGE3/TR13DIODE SCHOTTKY 20V 1A DO215AA |
7,506 | - |
|
Datasheet | - | DO-215AA, SMB Gull Wing | Tape & Reel (TR) | Obsolete | Schottky | 20 V | 1A | 450 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | - | - | - | Surface Mount | DO-215AA | -55°C ~ 150°C |
|
|
5818SMGE3/TR13DIODE SCHOTTKY 30V 1A DO215AA |
8,384 | - |
|
Datasheet | - | DO-215AA, SMB Gull Wing | Tape & Reel (TR) | Obsolete | Schottky | 30 V | 1A | 550 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 30 V | - | - | - | Surface Mount | DO-215AA | -55°C ~ 150°C |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
