Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMDD6263 TR PBFREEDIODE SCHOTTKY 70V 15MA SOD323 |
5,925 | - |
|
Datasheet | - | SC-76, SOD-323 | Tape & Reel (TR) | Active | Schottky | 70 V | 15mA | 410 mV @ 1 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 200 nA @ 50 V | 2pF @ 0V, 1MHz | - | - | Surface Mount | SOD-323 | -65°C ~ 150°C |
|
CMSH2-40L TR13DIODE SCHOTTKY 40V 2A SMB |
4,353 | - |
|
Datasheet | - | DO-214AA, SMB | Tape & Reel (TR) | Obsolete | Schottky | 40 V | 2A | 400 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 40 V | 150pF @ 4V, 1MHz | - | - | Surface Mount | SMB | -65°C ~ 150°C |
|
CN645 TRDIODE GEN PURP 225V 400MA DO41 |
2,591 | - |
|
Datasheet | - | DO-204AL, DO-41, Axial | Tape & Reel (TR) | Obsolete | Standard | 225 V | 400mA | 1 V @ 400 mA | Standard Recovery >500ns, > 200mA (Io) | - | 200 nA @ 225 V | 11pF @ 12V, 1MHz | - | - | Through Hole | DO-41 | -65°C ~ 150°C |
|
CMR3U-04M TR13 PBFREEDIODE GEN PURP 400V 3A SMC |
7,167 | - |
|
Datasheet | - | DO-214AB, SMC | Tape & Reel (TR) | Active | Standard | 400 V | 3A | 1.25 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 5 µA @ 400 V | - | - | - | Surface Mount | SMC | -65°C ~ 175°C |
|
|
CMR5U-02 TR13 PBFREEDIODE GEN PURP 200V 5A SMC |
8,611 | - |
|
Datasheet | - | DO-214AB, SMC | Tape & Reel (TR) | Active | Standard | 200 V | 5A | 1.7 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 22 ns | 1 µA @ 600 V | 17pF @ 4V, 1MHz | - | - | Surface Mount | SMC | -65°C ~ 175°C |
|
CMPD6001 BK PBFREEDIODE GEN PURP 75V 250MA SOT23 |
6,564 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | Standard | 75 V | 250mA | 1.1 V @ 100 mA | Standard Recovery >500ns, > 200mA (Io) | 3 µs | 500 pA @ 75 V | 2pF @ 0V, 1MHz | - | - | Surface Mount | SOT-23 | -65°C ~ 150°C |
|
|
CMR3-10 BK PBFREEDIODE GEN PURP 1KV 3A SMC |
9,202 | - |
|
Datasheet | - | DO-214AB, SMC | Bulk | Active | Standard | 1000 V | 3A | 1.2 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1000 V | - | - | - | Surface Mount | SMC | -65°C ~ 175°C |
|

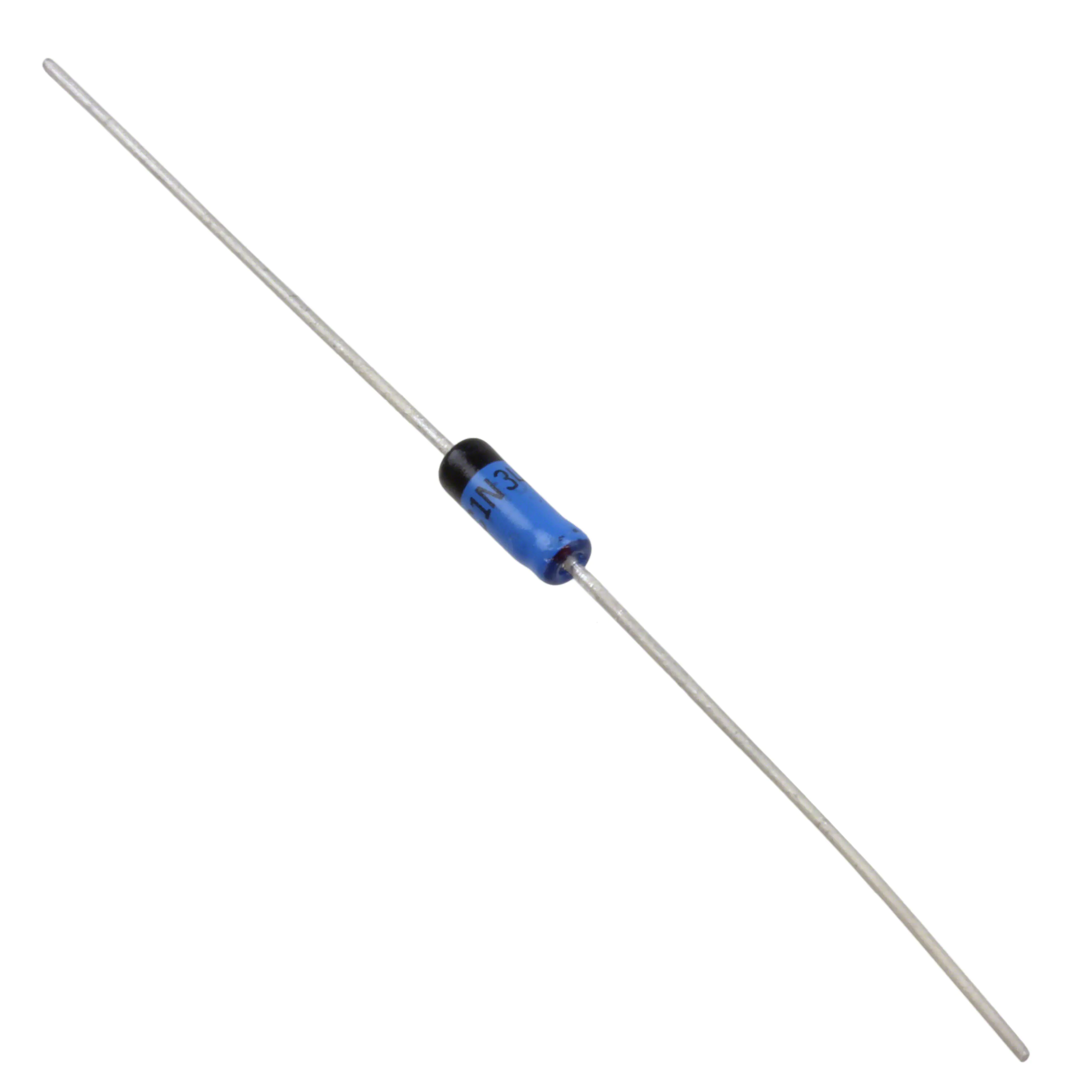

1N34A BKDIODE GEN PURP 75V 50MA DO7 |
3,946 | - |
|
Datasheet | - | DO-204AA, DO-7, Axial | Bulk | Obsolete | Standard | 75 V | 50mA | 1 V @ 5 mA | Small Signal =< 200mA (Io), Any Speed | - | 500 µA @ 50 V | - | - | - | Through Hole | DO-7 | -55°C ~ 75°C |
|
BAV45DIODE GEN PURP 20V 50MA TO18 |
8,712 | - |
|
Datasheet | - | TO-18-2 | Bulk | Obsolete | Standard | 20 V | 50mA | 1 V @ 10 mA | Small Signal =< 200mA (Io), Any Speed | 600 ns | 5 pA @ 5 V | 1.3pF @ 0V, 1MHz | - | - | Through Hole | TO-18 | -65°C ~ 125°C |
|
CSICD05-1200 TR13DIODE SIL CARBIDE 1.2KV 5A DPAK |
2,147 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | SiC (Silicon Carbide) Schottky | 1200 V | 5A | 1.7 V @ 5 A | No Recovery Time > 500mA (Io) | 0 ns | 190 µA @ 1200 V | 240pF @ 1V, 1MHz | - | - | Surface Mount | DPAK | -55°C ~ 175°C |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
