Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDBU00340DIODE SCHOTTKY 40V 30MA 0603C |
600,220 | - |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | Schottky | 40 V | 30mA | 370 mV @ 1 mA | Small Signal =< 200mA (Io), Any Speed | - | 1 µA @ 40 V | 1.5pF @ 1V, 1MHz | - | - | Surface Mount | 0603C/SOD-523F | 125°C (Max) |
|

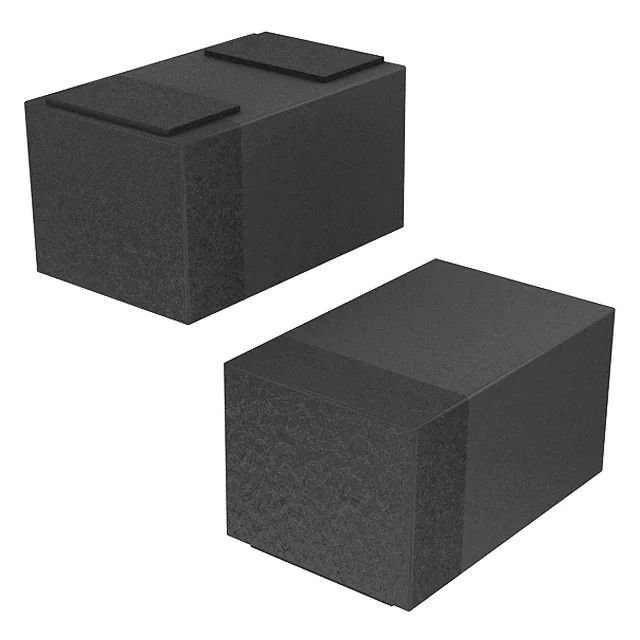

CDSQR4148DIODE GEN PURP 75V 150MA 0402 |
421,102 | - |
|
Datasheet | - | 0402 (1006 Metric) | Tape & Reel (TR) | Not For New Designs | Standard | 75 V | 150mA | 1 V @ 50 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 2.5 µA @ 75 V | 4pF @ 0V, 1MHz | - | - | Surface Mount | 0402/SOD-923F | 125°C (Max) |
|
CDBU0520DIODE SCHOTTKY 20V 500MA 0603 |
80,912 | - |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | Schottky | 20 V | 500mA | 470 mV @ 500 mA | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 20 V | 100pF @ 0V, 1MHz | - | - | Surface Mount | 0603/SOD-523F | 125°C (Max) |
|
CGRA4001-GDIODE GEN PURP 50V 1A DO214AC |
78,503 | - |
|
Datasheet | - | DO-214AC, SMA | Tape & Reel (TR) | Active | Standard | 50 V | 1A | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 50 V | - | - | - | Surface Mount | DO-214AC (SMA) | -55°C ~ 150°C |
|
CDBQR40DIODE SCHOTTKY 40V 200MA 0402 |
67,227 | - |
|
Datasheet | - | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Schottky | 40 V | 200mA | 1 V @ 40 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 200 nA @ 30 V | 5pF @ 0V, 1MHz | - | - | Surface Mount | 0402/SOD-923F | 125°C (Max) |
|
|
SS34-HFDIODE SCHOTTKY 40V 3A DO214AC |
60,517 | - |
|
Datasheet | - | DO-214AC, SMA | Tape & Reel (TR) | Active | Schottky | 40 V | 3A | 550 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 40 V | 450pF @ 4V, 1MHz | - | - | Surface Mount | DO-214AC (SMA) | -55°C ~ 125°C |
|
|
CDBU0245-HFDIODE SCHOTTKY 45V 200MA 0603C |
48,015 | - |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | Schottky | 45 V | 200mA | 550 mV @ 200 mA | Small Signal =< 200mA (Io), Any Speed | - | 1 µA @ 10 V | 9pF @ 10V, 1MHz | - | - | Surface Mount | 0603C/SOD-523F | -40°C ~ 125°C |
|
|
ACDBA3100-HFDIODE SCHOTTKY 100V 3A DO214AC |
27,143 | - |
|
Datasheet | - | DO-214AC, SMA | Tape & Reel (TR) | Active | Schottky | 100 V | 3A | 850 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 100 V | 100pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) | -55°C ~ 150°C |
|
|
CDBU00340-HFDIODE SCHOTTKY 40V 30MA 0603 |
44,177 | - |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | Schottky | 40 V | 30mA | 370 mV @ 1 mA | Small Signal =< 200mA (Io), Any Speed | - | 1 µA @ 40 V | 1.5pF @ 1V, 1MHz | - | - | Surface Mount | 0603/SOD-523F | 125°C (Max) |
|
CGRM4005-GDIODE GP 600V 1A MINI SMA/SOD123 |
34,876 | - |
|
Datasheet | - | SOD-123T | Tape & Reel (TR) | Not For New Designs | Standard | 600 V | 1A | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 600 V | 15pF @ 4V, 1MHz | - | - | Surface Mount | Mini SMA/SOD-123 | -55°C ~ 150°C |
