Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

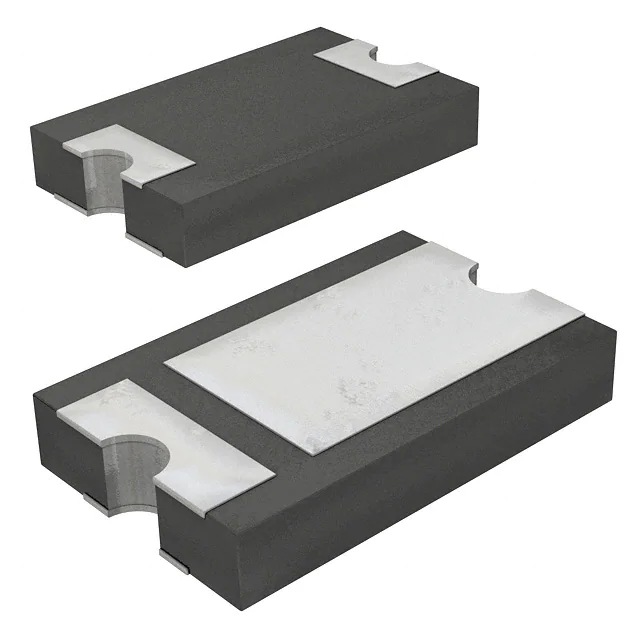

CDBZ5T1045-HFDIODE SCHOTTKY 45V 10A SMC |
263 | - |
|
Datasheet | - | Z5-T | Tape & Reel (TR) | Obsolete | Schottky | 45 V | 10A | 550 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 45 V | - | - | - | Surface Mount | SMC (Z5-T) | -55°C ~ 150°C |
|
CDBJFSC5650-GDIODE SIL CARBIDE 650V 5A TO220F |
346 | - |
|
Datasheet | - | TO-220-2 Full Pack | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 650 V | 5A | 1.7 V @ 5 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 650 V | 430pF @ 0V, 1MHz | - | - | Through Hole | TO-220F | -55°C ~ 175°C |
|
CDBD2SC21200-GDIODE SIL CARB 1.2KV 6.2A TO263 |
381 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 1200 V | 6.2A | 1.7 V @ 2 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 1200 V | 136pF @ 0V, 1MHz | - | - | Surface Mount | TO-263 (D2PAK) | -55°C ~ 175°C |
|
CDBDSC8650-GDIODE SIL CARB 650V 25.5A DPAK |
342 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 650 V | 25.5A | 1.7 V @ 8 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 650 V | 550pF @ 0V, 1MHz | - | - | Surface Mount | DPAK | -55°C ~ 175°C |
|
|
CDBJFSC8650-GDIODE SIL CARBIDE 650V 8A TO220F |
479 | - |
|
Datasheet | - | TO-220-2 Full Pack | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 650 V | 8A | 1.7 V @ 8 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 650 V | 560pF @ 0V, 1MHz | - | - | Through Hole | TO-220F | -55°C ~ 175°C |
|
|
CDBJSC10650-GDIODE SIL CARB 650V 10A TO220F |
472 | - |
|
Datasheet | - | TO-220-2 Full Pack | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 650 V | 10A | 1.7 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 650 V | 710pF @ 0V, 1MHz | - | - | Through Hole | TO-220F | -55°C ~ 175°C |
|
|
CDBDSC10650-GDIODE SIL CARBIDE 650V 10A DPAK |
355 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 650 V | 10A | 1.7 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 650 V | 690pF @ 0V, 1MHz | - | - | Surface Mount | DPAK | -55°C ~ 175°C |
|
|
CDBJFSC101200-GDIODE SIL CARB 1.2KV 10A TO220F |
553 | - |
|
Datasheet | - | TO-220-2 Full Pack | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 1200 V | 10A | 1.7 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 1200 V | 780pF @ 0V, 1MHz | - | - | Through Hole | TO-220F | -55°C ~ 175°C |
|
|
CDBDSC51200-GDIODE SIL CARBIDE 1.2KV 18A DPAK |
411 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 1200 V | 18A | 1.7 V @ 5 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 1200 V | 475pF @ 0V, 1MHz | - | - | Surface Mount | DPAK | -55°C ~ 175°C |
|
CDBFR03100-HFDIODE SCHOTTKY 100V 300MA 1005 |
1,424 | - |
|
Datasheet | - | 1005 (2512 Metric) | Tape & Reel (TR) | Obsolete | Schottky | 100 V | 300mA | 820 mV @ 300 mA | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 100 V | 25pF @ 1V, 1MHz | - | - | Surface Mount | 1005/SOD-323F | -40°C ~ 150°C |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
