Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FM140-MH-HDIODE SCHOTTKY 40V 1A SOD123H |
300,000 | - |
|
Datasheet | - | SOD-123 | Tape & Reel (TR) | Active | Schottky | 40 V | 1A | 500 mV @ 1 A | Fast Recovery =< 500ns, > 1A (Io) | - | 500 mA @ 40 V | 270pF @ 4V, 1MHz | - | - | Surface Mount | SOD-123H | -55°C ~ 125°C |
|
1SS355-HDIODE GEN PURP 80V 100MA SOD323F |
2,990 | - |
|
Datasheet | - | SC-76, SOD-323 | Tape & Reel (TR) | Active | Standard | 80 V | 100mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 100 nA @ 80 V | 3pF @ 500mV, 1MHz | - | - | Surface Mount | SOD-323F | -55°C ~ 150°C |
|
FM4007-N-HDIODE GEN PURP 1KV 1A SOD323 |
2,050 | - |
|
Datasheet | - | SC-90, SOD-323F | Tape & Reel (TR) | Active | Standard | 1000 V | 1A | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1000 V | 3.5pF @ 4V, 1MHz | - | - | Surface Mount | SOD-323 | -55°C ~ 150°C |
|
FM140-NS-HDIODE SCHOTTKY 40V 1A SOD323S |
2,530 | - |
|
Datasheet | - | SC-90, SOD-323F | Tape & Reel (TR) | Active | Schottky | 40 V | 1A | 550 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 40 V | 38pF @ 4V, 1MHz | - | - | Surface Mount | SOD-323S | -55°C ~ 125°C |
|
|
FM140-N-HDIODE SCHOTTKY 40V 1A SOD323 |
2,800 | - |
|
Datasheet | - | SC-90, SOD-323F | Tape & Reel (TR) | Active | Schottky | 40 V | 1A | 550 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 40 V | 38pF @ 4V, 1MHz | - | - | Surface Mount | SOD-323 | -55°C ~ 125°C |
|
FM340-MST-HDIODE SCHOTTKY 40V 3A SOD123ST |
1,850 | - |
|
Datasheet | - | SOD-123F | Tape & Reel (TR) | Active | Schottky | 40 V | 3A | 550 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 40 V | 150pF @ 4V, 1MHz | - | - | Surface Mount | SOD-123ST | -55°C ~ 125°C |
|
FM540-AHST-HDIODE SCHOTTKY 40V 5A SMA-HST |
2,900 | - |
|
Datasheet | - | DO-221BC, SMA Flat Leads | Tape & Reel (TR) | Active | Schottky | 40 V | 5A | 550 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 40 V | 270pF @ 4V, 1MHz | - | - | Surface Mount | SMA-HST | -55°C ~ 125°C |
|
FM4007-MH-HGEN PURP DIODE, STD GPP, 1A 1000 |
300,000 | - |
|
Datasheet | - | SOD-123 | Tape & Reel (TR) | Active | Standard | 1000 V | 1A | 1.1 V @ 1 A | Standard Recovery > 500ns, > 1A (Io) | - | 5 µA @ 1000 V | - | - | - | Surface Mount | SOD-123 | -55°C ~ 150°C |
|

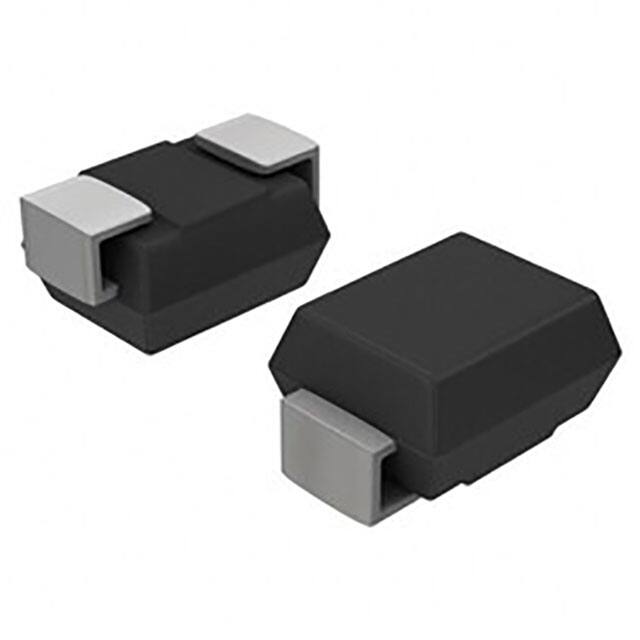

FM4007-M-HDIODE GEN PURP 1KV 1A SOD123 |
250,000 | - |
|
Datasheet | - | SOD-123 | Tape & Reel (TR) | Active | Standard | 1000 V | 1A | 1.1 V @ 1 A | Standard Recovery > 500ns, > 1A (Io) | - | 5 µA @ 1000 V | - | - | - | Surface Mount | SOD-123 | -55°C ~ 150°C |
|
FM4007-S-HDIODE GEN PURP 1KV 1A SMA-S |
250,000 | - |
|
Datasheet | - | DO-214AC, SMA | Tape & Reel (TR) | Active | Standard | 1000 V | 1A | 1.1 V @ 1 A | Standard Recovery > 500ns, > 1A (Io) | - | 5 µA @ 1000 V | - | - | - | Surface Mount | SMA-S | -55°C ~ 150°C |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
