Reed Relays
Compare the current Reed Relays Relays selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

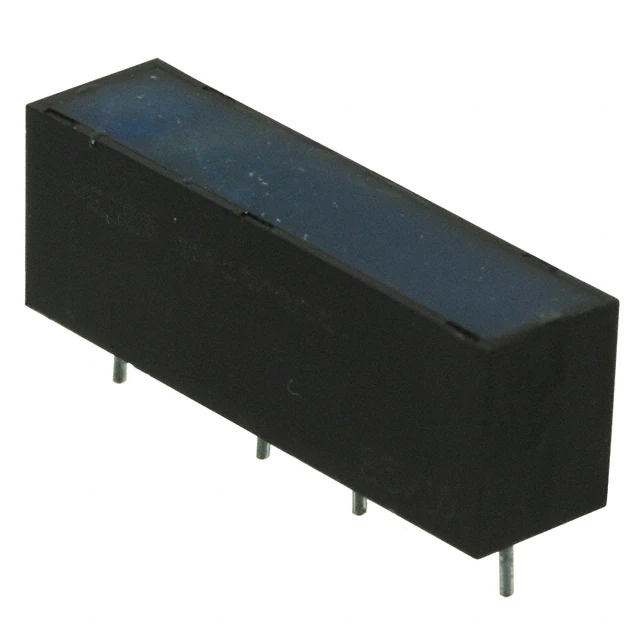

SIL05-1A72-71LRELAY REED SPST 0.5A 5V |
1,292 | - |
|
Datasheet | SIL | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.7 ms | 0.1 ms | -20°C ~ 70°C | - |
|
|
SIL03-1A72-71DRELAY REED SPST 0.5A 3V |
286 | - |
|
Datasheet | SIL | Tube | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 6 mA | Non Latching | Diode | PC Pin | - | 2.1 VDC | 0.45 VDC | 0.7 ms | 0.05 ms | -20°C ~ 70°C | - |
|
CRR05-1ARELAY REED SPST 500MA 5V |
17,329 | - |
|
Datasheet | CRR | Tape & Reel (TR) | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 500 mA | 170VAC, 170VDC - Max | 33.3 mA | Non Latching | - | SMD (SMT) Tab | - | 3.75 VDC | 0.75 VDC | 0.6 ms | 0.05 ms | -40°C ~ 125°C | - |
|
UMS05-1A80-75DRELAY REED SPST 500MA 5V |
5,324 | - |
|
Datasheet | UMS | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 170VAC, 170VDC - Max | 12.5 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.5 VDC | 0.2 ms | 0.1 ms | -20°C ~ 85°C | - |
|
KT12-1A-40L-SMDREED RELAY 1 FORM A 12V SMD |
1,596 | - |
|
Datasheet | KT | Tape & Reel (TR) | Active | Surface Mount | 12VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 25 mA | Non Latching | - | Gull Wing | Sealed - Fully | 9 VDC | 1 VDC | - | - | -40°C ~ 100°C | - |
|
SHV12-1A85-78L3KRELAY REED SPST 1A 12V |
2,792 | - |
|
Datasheet | SHV | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1.8 VDC | 1.1 ms | 0.1 ms | -40°C ~ 100°C | - |
|

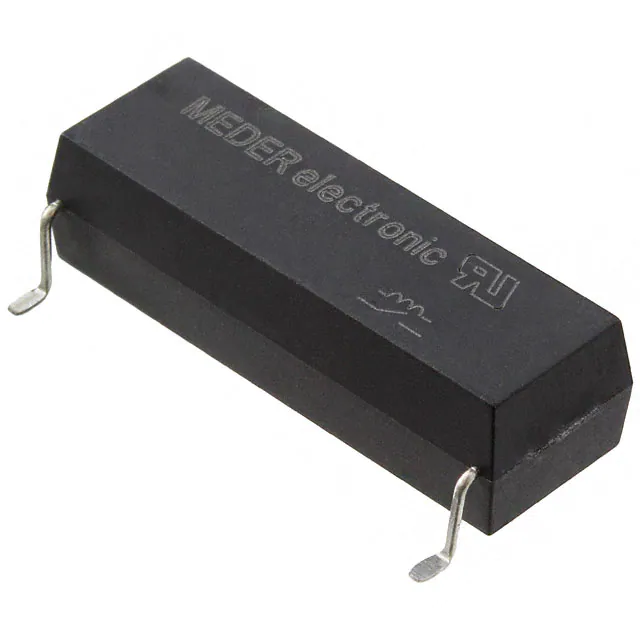

KT24-1A-40L-SMDREED RELAY 1 FORM A 24V SMD |
1,170 | - |
|
Datasheet | KT | Tape & Reel (TR) | Active | Surface Mount | 24VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 13.3 mA | Non Latching | - | Gull Wing | Sealed - Fully | 16 VDC | 2.9 VDC | - | - | -40°C ~ 100°C | - |
|

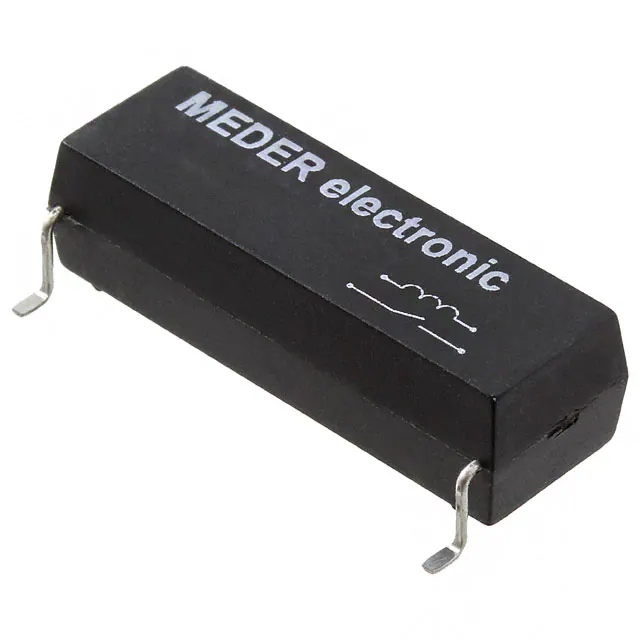

KT05-1A-40L-SMDREED RELAY 1 FORM A 5V SMD |
5,890 | - |
|
Datasheet | KT | Tape & Reel (TR) | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 63 mA | Non Latching | - | Gull Wing | Sealed - Fully | 3.5 VDC | 0.5 VDC | - | - | -40°C ~ 100°C | - |
|
CRR05-1ASRELAY REED SPST 500MA 5V |
3,598 | - |
|
Datasheet | CRR | Tape & Reel (TR) | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 500 mA | 170VAC, 170VDC - Max | 33.3 mA | Non Latching | - | BGA | - | 3.75 VDC | 0.75 VDC | 0.6 ms | 0.05 ms | -40°C ~ 125°C | - |
|
|
SHV05-1A85-78L2KRELAY REED SPST 1A 5V |
852 | - |
|
Datasheet | SHV | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 22 mA | Non Latching | Magnetic Shield | PC Pin | - | 3.75 VDC | 0.5 VDC | 1.1 ms | 0.1 ms | -40°C ~ 105°C | - |
Reed Relays FAQ
How can I narrow the current Reed Relays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Reed Relays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
