REFINED COMPONENT RESULTS

Reed Relays

Compare the current Reed Relays Relays selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.

For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Mounting Type	Coil Voltage	Contact Form	Contact Rating (Current)	Switching Voltage	Coil Current	Coil Type	Features	Termination Style	Seal Rating	Must Operate Voltage	Must Release Voltage	Operate Time	Release Time	Operating Temperature	Contact Material
3502-12-710 RELAY REED DPST 500MA 12V Coto Technology	270	-	RFQ	Datasheet	3500	Tube	Active	Through Hole	12VDC	DPST-NO (2 Form A)	500 mA	200VAC, 200VDC - Max	6 mA	Non Latching	-	PC Pin	Sealed - Hermetically	9 VDC	1 VDC	0.75 ms	0.1 ms	-20°C ~ 85°C	-
2971-12-00 RELAY REED SPDT 250MA 12V Coto Technology	547	-	RFQ	Datasheet	2970	Tube	Active	Through Hole	12VDC	SPDT (1 Form C)	250 mA	150VAC, 150VDC - Max	8 mA	Non Latching	-	PC Pin	-	6.7 VDC	1 VDC	1 ms	2 ms	-40°C ~ 125°C	-

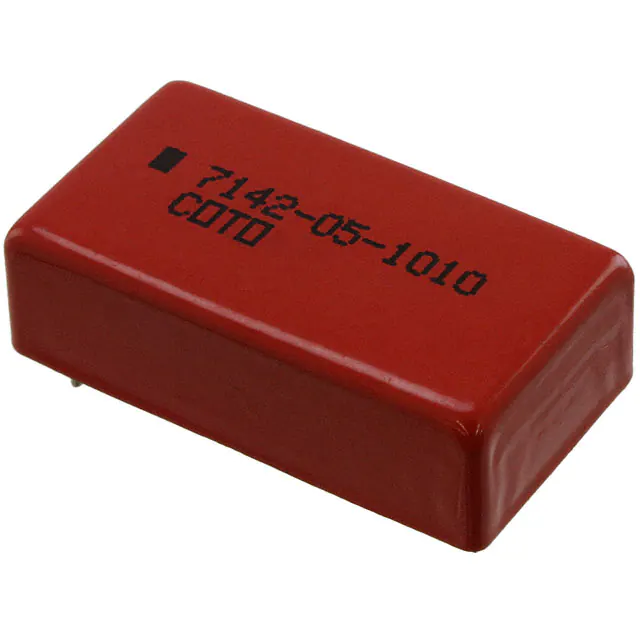

7142-05-1010 RELAY REED DPDT 250MA 5V Coto Technology	188	-	RFQ	Datasheet	7000	Bulk	Active	Through Hole	5VDC	DPDT (2 Form C)	250 mA	150VAC, 150VDC - Max	77 mA	Non Latching	Electrostatic Shield	PC Pin	-	3.75 VDC	0.4 VDC	2 ms	2.5 ms	-20°C ~ 85°C	-
3541-05-811 RELAY REED DPST 500MA 5V Coto Technology	407	-	RFQ	Datasheet	3500	Tube	Active	Through Hole	5VDC	DPST-NO (2 Form A)	500 mA	500VAC, 500VDC - Max	25 mA	Non Latching	-	PC Pin	Sealed - Hermetically	3.8 VDC	0.4 VDC	1 ms	0.2 ms	-20°C ~ 85°C	-
8L01-12-001 RELAY REED SPST 500MA 12V Coto Technology	9,924	-	RFQ	Datasheet	8L	Tube	Active	Through Hole	12VDC	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	24 mA	Non Latching	-	PC Pin	-	9.6 VDC	1 VDC	0.5 ms	0.5 ms	-20°C ~ 85°C	-

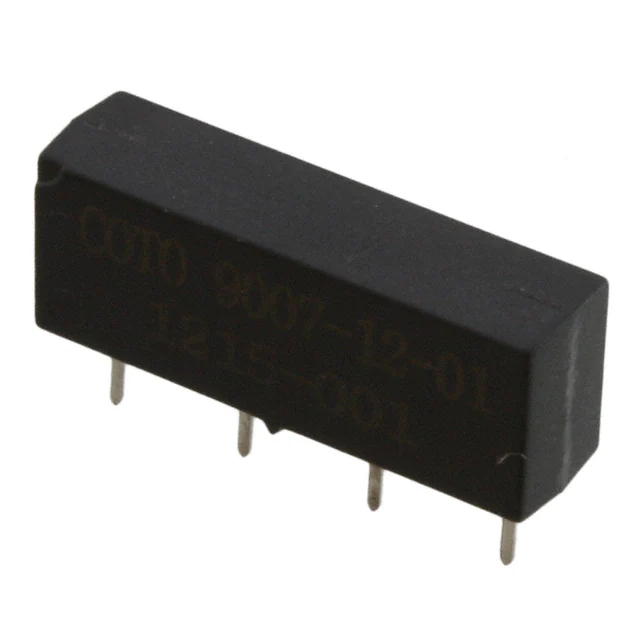

9007-12-01 RELAY REED SPST 500MA 12V Coto Technology	3,362	-	RFQ	Datasheet	9007, Spartan	Tube	Active	Through Hole	12VDC	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	12 mA	Non Latching	Diode	PC Pin	-	9 VDC	1 VDC	0.5 ms	0.2 ms	-20°C ~ 85°C	-
9007-24-01 RELAY REED SPST 500MA 24V Coto Technology	1,281	-	RFQ	Datasheet	9007, Spartan	Tube	Active	Through Hole	24VDC	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	12 mA	Non Latching	Diode	PC Pin	-	18 VDC	2 VDC	0.5 ms	0.2 ms	-20°C ~ 85°C	-
8L02-24-00 RELAY REED DPST 500MA 24V Coto Technology	2,099	-	RFQ	Datasheet	8L	Tube	Active	Through Hole	24VDC	DPST-NO (2 Form A)	500 mA	200VAC, 200VDC - Max	12 mA	Non Latching	-	PC Pin	-	19.2 VDC	2 VDC	0.5 ms	0.5 ms	-20°C ~ 85°C	-
8L01-05-101 RELAY REED SPST 500MA 5V Coto Technology	366	-	RFQ	Datasheet	8L	Tube	Active	Through Hole	5VDC	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	10 mA	Non Latching	Electrostatic Shield	PC Pin	-	3.8 VDC	0.5 VDC	0.5 ms	0.5 ms	-20°C ~ 85°C	-
8L01-24-011 RELAY REED SPST 500MA 24V Coto Technology	925	-	RFQ	Datasheet	8L	Tube	Active	Through Hole	24VDC	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	11 mA	Non Latching	Diode	PC Pin	-	19.2 VDC	2 VDC	0.5 ms	0.5 ms	-20°C ~ 85°C	-

Reed Relays FAQ

How can I narrow the current Reed Relays selection?

Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.

Can EGOO help source hard-to-find or obsolete Reed Relays parts?

Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.

Can I request a quotation for a BOM or small-batch requirement?

Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.

What information should I provide when requesting a quote?

Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
