Reed Relays
Compare the current Reed Relays Relays selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9104-05-10RELAY REED SPST 500MA 5V |
2,564 |
1+：$10.95000 18+：$9.47167 36+：$9.14722 54+：$8.96222 108+：$8.65454 252+：$8.29246 504+：$8.00736 1008+：$7.73192 |
|
Datasheet | 9104 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 1000VAC, 1000VDC - Max | 28.6 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | 0.75 ms | 0.5 ms | -20°C ~ 85°C | - |
|
9201-05-20RELAY REED SPST 500MA 5V |
823 |
1+：$9.58000 10+：$8.53600 25+：$8.15120 50+：$7.87160 100+：$7.60140 300+：$7.19170 500+：$7.00870 1000+：$6.76765 |
|
Datasheet | 9200 | Tube | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 20 mA | Non Latching | - | J Lead | Sealed - Hermetically | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.1 ms | -20°C ~ 85°C | - |
|
9201-05-00RELAY REED SPST 500MA 5V |
1,282 |
1+：$9.58000 10+：$8.53600 25+：$8.15120 50+：$7.87160 100+：$7.60140 300+：$7.19170 500+：$7.00870 1000+：$6.76765 |
|
Datasheet | 9200 | Tube | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 20 mA | Non Latching | - | Gull Wing | Sealed - Hermetically | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.1 ms | -20°C ~ 85°C | - |
|
9913-05-20RELAY REED SPST-NO 250MA 5V |
3,236 |
1+：$9.77000 10+：$8.70300 25+：$8.31080 50+：$8.02560 125+：$7.66352 250+：$7.40024 500+：$7.14586 1000+：$6.90008 |
|
Datasheet | 9913 | Tube | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | EMI Shielded | J Lead | - | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | -20°C ~ 85°C | - |
|
|
9913-05-20TRRELAY REED SPST-NO 250MA 5V |
7,567 |
1+：$10.02000 10+：$8.92500 25+：$8.52320 50+：$8.23080 100+：$7.94820 250+：$7.58936 500+：$7.32846 1000+：$7.07638 |
|
Datasheet | 9913 | Tape & Reel (TR) | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | EMI Shielded | J Lead | - | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | -20°C ~ 85°C | - |
|
9012-05-11RELAY REED SPST 500MA 5V |
4,222 |
1+：$9.56000 10+：$8.51700 39+：$7.95333 78+：$7.68038 117+：$7.52504 273+：$7.21029 507+：$6.98854 1014+：$6.74817 |
|
Datasheet | 9012 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
9012-12-11RELAY REED SPST 500MA 12V |
15,123 |
1+：$10.51000 10+：$9.36600 39+：$8.74615 78+：$8.44603 117+：$8.27521 273+：$7.92901 507+：$7.68517 1014+：$7.42085 |
|
Datasheet | 9012 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 16 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C | - |
|

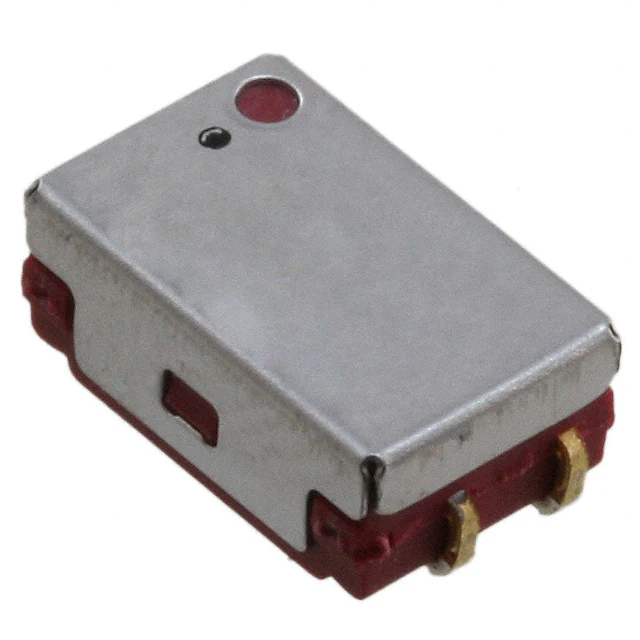

9901-05-20RELAY REED SPST 250MA 5V |
2,490 |
1+：$12.39000 10+：$11.04000 25+：$10.54200 50+：$10.18040 100+：$9.83100 300+：$9.30097 500+：$9.06418 1000+：$8.75233 |
|
Datasheet | 9900 | Tube | Not For New Designs | Surface Mount | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 33.3 mA | Non Latching | EMI Shielded | J Lead | - | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | -20°C ~ 85°C | - |
|
|
9901-05-20TRRELAY REED SPST 250MA 5V |
6,135 |
1+：$12.50000 10+：$11.13100 25+：$10.62920 50+：$10.26460 100+：$9.91220 250+：$9.46456 500+：$9.13912 |
|
Datasheet | 9900 | Tape & Reel (TR) | Not For New Designs | Surface Mount | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 33.3 mA | Non Latching | EMI Shielded | J Lead | - | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | -20°C ~ 85°C | - |
|

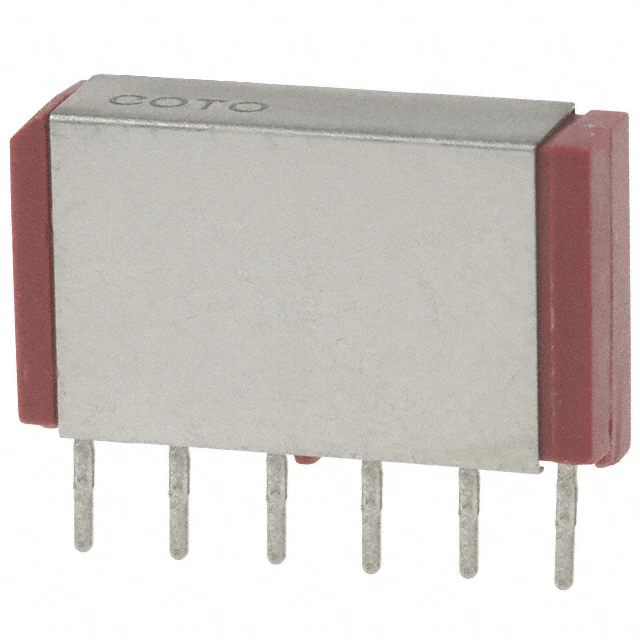

9092-05-10RELAY REED DPST 500MA 5V |
542 |
1+：$18.23000 10+：$16.23800 30+：$15.36400 60+：$14.83650 120+：$14.32692 270+：$13.75241 510+：$13.31771 |
|
Datasheet | 9092 | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 13.3 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.75 ms | 0.5 ms | -20°C ~ 85°C | - |
Reed Relays FAQ
How can I narrow the current Reed Relays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Reed Relays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
