Resonators
Compare the current Resonators Crystals, Oscillators, Resonators selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Features | Capacitance | Impedance | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSTLS8M00G53-A0CERAMIC RES 8.0000MHZ 15PF T/H |
1,345 | - |
|
Datasheet | CERALOCK® CSTLS | Radial - 3 Lead, 2.50mm Pitch | Cut Tape (CT) | Active | Ceramic | 8 MHz | ±0.2% | ±0.5% | Built in Capacitor | 15 pF | 25 Ohms | -20°C ~ 80°C | Through Hole | 0.315" L x 0.118" W (8.00mm x 3.00mm) | 0.236" (6.00mm) |
|
|
CSTLS10M0G53Z-B0CERAMIC RES 10.0000MHZ 15PF T/H |
6,761 | - |
|
Datasheet | CERALOCK® CSTLS | Radial - 3 Lead, 2.50mm Pitch | Bulk | Active | Ceramic | 10 MHz | -0.4, +0.2% | ±0.5% | Built in Capacitor | 15 pF | - | -40°C ~ 125°C | Through Hole | 0.315" L x 0.118" W (8.00mm x 3.00mm) | 0.236" (6.00mm) |
|
|
CSTLS4M00G56-B0CERAMIC RES 4.0000MHZ 47PF T/H |
4,419 | - |
|
Datasheet | CERALOCK® CSTLS | Radial - 3 Lead, 2.50mm Pitch | Bulk | Active | Ceramic | 4 MHz | -0.4, +0.2% | ±0.5% | Built in Capacitor | 47 pF | 30 Ohms | -20°C ~ 80°C | Through Hole | 0.315" L x 0.118" W (8.00mm x 3.00mm) | 0.236" (6.00mm) |
|
CSTNE20M0V53C000R0CERAMIC RES 20.0000MHZ 15PF SMD |
93,958 | - |
|
Datasheet | CERALOCK® CSTNE | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 20 MHz | ±0.15% | ±0.5% | Built in Capacitor | 15 pF | 40 Ohms | -40°C ~ 125°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.039" (1.00mm) |
|

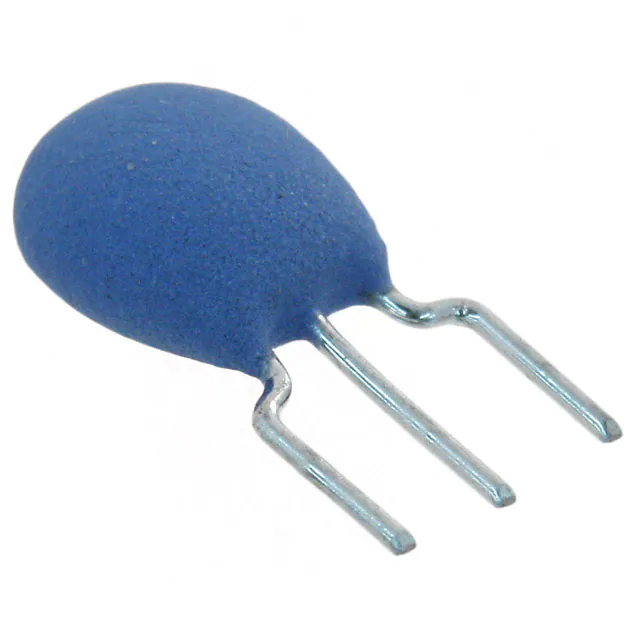

CSTLS16M0X53-B0CERAMIC RES 16.0000MHZ 15PF T/H |
21,705 | - |
|
Datasheet | CERALOCK® CSTLS | Radial - 3 Lead, 2.50mm Pitch | Bulk | Active | Ceramic | 16 MHz | ±0.2% | ±0.5% | Built in Capacitor | 15 pF | 50 Ohms | -20°C ~ 80°C | Through Hole | 0.217" L x 0.118" W (5.50mm x 3.00mm) | 0.256" (6.50mm) |
|
CSTNE16M0V53L000R03.2X1.3MM 16.0MHZ CERAMIC RESONA |
10,732 | - |
|
Datasheet | CERALOCK® CSTNE | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 16 MHz | ±0.2% | ±0.5% | Built in Capacitor | 15 pF | 40 Ohms | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.039" (1.00mm) |
|
|
CSTNE8M00G520000R0CERAMIC RES 8.0000MHZ 10PF SMD |
19,573 | - |
|
Datasheet | CERALOCK® CSTNE | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 8 MHz | ±0.2% | ±0.5% | Built in Capacitor | 10 pF | 40 Ohms | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.032" (0.80mm) |
|
|
CSTNE10M0G55A000R0CERAMIC RES 10.0000MHZ 33PF SMD |
7,561 | - |
|
Datasheet | CERALOCK® CSTNE | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 10 MHz | ±0.2% | ±0.5% | Built in Capacitor | 33 pF | 40 Ohms | -40°C ~ 125°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.032" (0.80mm) |
|
|
CSTNE10M0G520000R0CERAMIC RES 10.0000MHZ 10PF SMD |
5,595 | - |
|
Datasheet | CERALOCK® CSTNE | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 10 MHz | ±0.2% | ±0.5% | Built in Capacitor | 10 pF | - | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.032" (0.80mm) |
|
CSTNE20M0V51Z000R0CERAMIC RESONATOR 1 3-PIN SURFAC |
2,266 | - |
|
Datasheet | CERALOCK® CSTNE | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 20 MHz | ±0.3% | ±0.5% | Built in Capacitor | 5 pF | 40 Ohms | -40°C ~ 125°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.039" (1.00mm) |
Resonators FAQ
How can I narrow the current Resonators selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Resonators parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
