Resonators
Compare the current Resonators Crystals, Oscillators, Resonators selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Features | Capacitance | Impedance | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AWCR-3.58MDCERAMIC RES 3.5800MHZ 30PF T/H |
6,838 | - |
|
Datasheet | AWCR | Radial - 3 Lead, 2.50mm Pitch | Bulk | Obsolete | Ceramic | 3.58 MHz | ±0.3% | ±0.5% | Built in Capacitor | 30 pF | 30 Ohms | -25°C ~ 85°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.315" (8.00mm) |
|
|
AWCR-4.00MDCERAMIC RES 4.0000MHZ 30PF T/H |
4,175 | - |
|
Datasheet | AWCR | Radial - 3 Lead, 2.50mm Pitch | Bulk | Obsolete | Ceramic | 4 MHz | ±0.3% | ±0.5% | Built in Capacitor | 30 pF | 30 Ohms | -25°C ~ 85°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.315" (8.00mm) |
|
|
AWCR-6.00MDCERAMIC RES 6.0000MHZ 30PF T/H |
6,364 | - |
|
Datasheet | AWCR | Radial - 3 Lead, 2.50mm Pitch | Bulk | Obsolete | Ceramic | 6 MHz | ±0.3% | ±0.5% | Built in Capacitor | 30 pF | 30 Ohms | -25°C ~ 85°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.315" (8.00mm) |
|
AWSCR-4.00MGD-TCERAMIC RES 4.0000MHZ 22PF SMD |
9,296 | - |
|
Datasheet | AWSCR-MGD | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 4 MHz | ±0.3% | ±0.5% | Built in Capacitor | 22 pF | 30 Ohms | -25°C ~ 85°C | Surface Mount | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.083" (2.10mm) |
|
|
AWSCR-8.00MGD-TCERAMIC RES 8.0000MHZ 22PF SMD |
9,388 | - |
|
Datasheet | AWSCR-MGD | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 8 MHz | ±0.3% | ±0.5% | Built in Capacitor | 22 pF | 30 Ohms | -25°C ~ 85°C | Surface Mount | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.083" (2.10mm) |
|
AWSZT-4.00MGD-TCERAMIC RES 4.0000MHZ SMD |
9,050 | - |
|
Datasheet | AWSZT-MGD | 2913 (7434 Metric) | Tape & Reel (TR) | Obsolete | Ceramic | 4 MHz | ±0.3% | ±0.5% | - | - | 30 Ohms | -25°C ~ 85°C | Surface Mount | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.083" (2.10mm) |
|
HWZT-10.00MDCERAMIC RES 10.0000MHZ T/H |
7,089 | - |
|
Datasheet | HWZT | Radial - 2 Lead, 5.00mm Pitch | Bulk | Active | Ceramic | 10 MHz | ±0.3% | ±0.5% | - | - | 30 Ohms | -40°C ~ 85°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.394" (10.00mm) |
|

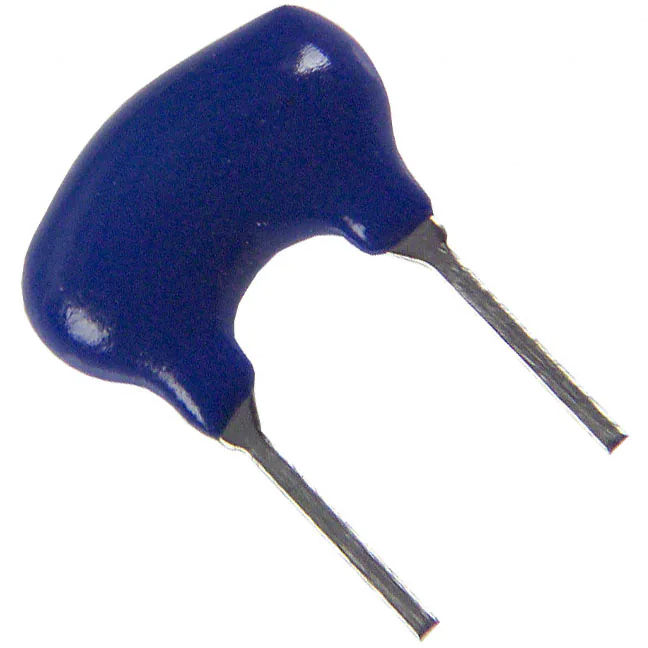

HWZT-8.00MDCERAMIC RES 8.0000MHZ T/H |
6,296 | - |
|
Datasheet | HWZT | Radial - 2 Lead, 5.00mm Pitch | Bulk | Active | Ceramic | 8 MHz | ±0.3% | ±0.5% | - | - | 30 Ohms | -40°C ~ 85°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.217" (5.50mm) |
|
AWCR-12.00RSCERAMIC RES 12.0000MHZ 15PF T/H |
4,892 | - |
|
Datasheet | AWCR-RS | Radial - 3 Lead, 2.50mm Pitch | Bulk | Obsolete | Ceramic | 12 MHz | ±0.5% | ±0.3% | Built in Capacitor | 15 pF | 25 Ohms | -25°C ~ 85°C | Through Hole | 0.217" L x 0.118" W (5.50mm x 3.00mm) | 0.217" (5.50mm) |
|

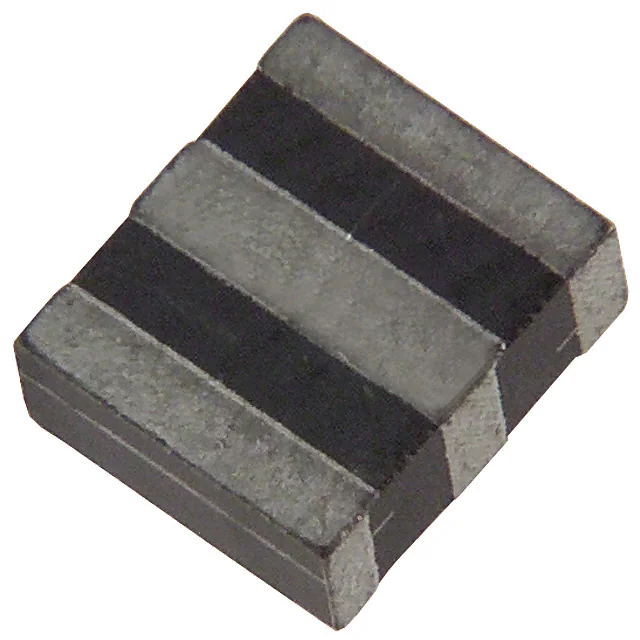

AWSCR-25.00MTD-TCERAMIC RES 25.0000MHZ 10PF SMD |
3,892 | - |
|
Datasheet | AWSCR-MTD | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 25 MHz | ±0.5% | ±0.3% | Built in Capacitor | 10 pF | 40 Ohms | -25°C ~ 85°C | Surface Mount | 0.185" L x 0.161" W (4.70mm x 4.10mm) | - |
Resonators FAQ
How can I narrow the current Resonators selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Resonators parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
