RF Antennas
Browse available RF Antennas components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CGGBP.25.4.A.02RF ANT 1.56/1.575GHZ CER PATCH |
3,427 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.56GHz, 1.575GHz, 1.602GHz | - | Ceramic Patch | 3 | 2.5, 2.5, 1.8 | -34dB | 4.96dBi, 4.99dBi, 5.48dBi | - | - | Pin | - | - | - | Connector Mount | 0.157" (4.00mm) | Beidou, GLONASS, GPS |
|
66089-2406RF ANT 2.4GHZ WHIP STR U.FL CONN |
8,729 | - |
|
Datasheet | 66089 | Bag | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Straight | 1 | 1.7 | - | 3dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 1.417" (36.00mm) | - |
|
ANT-2.4-CW-RH-SMARF ANT 2.4GHZ WHIP STR SMA MALE |
247 | - |
|
Datasheet | RH | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.39GHz ~ 2.49GHz | Whip, Straight | 1 | 2 | - | -0.9dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.063" (27.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
ANT-916-CW-RCLRF ANT 916MHZ WHIP RA RP-SMA MAL |
213 | - |
|
Datasheet | RCL | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 840MHz ~ 990MHz | Whip, Right Angle | 1 | 1.7 | - | -2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 3.465" (88.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-868-CW-RCS-SMARF ANT 868MHZ WHIP RA SMA MALE |
2,519 | - |
|
Datasheet | RCS | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 850MHz ~ 880MHz | Whip, Right Angle | 1 | 2 | - | 3.6dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.106" (53.50mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ACTPAT182-01-IPRF ANT 1.575GHZ CER PATCH CAB |
472 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.573GHz ~ 1.583GHz | Ceramic Patch | 1 | 1.5 | -10dB | 1dBic | - | Cable - 63mm, LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.193" (4.90mm) | GPS |
|

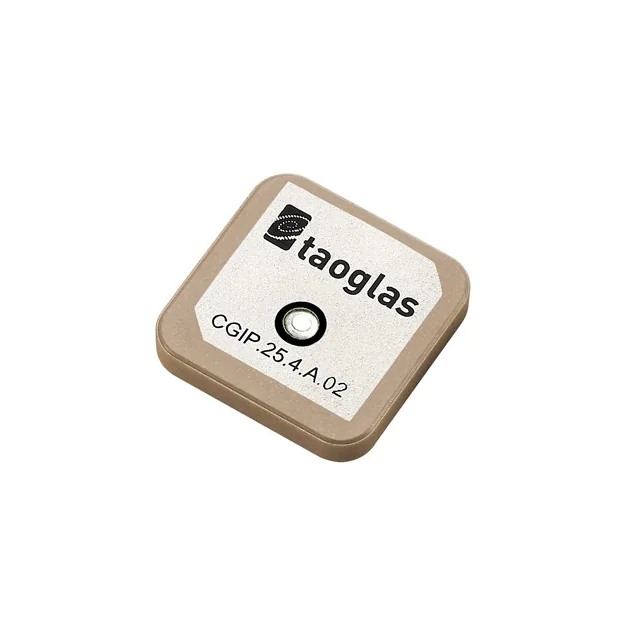

CGIP.25.4.A.02RF ANT 1.575/1.621GHZ CER PATCH |
273 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.621GHz | 1.575GHz ~ 1.626GHz | Ceramic Patch | 2 | 2 | - | 5dBi | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | GPS, Iridium™ |
|
W1900RF ANT 850MHZ/900MHZ WHIP RA |
797 | - |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Right Angle | 5 | - | -4dB, -6dB | 1dBi, 2dBi, 2.5dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.949" (49.50mm) | GSM, WCDMA |
|
YLY001CAGNSS L1&B1&G1 ACTVE, 2M,SMAM,MAG |
5,568 | - |
|
Datasheet | - | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.588GHz | 1.575GHz ~ 1.602GHz | Dome | 1 | 2 | - | 0.8dBi | - | LNA | SMA Male | IP66 | - | - | Magnetic | 0.511" (12.99mm) | GNSS |
|
|
YE0007AAEXTERNAL DIPOLE 5G ANTENNA SMAM |
1,360 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 2.43GHz, 3.3GHz, 3.65GHz, 4.5GHz, 5.5GHz | 600MHz ~ 960MHz, 698MHz ~ 1.28GHz, 1.176GHz ~ 1.61GHz, 1.4GHz ~ 2.17GHz, 1.71GHz ~ 2.69GHz, 2.17GHz ~ 4GHz, 3.3GHz ~ 5GHZ, 4GHz ~ 6GHz, 5GHz ~ 6GHz | Whip, Straight | 9 | 3.5 | - | 3dBi, 4.1dBi, 3.2dBi, 3.5dBi, 3.9dBi, 5.2dBi, 5.5dBi | - | - | SMA Male | IP55 | - | - | Connector Mount | 6.000" (152.40mm) | LTE |
|
CGGBP.18.4.A.02RF ANT 1.56/1.575GHZ CER PATCH |
10,133 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.56GHz, 1.575GHz, 1.602GHz | 1.548GHz ~ 1.615GHz | Ceramic Patch | 3 | 2.8, 2.8, 1.8 | -10dB | 3dBi, 2dBi, 4dBi | - | - | Pin | - | - | - | Connector Mount | 0.157" (4.00mm) | Beidou, GLONASS, GPS |
|
2128600011WI-FI/BLUETOOTH HINGED EXT ANTEN |
2,940 | - |
|
Datasheet | 212860 | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Tilt | 2 | - | -10dB | 5.3dBi, 4.5dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 4.268" (108.40mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
W1696-MANT EXT 0.617-3.8GHZ SMA |
1,407 | - |
|
Datasheet | Stubby Antenna | Tray | Active | Cellular | Wide Band | 788.5MHz, 2.2GHz, 3.6GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz | Whip, Straight | 3 | - | -5dB, -4dB | -0.5dBi, 1dBi, 0dBi | 5 W | - | SMA | IP65 | - | - | Connector Mount | 1.969" (50.00mm) | LTE |
|
EFD2455A3S-10MHF1RF ANT 2.44GHZ/5.4GHZ FLEXPIFA |
519 | - |
|
Datasheet | FlexPIFA™ | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.4GHz | 2.4GHz ~ 2.485GHz, 4.9GHz ~ 5.9GHz | FlexPIFA | 2 | 2.5, 3 | - | 1.7dBi, 2.5dBi | - | Cable - 100mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.175" (4.44mm) | Wi-Fi |
|
FXP74.07.0100ARF ANT 2.4GHZ FLAT PATCH CAB ADH |
1,470 | - |
|
Datasheet | Black Diamond | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | Flat Patch | 1 | 2 | -10dB | 4dBi | 5 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
ANT-916-CW-RAH-SMARF ANT 916MHZ WHIP RA SMA LPWA |
1,477 | - |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 916MHz | 850MHz ~ 970MHz | Whip, Right Angle | 1 | 1.9 | - | 2.2dBi | - | - | SMA | - | - | - | Connector Mount | 1.829" (46.46mm) | - |
|
FXUB66.01.0150CRF ANT 3.4GHZ FLAT PATCH SMA MAL |
792 | - |
|
Datasheet | - | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 3.4GHz | 700MHz ~ 6GHz | Flat Patch | 1 | 2.2 | -7dB | 6.4dBi | 5 W | - | SMA Male | - | - | - | Adhesive | 0.008" (0.20mm) | CDMA, GPS, GSM, LTE, UMTS, WLAN |
|
AEACAC053010-S868RF ANT 868MHZ WHIP STR SMA ML |
1,254 | - |
|
Datasheet | AEAC | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 833MHz ~ 903MHz | Whip, Straight | 1 | 3 | - | 2dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.102" (53.40mm) | ISM, LoRa, LPWAN, Sigfox |
|
APAMBJ-135RF ANT 2.4GHZ/5GHZ WHIP STR SMA |
485 | - |
|
Datasheet | APAMBJ | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | - | Whip, Straight | 2 | 1.5 | - | 2dBi | 20 W | - | SMA Male | - | - | - | Connector Mount | 2.165" (55.00mm) | Bluetooth, WLAN |
|
FXP840.07.0055BRF ANT 2.4GHZ/5.4GHZ FLAT PATCH |
2,529 | - |
|
Datasheet | Freedom | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.41GHz ~ 2.49GHz, 4.9GHz ~ 5.8GHz | Flat Patch | 2 | 2, 2.5 | -10dB, -7dB | 2dBi, 2.5dBi | 2 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, WLAN |
RF Antennas FAQ
What RF Antennas components can I source from EGOO?
You can browse available RF Antennas product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete RF Antennas parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
