RF Antennas
Compare the current RF Antennas RF and Wireless selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PRO-OB-607ANT ONBOARD SMD 2400 STAMPED |
14,999 |
1+：$0.64000 10+：$0.55100 25+：$0.51920 100+：$0.47540 250+：$0.44888 500+：$0.43016 1000+：$0.41247 |
|
Datasheet | Embedded Antenna | Tape & Reel (TR) | Active | 802.15.4, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.497GHz | Stamped Metal | 1 | - | -6.3dB | -0.6dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | Bluetooth, IoT Devices, Wi-Fi, WLAN, Zigbee™ |
|
AMCA31-101-2R450G-S1F-T3RF ANT 2.45GHZ CHIP SOLDER SMD |
1,438 | - |
|
Datasheet | AMCA | Tape & Reel (TR) | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | - | Chip | 1 | 2 | - | 0.5dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, Wi-Fi |
|
AMCA72-2R470G-S1F-T4RF ANT 2.4GHZ CHIP SOLDER SMD |
37,512 | - |
|
Datasheet | AMCA | Tape & Reel (TR) | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.37GHz ~ 2.57GHz | Chip | 1 | 2 | - | 2.7dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | Bluetooth, WLAN |
|
ACAG0801-2450-TRF ANT 2.45GHZ CHIP SOLDER SMD |
9,833 | - |
|
Datasheet | ACAG | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 7.29dBi | - | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
|
PRO-OB-430RF ANT 1.575GHZ/1.602GHZ STAMPED |
5,701 | - |
|
Datasheet | Embedded Antenna | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz ~ 1.602GHz | Stamped Metal | 2 | - | -10dB | - | - | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | GLONASS, GPS |
|

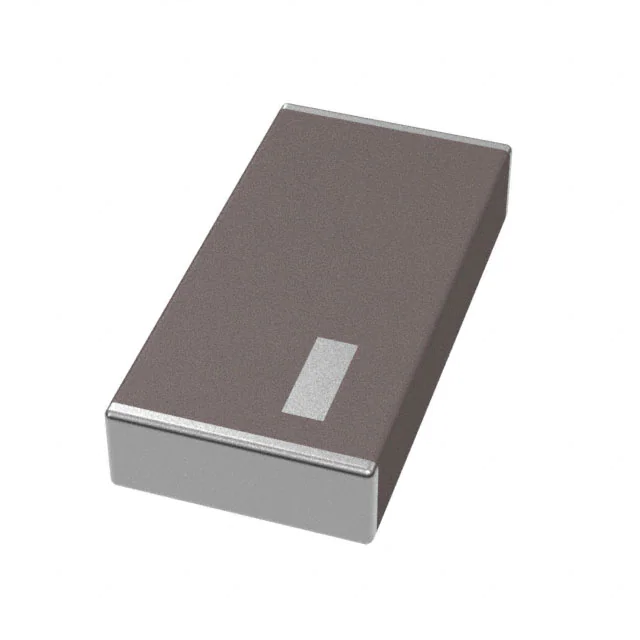

ACAG0301-1575-TRF ANT 1.575GHZ CHIP SOLDER SMD |
6,598 |
1+：$1.19000 10+：$1.02200 25+：$0.96360 100+：$0.88350 250+：$0.83540 500+：$0.80140 1000+：$0.76933 |
|
Datasheet | ACAG | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Chip | 1 | 2 | - | 4.18dBi | - | - | Solder | - | - | - | Surface Mount | 0.024" (0.60mm) | GPS |
|

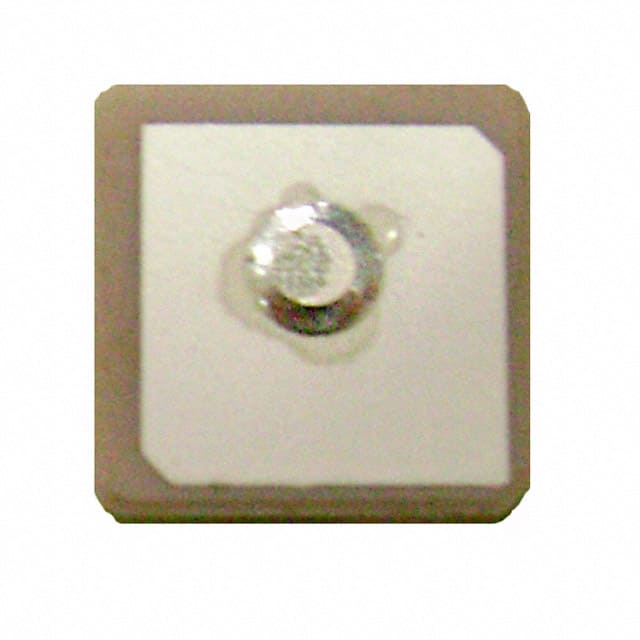

APAE1575R1240ABDD1-TRF ANT 1.575GHZ CER PATCH PIN |
525 | - |
|
Datasheet | APAE | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.591GHz ~ 1.595GHz | Ceramic Patch | 1 | 1.5 | - | 0.6dBic | - | - | Pin | - | - | - | Adhesive | 0.181" (4.60mm) | GPS |
|
|
APAE1575R1820ABDC1-TRF ANT 1.575GHZ CER PATCH PIN |
30,928 | - |
|
Datasheet | APAE | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.573GHz ~ 1.577GHz | Ceramic Patch | 1 | 1.5 | - | 3.3dBic | - | - | Pin | - | - | - | Adhesive | 0.102" (2.60mm) | GPS |
|
AFG4507W2S-0200S2.4/5GHZ WIFI FLEXIBLE ANT |
1,789 |
1+：$2.57000 10+：$2.21900 25+：$2.09520 100+：$1.92590 250+：$1.82416 500+：$1.75228 1000+：$1.68452 3000+：$1.58504 5000+：$1.54190 |
|
Datasheet | AFG | Bulk | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 2 | 3 | - | 8.12dBi | - | Cable - 200mm | I-PEX-1(F) | - | - | - | Adhesive | 0.008" (0.20mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|

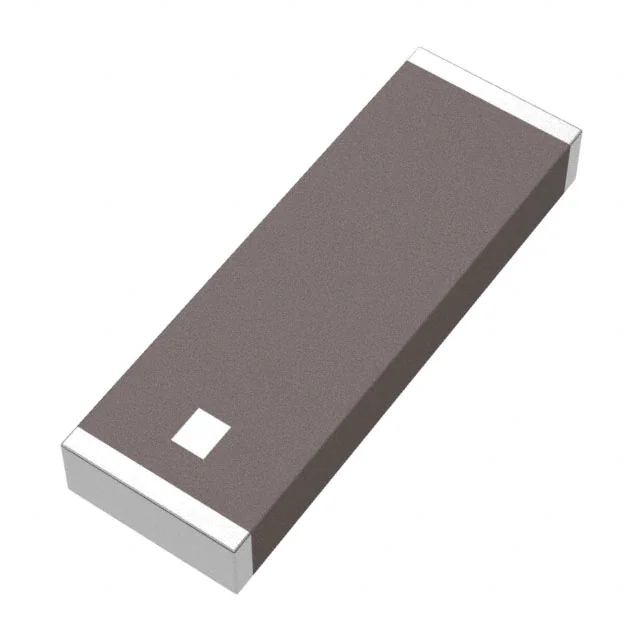

ACAG1204-915-TRF ANT 915MHZ CHIP SOLDER SMD |
30,018 |
1+：$3.43000 10+：$2.96000 25+：$2.79720 100+：$2.57270 250+：$2.43816 500+：$2.34306 1000+：$2.12590 |
|
Datasheet | ACAG | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 910MHz ~ 925MHz | Chip | 1 | 2 | - | 3.42dBi | - | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | ISM, LoRa, Sigfox |
RF Antennas FAQ
How can I narrow the current RF Antennas selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete RF Antennas parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
