RF Antennas
Compare the current RF Antennas RF and Wireless selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APAMPS-105RF ANT 900MHZ/1.575GHZ MOD ADH |
3,770 | - |
|
Datasheet | APAMPS | Bulk | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 900MHz, 1.575GHz, 1.8GHz | 806MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 1.88GHz | Module | 3 | 1.5, 2.0 | - | -1dBi, 1dBi, 5dBic | - | Cable - 3m, LNA | SMA Male (1), FME Female (1) | - | - | - | Adhesive | 0.622" (15.80mm) | GPS, GSM |
|

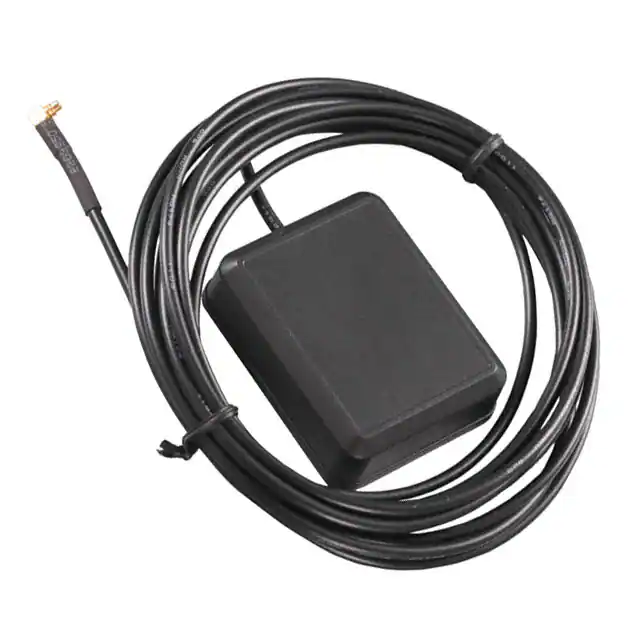

APAMP-110RF ANT 1.575GHZ MOD SMA MALE ADH |
3,128 | - |
|
Datasheet | APAMP | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Module | 1 | 1.5 | -32dB | 5dBic | - | - | SMA Male | - | - | - | Adhesive | 0.598" (15.20mm) | GPS |
|
AMCA52-2R710G-S1F-T4RF ANT 2.7GHZ CHIP SOLDER SMD |
2,450 | - |
|
Datasheet | AMCA | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.7GHz | 2.61GHz ~ 2.81GHz | Chip | 1 | 2 | - | 2.5dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | WiMax™, WLAN |
|
ACA-107-TRF ANT 5.2GHZ CHIP SOLDER SMD |
3,689 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | - | SHF (f > 4GHz) | 5.2GHz | 3.2GHz ~ 7.2GHz | Chip | 1 | 5 | - | 4.16dBi | - | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | - |
|
PRO-OB-508RF ANT 169MHZ STAMPED MET SLD |
3,182 | - |
|
Datasheet | Embedded Antenna | Tray | Active | General ISM | VHF (f < 300MHz) | 169MHz | 169.4MHz ~ 169.8MHz | Stamped Metal | 1 | - | -10dB | - | - | - | Solder | - | - | - | Surface Mount | 1.378" (35.00mm) | ISM |
|
APARM3503-SG3GNSS/GPS/GLONASS/BEIDOU PTCH ANT |
2,100 | - |
|
Datasheet | APARM | Bulk | Active | Navigation | Wide Band | 1.561GHz, 1.575GHz, 1.598GHz, 1.602GHz | 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.592GHz ~ 1.604GHz, 1.597GHz ~ 1.607GHz | Ceramic Patch | 4 | 1.8 | -10dB | 3dBi, 4dBi, 4.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
PRO-EX-218RF ANTENNA |
3,508 | - |
|
Datasheet | - | Box | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.85GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Whip, Straight | 2 | - | -4.5dB | 3dBi | - | - | SMA | - | - | - | Connector Mount | 2.205" (56.00mm) | GSM |
|
|
PRO-EX-380RF ANTENNA |
4,468 | - |
|
Datasheet | - | Box | Obsolete | - | VHF (f < 300MHz) | 169MHz | - | Whip, Straight | 1 | 2 | - | 2dBi | - | - | SMA | IP65 | - | - | Connector Mount | 11.024" (280.00mm) | General Purpose |
|
|
PRO-EX-219RF ANTENNA |
2,817 | - |
|
Datasheet | - | Box | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.85GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Whip, Right Angle | 2 | - | -4.5dB | 3dBi | - | - | SMA | - | - | - | Connector Mount | 2.106" (53.50mm) | GSM |
|
APKD1507G2GPS/GLONASS ACTIVE PATCH ANT SMD |
3,356 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.6015GHz | 1.598GHz ~ 1.605GHz | Ceramic Patch | 1 | 2 | - | 1dBi | - | Cable - 105mm, LNA | I-PEX | - | - | - | Surface Mount | 0.157" (4.00mm) | GLONASS, GPS |
RF Antennas FAQ
How can I narrow the current RF Antennas selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete RF Antennas parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
