RF Antennas
Compare the current RF Antennas RF and Wireless selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

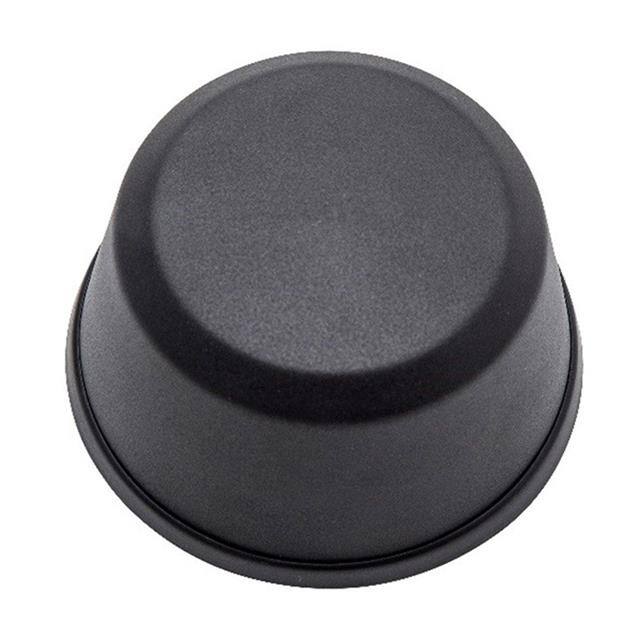

710633RF ANT 789MHZ MODULE FAKRA M |
4,820 | - |
|
Datasheet | AllDisc-S | Box | Active | Cellular, WiFi | Wide Band | 789MHz, 920MHz, 1.795GHz, 2.045GHz, 2.45GHz, 2.595GHz, 3.6GHz, 5.37GHz | 698MHz ~ 880MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.92GHz ~ 2.17GHz, 2.4GHz ~ 2.485GHz, 2.5GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 4.915GHz ~ 5.825GHz | Module | 8 | 2, 2.5, 3 | - | 4.5dBi, 5dBi, 5dBi, 4.5dBi, 3.5dBi, 3.5dBi, 7dBi, 6.5dBi | 10 W | Cable - 300mm | Fakra Male | IP6K9K | - | - | Screw Mount | 2.165" (55.00mm) | 2G, 3G, 4G, 5G, Wi-Fi |
|
3978D-DH-WRF ANT 1.575GHZ DOME TNC BRKT MT |
2,537 | - |
|
Datasheet | - | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Dome | 1 | - | - | -2dBic, 3dBic | - | LNA | TNC | IP67 | - | - | Bracket Mount, Through Hole | 1.732" (44.00mm) | GPS |
|
MYA8066RF ANT 836MHZ YAGI N TYPE F POLE |
1,419 | - |
|
Datasheet | MYA | Box | Active | - | UHF (300MHz ~ 1GHz) | 836MHz | 806MHz ~ 866MHz | Yagi, 6-Element | 1 | 1.5 | - | 11.1dBi | 100 W | - | N Type Female | - | - | - | Pole Mount | 28.000" (711.20mm) | ISM, LoRa, LPWAN |
|
9211DRF ANT 1.621GHZ MOD SMA MALE MAG |
2,888 | - |
|
Datasheet | 9211D | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.621GHz | 1.616GHz ~ 1.6265GHz | Module | 1 | 2 | - | 4dBic | - | Cable - 2m | SMA Male | IP67 | - | - | Magnetic | 0.535" (13.60mm) | GNSS, GPS |
|
BMLPV900NGPVPRF ANT 915MHZ DOME N TYPE F CONN |
2,524 | - |
|
Datasheet | BMLPV | Bag | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Dome | 1 | 2 | - | 1dBi | 100 W | - | N Type Female | - | - | - | Connector Mount | 3.382" (85.90mm) | - |
|
GLLPDLTE-BMEDALLION II PERMANENT ANTENNA |
3,745 | - |
|
Datasheet | Medallion™ II | Box | Active | Cellular, Navigation | Wide Band | 657.5MHz, 750MHz, 767.5MHz, 892MHz, 1.5865GHz, 1.955GHz, 2.0025GHz, 2.4GHz, 2.545GHz, 3.6GHz, 5.4GHz, 5.55GHz | 617MHz ~ 698MHz, 698MHz ~ 790MHz, 790MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 4.9GHz ~ 5.95GHz | Module | 12 | 2:1 | - | 3dBi | 50 W | Filter | SMA | IP67 | - | - | Stud | 1.339" (34.00mm) | 2G, 3G, 5G, Bluetooth, Cellular, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|
|
GLLPDLTE-WMEDALLION II PERMANENT ANTENNA |
2,151 | - |
|
Datasheet | Medallion™ II | Box | Active | Cellular, Navigation | Wide Band | 657.5MHz, 750MHz, 767.5MHz, 892MHz, 1.5865GHz, 1.955GHz, 2.0025GHz, 2.4GHz, 2.545GHz, 3.6GHz, 5.4GHz, 5.55GHz | 617MHz ~ 698MHz, 698MHz ~ 790MHz, 790MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 4.9GHz ~ 5.95GHz | Module | 12 | 2:1 | - | 3dBi | 50 W | Filter | SMA | IP67 | - | - | Stud | 1.339" (34.00mm) | 2G, 3G, 5G, Bluetooth, Cellular, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|
MFB8133RF ANT 836MHZ WHIP STR N TYPE |
3,199 | - |
|
Datasheet | MFB | Tube | Active | General ISM | UHF (300MHz ~ 1GHz) | 836MHz | 806MHz ~ 866MHz | Whip, Straight | 1 | - | - | 3dBi | 150 W | - | N Type Female | - | - | - | Pole Mount | 27.953" (710.00mm) | ISM, LoRa, LPWAN |
|
MFB4600RF ANT 465MHZ WHIP STR N TYPE |
4,041 | - |
|
Datasheet | MFB | Tube | Active | General ISM | UHF (300MHz ~ 1GHz) | 465MHz | 460MHz ~ 470MHz | Whip, Straight | 1 | 1.5 | - | - | 250 W | - | N Type Male | - | - | - | Pole Mount | 30.000" (762.00mm) | ISM, LoRa, LPWAN |
|
|
MFB4500RF ANT 455MHZ WHIP STR N TYPE |
4,363 | - |
|
Datasheet | MFB | Tube | Active | General ISM | UHF (300MHz ~ 1GHz) | 455MHz | 450MHz ~ 460MHz | Whip, Straight | 1 | 1.5 | - | - | 250 W | - | N Type Male | - | - | - | Pole Mount | 30.000" (762.00mm) | ISM, LoRa, LPWAN |
