RF Antennas
Compare the current RF Antennas RF and Wireless selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GL125-DLTEMIMOCOACH II -PERMANENT MOUNT |
1,633 | - |
|
Datasheet | Coach™ II | Box | Active | - | Wide Band | 1.22GHz, 1.5575GHz | 1.15GHz ~ 1.29GHz, 1.5GHz ~ 1.615GHz | Module | 2 | 2:1 | - | 28dBi | 25 W | LNA, Filter | - | IP67 | - | - | - | 3.622" (92.00mm) | BeiDou, Bluetooth, Cellular, Galileo, GLONASS, GNSS, GPS, Wi-Fi |
|
|
GL125-DLTEMIMO-SMCOACH II 5G CELLULAR GNSS MULTI |
2,833 | - |
|
Datasheet | Coach™ II | Box | Active | Cellular, Navigation, WiFi | Wide Band | 649MHz, 750MHz, 892MHz, 1.955GHz, 2.45GHz, 2.495GHz, 3.6GHz, 5.4125GHz | 600MHz ~ 698MHz, 698MHz ~ 802MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.5GHz, 2.4GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 4.9GHz ~ 5.925GHz | Module | 1 | 3 | - | 5.1dBi | 25 W | Filter | SMA | IP67 | - | - | Stud | 3.622" (92.00mm) | BeiDou, Bluetooth, Cellular, Galileo, GLONASS, GNSS, GPS, Wi-Fi |
|
BOA2177RF ANT 219.5MHZ WHIP N TYP F BRK |
4,564 | - |
|
Datasheet | - | Tube | Active | - | VHF (f < 300MHz) | 219.5MHz | 217MHz ~ 222MHz | Whip, Straight | 1 | 2 | - | 7.1dBi | 250 W | - | N Type Female | - | - | - | Bracket Mount | 150.984" (383.50cm) | - |
|
|
MHO5GFR1NF5G FR1 600MHZ-6GHZ OMNI ANTENNA |
4,600 | - |
|
Datasheet | - | Box | Active | Cellular | Wide Band | 628.5MHz, 768MHz, 928MHz, 1.855GHz, 2.2GHz, 2.55GHz, 3.75GHz, 5.412GHz | 617MHz ~ 640MHz, 640MHz ~ 896MHz, 896MHz ~ 960MHz, 1.71GHz ~ 2GHz, 2GHz ~ 2.4GHz, 2.4GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 5.925GHz | Whip, Straight | 8 | 2.5, 2.7, 3, 3.1, 3.5, 4.5 | - | 1.81dBi, 2.38dBi, 1.81dBi, 3.43dBi, 3.68dBi, 3.17dBi, 5.87dBi, 4.33dBi | 25 W | - | N Type Female | IP67 | - | - | Bracket Mount | 10.500" (266.70mm) | 5G |
|
|
GNSS-L1256-40TNCRF ANT GNSS 40DB PRECIS TNCF LP |
1,150 | - |
|
Datasheet | - | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.22GHz, 1.5575GHz | 1.15GHz ~ 1.3GHz, 1.5GHz ~ 1.615GHz | Dome | 2 | 2 | - | 3dBic, 3dBic | - | LNA | TNC Female | IP67 | - | - | Bracket Mount, Through Hole | 1.575" (40.00mm) | BeiDou, Galileo, GLONASS, GNSS, GPS |
|
MCMI24583RPSMARF ANT 4.15GHZ MOD RP-SMA CEILNG |
1,263 | - |
|
Datasheet | - | Box | Obsolete | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 4.15GHz | 2.3GHz ~ 6GHz | Module | 1 | 2 | - | 3.5dBic | 10 W | - | RP-SMA | - | - | - | Ceiling Mount | 0.181" (4.60mm) | Bluetooth, Wi-Fi |
|
ST-CA7002700-PTNFRF ANT MULT-BAND CEILING MT OMNI |
4,658 | - |
|
Datasheet | * | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

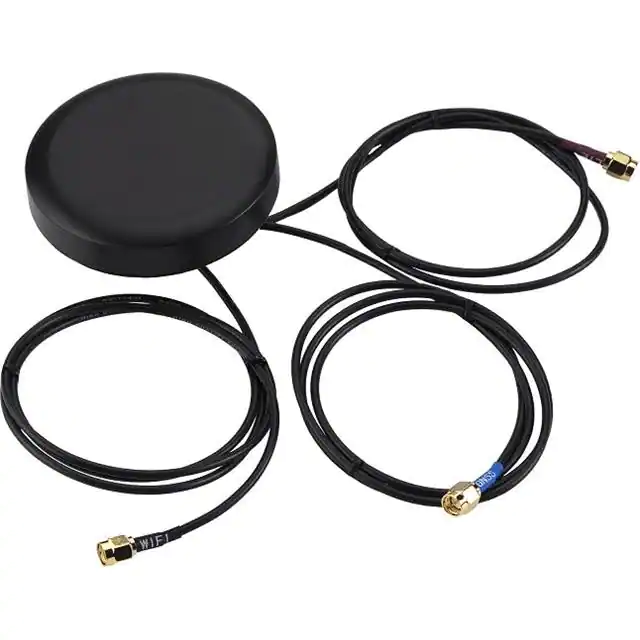

GNSS4GSMRF ANT 829MHZ MOD SMA M STUD/TH |
3,631 | - |
|
Datasheet | - | Bulk | Obsolete | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.205GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Module | 2 | 2 | - | 5dBi | - | Cable - 5m, LNA | SMA Male (2) | IP67 | - | - | Stud, Through Hole | 5.906" (150.00mm) | 2G, 3G, 5G, Bluetooth, Cellular, GNSS, GPS, ISM, LoRa, LPWAN, LTE, Wi-Fi |
|
|
GNSS4GBTSMRF ANT 829MHZ MOD RP-SMA M STUD |
2,904 | - |
|
Datasheet | - | Bulk | Obsolete | Cellular, Navigation, WiFi | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 1.575GHz, 1.596GHz, 1.602GHz, 2.205GHz, 2.44GHz | 698MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.7GHz, 2.4GHz ~ 2.4835GHz | Module | 5 | 2 | - | 5dBi, 5dBic, 3dBi | - | Cable - 5m, LNA | RP-SMA Male (1), SMA Male (2) | IP67 | - | - | Stud, Through Hole | 5.906" (150.00mm) | 2G, 3G, 5G, Bluetooth, Cellular, GNSS, GPS, ISM, LoRa, LPWAN, LTE, Wi-Fi |
|
3971D-HRRF ANT 1.575GHZ DOME TNC BRKT MT |
3,489 | - |
|
Datasheet | - | Bulk | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Dome | 1 | - | - | 3dBic, -2dBic | - | LNA, Filter | TNC | IP67 | - | - | Bracket Mount, Through Hole | 0.827" (21.00mm) | GNSS, GPS |
RF Antennas FAQ
How can I narrow the current RF Antennas selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete RF Antennas parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
