RF Antennas
Compare the current RF Antennas RF and Wireless selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2195760-1WIFI DUAL BAND + GNSS, SINGLE FE |
10,181 | - |
|
Datasheet | - | Bag | Obsolete | 802.15.4, Bluetooth, Navigation, WiFi | Wide Band | 1.5825GHz, 2.45GHz, 5.5125GHz | 1.559GHz ~ 1.606GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 3 | 2.5 | - | 1dBi, 3dBi | 10 W | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.591" (15.00mm) | Bluetooth, GNSS, Wi-Fi, Zigbee™ |
|
1513169-1RF ANT 850MHZ PCB TRACE SLDR TH |
2,888 | - |
|
Datasheet | - | Bulk | Active | 802.15.4, Cellular | UHF (300MHz ~ 1GHz) | 850MHz | 824MHz ~ 894MHz | PCB Trace | 1 | 2.5 | - | 2dBi | 10 W | - | Solder | - | - | - | Through Hole | 0.600" (15.24mm) | GSM, ZigBee™ |
|
2108517-2RF ANT 2.4GHZ STAMPED MET SLD |
3,613 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Stamped Metal | - | - | - | - | - | - | Solder | - | - | - | Surface Mount | 0.189" (4.80mm) | Wi-Fi |
|

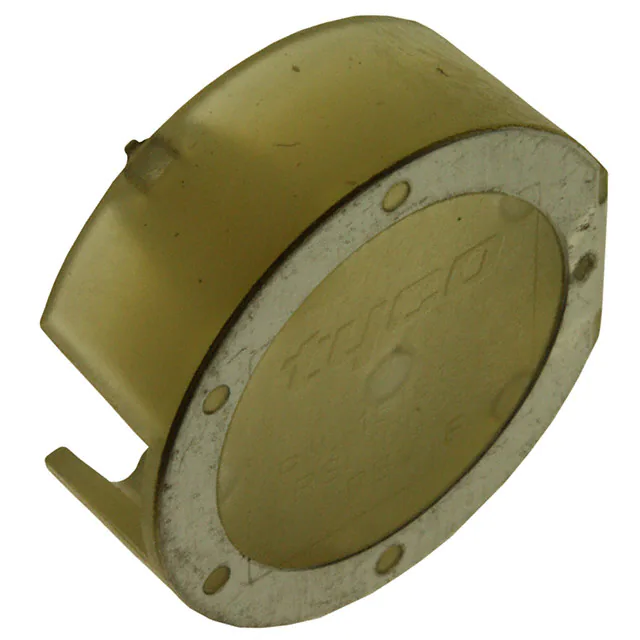

1513151-1RF ANT 2.4GHZ MOLDED SOLDER SMD |
4,298 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Molded | 1 | - | - | - | - | - | Solder | - | - | - | Surface Mount | 0.238" (6.05mm) | - |
|
1513259-9RF ANT 892MHZ/1.85GHZ PCB TRACE |
1,652 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.85GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | PCB Trace | 2 | 3 | - | 1dBi | - | - | Solder | - | - | - | Surface Mount | 0.062" (1.57mm) | CDMA, GSM, LTE |
|
1513259-1RF ANT 850/900MHZ PCB TRACE SLD |
2,366 | - |
|
Datasheet | - | Bulk | Obsolete | 802.15.4, Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | PCB Trace | 4 | 3 | - | 1dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.062" (1.57mm) | CDMA, GSM, LTE, ZigBee™ |
|

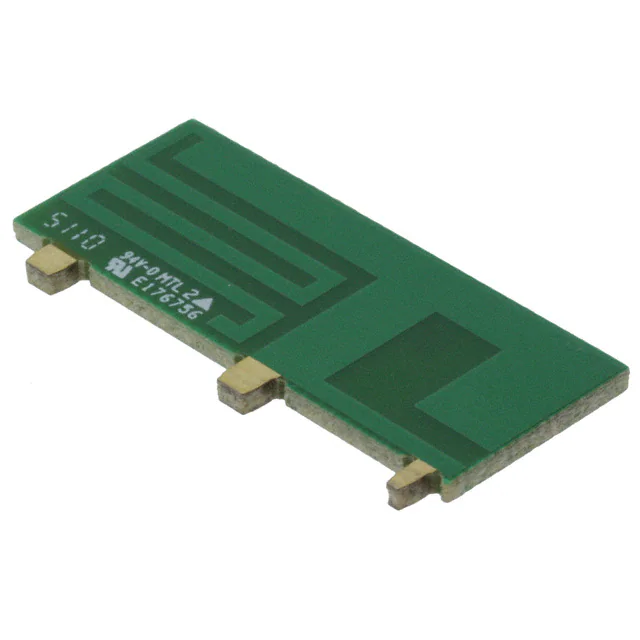

1513434-1RF ANT 920MHZ/1.8GHZ PCB TRACE |
1,877 | - |
|
Datasheet | - | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 920MHz, 1.8GHz | 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz | PCB Trace | 2 | 2.5 | - | 0dBi, 1dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.062" (1.57mm) | - |
|
2195764-1GPS+ GLONASS / ACM4-5036-A1-CC-S |
589 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.5925GHz | 1.57GHz ~ 1.615GHz | Chip | 1 | 2 | - | 3.2dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.028" (0.70mm) | GNSS |
|
1513430-1RF ANT 2.4GHZ PCB TRACE SLDR SMD |
4,333 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | PCB Trace | 1 | 2 | - | 0dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.031" (0.79mm) | Bluetooth, WLAN, Zigbee™ |
|
|
1513472-8ANTENNA, BLUETOOTH / WI-FI / WLA |
1,284 | - |
|
Datasheet | - | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44175GHz, 5.5125GHz | 2.4GHz ~ 2.4835GHz, 5.15GHz ~ 5.875GHz | Module | 2 | 3 | - | 3dBi | 10 W | Cable - 250mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 0.394" (10.00mm) | 802.11a/b/g/n, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
RF Antennas FAQ
How can I narrow the current RF Antennas selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete RF Antennas parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
