RF Antennas
Compare the current RF Antennas RF and Wireless selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

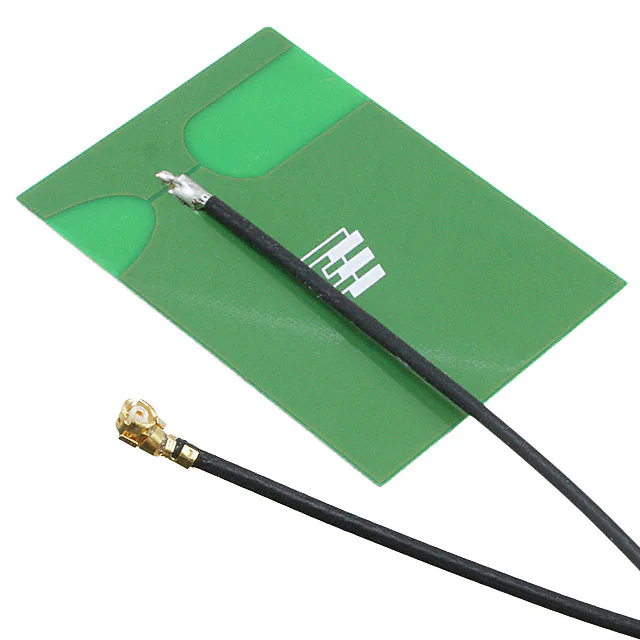

2118060-1RF ANT 3.1/5.5GHZ FLT U.FL 350MM |
16,201 | - |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 3.1GHz, 5.5GHz | 2.3GHz ~ 3.8GHz, 5.15GHz ~ 5.875GHz | Flat Patch | 2 | 3 | - | 2dBi | 3 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.012" (0.30mm) | Bluetooth, WLAN, Zigbee™ |
|
2108793-1902~928 & 2400~2483.5 DUAL BAND |
4,348 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 915MHz, 2.44GHz | 902MHz ~ 928MHz, 2.4GHz ~ 2.4835GHz | PCB Trace | 2 | 2 | - | 2dBi, 2.1dBi | - | Cable - 185mm | MMCX | - | - | - | Adhesive | 0.012" (0.30mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
1513472-5RF ANT 2.4GHZ/5.5GHZ MODULE CAB |
614 | - |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.483.5GHz, 5.15GHz ~ 5.875GHz | Module | 2 | 3 | - | 3dBi | 10 W | Cable - 360mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 0.394" (10.00mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
2118879-2FPC ANTENNA,CABLE,SMA,690-2700MH |
727 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Cellular, General ISM | Wide Band | 829MHz, 859MHz, 869MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.5GHz | 698MHz ~ 960MHz, 824MHz ~ 894MHz, 868MHz ~ 870MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | PCB Trace | 8 | 3 | - | 3.9dBi | - | Cable - 120mm | SMA | - | - | - | Adhesive | 0.008" (0.20mm) | CDMA, GSM, ISM, LTE, UMTS, ZigBee™ |
|

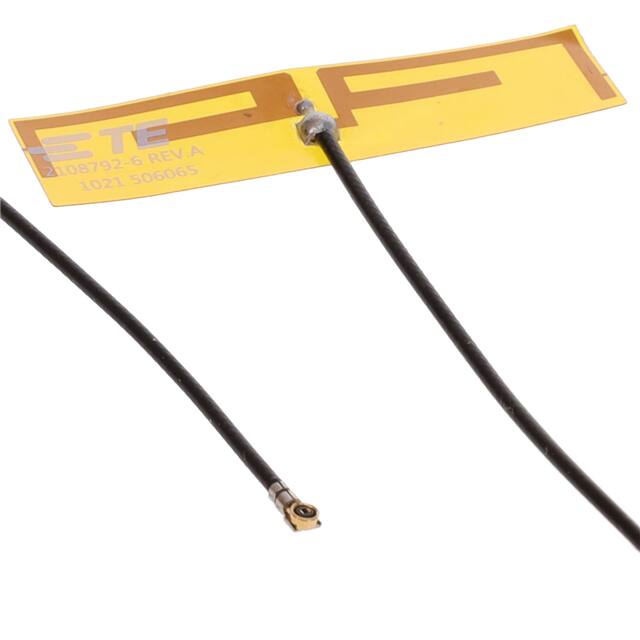

2108792-6FPC ANT, MHF 4L, 50MM, WI-FI 6E |
4,004 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.5dBi | - | Cable - 50mm | MHF4L | - | - | - | Adhesive | 0.005" (0.12mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
2108851-1CHIP ANT., SMD, UWB 5900-8300MHZ |
3,283 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | UWB | SHF (f > 4GHz) | 7.1GHz | 5.9GHz ~ 8.3GHz | Chip | 2 | 2.1 | - | 4.1dB | - | - | - | - | - | - | Surface Mount | 0.047" (1.20mm) | UWB |
|
2195852-1PCB ANT, 5G-2G CAT-M, WORLD BAND |
4,643 | - |
|
Datasheet | - | Box | Active | Cellular, Navigation | Wide Band | 829MHz, 1.525GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz | 698MHz ~ 960MHz, 1.42GHz ~ 1.63GHz, 1.71GHz ~ 2.7GHz, 3.2GHz ~ 3.8GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 6 | 3 | - | 4.5dBi | - | - | PCB | - | - | - | Through Hole | 0.062" (1.58mm) | 4G, LTE, GNSS |
|
2108792-2FPC ANT, MHF, 50MM, WI-FI 6E TRI |
3,414 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.5dBi | - | Cable - 50mm | MHF | - | - | - | Adhesive | 0.005" (0.12mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
2195851-1PCB ANT, TAB MOUNT, 698-71250MHZ |
4,225 | - |
|
Datasheet | - | Box | Active | Cellular, Navigation | Wide Band | 829MHz, 1.525GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz, 6.525GHz | 698MHz ~ 960MHz, 1.42GHz ~ 1.63GHz, 1.71GHz ~ 2.7GHz, 3.2GHz ~ 3.8GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 7 | 3 | - | 4.6dBi | - | - | PCB | - | - | - | Through Hole | 0.062" (1.58mm) | 4G, LTE, GNSS |
|
|
2108965-2FPC ANT, MHF, 100MM, UWB 6~8.5 G |
2,447 | - |
|
Datasheet | - | Bag | Active | Ultra Wide Band | Wide Band | 7.2GHz | 6GHz ~ 8.5GHz | Flat Patch | 1 | 2.1 | - | 4dBi | 10 W | Cable - 100mm | MHF | - | - | - | Adhesive | 0.006" (0.15mm) | UWB |
RF Antennas FAQ
How can I narrow the current RF Antennas selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete RF Antennas parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
