RF Antennas
Compare the current RF Antennas RF and Wireless selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

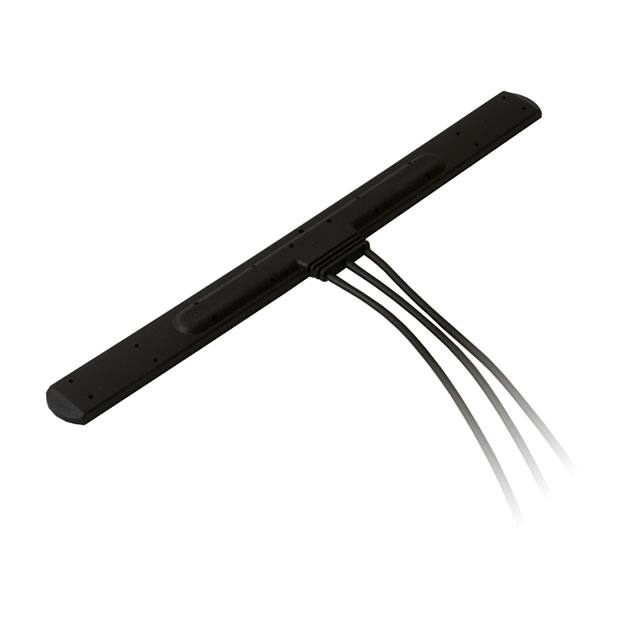

MT-14B-AS-LKWE015GNR / LTE AND WIFI ANTENNA |
2,456 | - |
|
Datasheet | 14 | Bulk | Active | Cellular, WiFi | Wide Band | 761MHz, 892MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.495GHz, 5.8GHz | 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz | Flat Bar | 9 | 2, 3 | -6dB, -10dB | 3.24dBi, 3.66dBi, 2.87dBi, 4.64dBi, 4.64dBi, 3.97dBi, 4.21dBi, 4.31dBi, 4.91dBi, 4.07dBi, 4.63dBi, 3.98dBi, 3, 84dBi, 4.01dBi | - | Cable - 3m | - | - | - | - | Adhesive | 0.297" (7.55mm) | 5G, DCS, GSM, LTE, PCS, UMTS, Wi-Fi |
|
H1S600000006AU3-IN-1 COMBO EXTERNAL ANTENNA |
3,531 | - |
|
Datasheet | - | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 761MHz, 892MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.495GHz, 3.55GHz, 5.8GHz | 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz | Module | 14 | 2, 4.5, 3, 3.5, 2.5 | -4dB, -6dB, -5.5dB, -10dB, -8dB | 1.06dBi, 2.8dBi, 1.21dBi, 1.21dBi, 1.44dBi, 8.21dBi, 8.72dBi, 8.72dBi, 8.14dBi, 7.27dBi | - | Cable - 300mm | SMA Male | IPX7 | - | - | Screw Mount | 1.492" (37.90mm) | 5G, DCS, Beidou, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi |
|
MT-15B-AS-BLLWWW016 IN 1 COMBO EXTERNAL ANTENNA |
4,008 | - |
|
Datasheet | 15 | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 761MHz, 892MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.495GHz, 3.55GHz, 5.5375GHz, 5.8GHz | 698MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5.15GHz | Module | 13 | 2, 3 | -6dB, -10dB | 2.4dBi, 2.74dBi, 1.21dBi, 1.21dBi, 1.44dBi, 3.57dBi, 4.53dBi, 3.26dBi, 2.02dBi, 3.07dBi, 2.98dBi, 4.94dBi, 4.78dBi, 3.62dBi, 5.31dBi, 3.93dBi, 3.1dBi | - | - | SMA Male | IP67 | - | - | Adhesive | 0.606" (15.40mm) | 5G, DCS, Beidou, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi |
|
TA-24B-A-L01LTE TERMINAL ANTENNA |
1,268 | - |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 761MHz, 892MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz | 698MHz, 824MHz, 1.71GHz, 1.85GHz, 1.92GHz, 2.3GHz ~ 824MHz, 960MHz, 1.88GHz, 1.99GHz, 2.17GHz, 2.69GHz | Whip, Right Angle | 6 | 7.28, 7.28, 2, 3, 3, 3.5 | -2.4dB, -2.4dB, -10dB, -6dB, -6dB, -5dB | 3.85dBi, 2.59dBi, 4.17dBi, 4.31dBi, 4.31dBi, 3.28dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.890" (48.00mm) | LTE |
|
H2MA000D100100GNSS+LTE EXTERNAL ANTENNA |
2,853 | - |
|
Datasheet | - | Bulk | Active | Cellular, Navigation | Wide Band | 829MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.94GHz, 2.35GHz, 2.6GHz, 3.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz, 3.4GHz ~ 3.8GHz | Module | 8 | 2, 3 | - | 0.5dBi, 1.6dBi, 2.2dBi, 2.4dBi, 2.6dBi, 3dBi | - | Cable - 2m, LNA | SMA Male | - | - | - | Adhesive | 0.669" (17.00mm) | Beidou, Galileo, GLONASS, GPS, GNSS, LTE |
|
H2M1W031129900ANTENNA MODULE NB40DG; GPS(L1+L5 |
2,586 | - |
|
Datasheet | - | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.575GHz, 1.602GHz | - | Ceramic Patch | 3 | - | -10dB | 2.7dBi, 4.8dBi, 3.9dB | - | Cable - 83.5mm, LNA | I-PEX | - | - | - | Adhesive | 0.423" (10.75mm) | GLONASS, GPS |
|
|
H2U84W1H1S0300DUAL BAND WIFI TELA CERAMIC CHIP |
3,651 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Chip | 2 | 2 | - | 1.4dBi, 2.3dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | 802.11a/b/g/n/ac, Wi-Fi |
|
H2B1PD1A1C305LDUAL BAND WIFI 2400-2500 4900-59 |
4,014 | - |
|
Datasheet | - | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | PCB Trace | 2 | 2 | - | 2.6dBi, 3.3dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.020" (0.50mm) | 802.11a/b/g/n, Wi-Fi |
|
|
H2U64U1H2J0100433MHZ ISM 433-434.8MHZ TELA CHI |
2,163 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 433.92MHz | 433.05MHz ~ 434.79MHz | Chip | 1 | 2 | - | 0.2dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | ISM |
|
|
H2U66J1K2B0100868MHZ ISM 863-870MHZ MONOPOLE C |
3,372 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 866.5MHz | 863MHz ~ 870MHz | Chip | 1 | 2 | - | -0.6dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | ISM |
RF Antennas FAQ
How can I narrow the current RF Antennas selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete RF Antennas parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
