RF Antennas
Browse available RF Antennas components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACAG0301-1575-TRF ANT 1.575GHZ CHIP SOLDER SMD |
30,541 | - |
|
Datasheet | ACAG | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Chip | 1 | 2 | - | 4.18dBi | - | - | Solder | - | - | - | Surface Mount | 0.024" (0.60mm) | GPS |
|

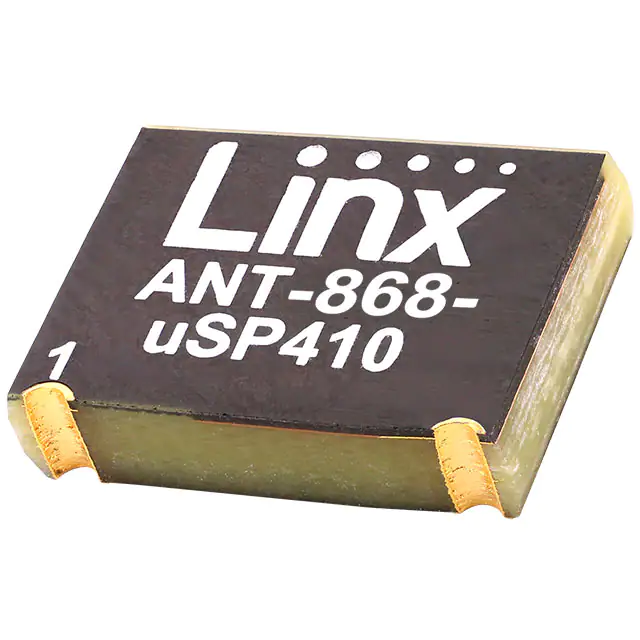

ANT-868-USP410RF ANT 868MHZ CHIP SOLDER SMD |
1,715 | - |
|
Datasheet | uSP410 | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 862MHz ~ 876MHz | Chip | 1 | 2.1 | -9dB | 0.7dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.114" (2.90mm) | ISM, LoRaWAN, LPWA, Sigfox |
|

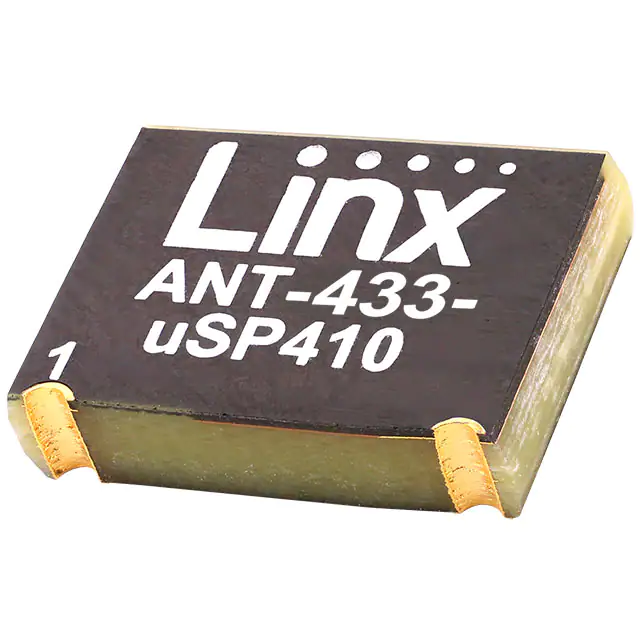

ANT-433-USP410RF ANT 433MHZ CHIP SOLDER SMD |
511 | - |
|
Datasheet | uSP410 | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 430MHz ~ 435MHz | Chip | 1 | 1.6 | -12.7dB | -8dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.114" (2.90mm) | ISM, LoRaWAN, LPWA |
|
2195835-3ISM 868 / 915 MHZ ANTENNA |
7,042 | - |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 863MHz ~ 928MHz | PCB Trace | 2 | 2.3 | - | 1.4dBi | 10 W | Cable - 150mm | MHF | - | - | - | Adhesive | 0.008" (0.20mm) | ISM |
|
|
W3334B0290ANTENNA 2.4/5GHZ/DSRC |
2,262 | - |
|
Datasheet | Internal Antenna | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.45GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | PCB Trace | 2 | 2 | -10dB | 4dBi, 5.5dBi | - | Cable - 290mm | U.FL | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
H2B1WD1A3B0200WIFI TRIPLE BAND WT32D1-KX 001 |
654 | - |
|
Datasheet | - | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 3dBi, 4dBi, 4dBi | - | Cable - 119mm | I-PEX MHF1 | - | - | - | Adhesive | 0.059" (1.50mm) | 802.11a/b/g/-c, Wi-Fi 6, Wi-Fi 6E |
|
|
YF0027AAFLEX ANTENNA WIFI 6 100MM UFL |
4,550 | - |
|
Datasheet | - | Bulk | Active | Bluetooth, WiFi | Wide Band | 2.45GHz, 5.375GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz, 5.925GHz ~ 71.25GHz | Flat Patch | 3 | - | - | - | - | Cable - 100mm | I-PEX | - | - | - | Adhesive | 1.654" (42.00mm) | Bluetooth, Wi-Fi, WLAN |
|
|
YC0002AAEMBEDDED CELLULAR ANTENNA |
3,548 | - |
|
Datasheet | - | Tape & Reel (TR) | Not For New Designs | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Chip | 2 | 3 | - | 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | 4G, LTE |
|
|
YC0017BAEMBEDDED CELLULAR ANTENNA |
2,616 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular | Wide Band | 830MHz, 2.205GHz, 3.6GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.4GHz ~ 3.8GHz | Chip | 3 | 4 | - | 4dBi | - | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | LTE |
|
|
YFGA007AAGNSS FPC ANTENNA L1/L2/L5 1176.4 |
2,520 | - |
|
Datasheet | - | Bulk | Active | Navigation | Wide Band | 1.18GHz, 1.58GHz | - | Flat Patch | 2 | - | - | - | - | Cable - 115mm | I-PEX-1 | - | - | - | Adhesive | 0.005" (0.12mm) | GNSS |
|
|
YC0017DA4G SMD CHIP ANTENNA, 25 X 7 X 3M |
1,954 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular | Wide Band | 2.25GHz | 698MHz ~ 3.8GHz | Chip | 1 | - | - | - | - | - | - | - | - | - | Surface Mount | 0.118" (3.00mm) | 2G, 3G, 4G |
|
|
YF0026AAWIFI/BT ANTENNA |
866 | - |
|
Datasheet | - | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | 2 | - | 5.5dBi | - | Cable - 100mm | I-PEX MHF1 | - | - | - | Surface Mount | 0.005" (0.12mm) | Wi-Fi |
|
|
W3092RF ANT 2.4GHZ CHIP SOLDER SMD |
1,026 | - |
|
Datasheet | The Blue Dot | Tape & Reel (TR) | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483GHz | Chip | 1 | 3 | - | 0.8dBi | - | - | Solder | - | - | - | Surface Mount | 0.022" (0.55mm) | Bluetooth, Wi-Fi |
|
2195835-1ISM 868 / 915 MHZ ANTENNA |
2,000 | - |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 863MHz ~ 928MHz | PCB Trace | 2 | 2.3 | - | 1.4dBi | 10 W | Cable - 50mm | MHF | - | - | - | Adhesive | 0.008" (0.20mm) | ISM |
|
|
YF0007BAEMBEDDED CELLULAR ANTENNA |
471 | - |
|
Datasheet | - | Bag | Not For New Designs | Cellular | Wide Band | 780MHz, 1.6934GHz, 1.9GHz, 2.5GHz | 600MHz ~ 960MHz, 1.4279GHz ~ 1.4959GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | PCB Trace | 4 | 5 | - | 4.7dBi | - | - | - | - | - | - | Surface Mount | 0.033" (0.85mm) | LTE |
|
|
YF0029AAFLEX , WIFI DUAL BAND,100MM,UFL |
1,313 | - |
|
Datasheet | - | Bulk | Not For New Designs | WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | 2.3 | - | 6.64dBi, 6.64dBi, 6.64dBi | - | - | I-PEX MHF | - | - | - | Adhesive | 0.005" (0.12mm) | Wi-Fi |
|
|
YF0023CAFLEX PCB ANTNA WIFI 6 100MM UFL |
249 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular, WiFi | Wide Band | 2.45GHz, 5.375GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | - | -8.8dB | 7dBi, 7dBi, 7dBi | - | - | - | - | - | - | Adhesive | 0.004" (0.10mm) | Wi-Fi |
|
ANT-GNSSCP-TH25L1RF ANT GNSS PATCH L1 25X25 PIN |
214 | - |
|
Datasheet | GNSSCP | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.567GHz ~ 1.609GHz | Ceramic Patch | 3 | 5.6, 2.1, 1.7 | -3.1dB, -9dB, -11.7dB | 3.5dBi, 4dBi, 4dBi | 8 W | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
2118900-1GNSS , GPS AND GLONASS, CHIP ANT |
2,864 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.581GHz | 1.56GHz ~ 1.602GHz | Chip | 1 | 2 | - | - | 3 W | - | - | - | - | - | Surface Mount | 0.039" (1.00mm) | GNSS |
|
2108838-1CHIP ANT., SMD, BT/WI-FI 2.4GHZ |
24,589 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2:1 | - | 2.4dBi | - | - | - | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, Wi-Fi, Zigbee™ |
