RF Antennas
Browse available RF Antennas components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-GNFPC-SHL1200M4RF ANT GNSS FPC L1 200MM MHF4 |
2,093 | - |
|
Datasheet | ANT-GNFPC-SHL1 | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.601GHz, 1.602GHz | - | Flat Patch | 4 | 1.6, 1.9 | - | 3.2dBi, 3.2dBi, 2.6dBi, 2.6dBi | 2 W | Cable - 200mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
21233001502.4/5GHZ MIMO 4X4 FLEXIBLE ANTEN |
2,076 | - |
|
Datasheet | 212330 | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5GHz | 2.4GHz ~ 2.4835GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 2 | - | -4dB, -5dB, -10dB | 3.6dBi, 4.5dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
|
TQ0126AA0000RF ANT 1604MHZ CERAMIC PATCH PIN |
3,104 | - |
|
Datasheet | - | Active | - | - | 1.604GHz | - | Ceramic Patch | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
TQ0124AA0000RF ANT 1652MHZ CERAMIC PATCH PIN |
4,290 | - |
|
Datasheet | - | Active | - | - | 1.652GHz | - | Ceramic Patch | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
ANT-W63-FPC-SAH150M4ANT WIFI6/6E FPC SQR 150MM MHF4 |
3,139 | - |
|
Datasheet | ANT-W63-FPC-SAH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz, 6.5375GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Flat Patch | 3 | 2.4, 3.4 | - | 0.6dBi, 7.2dBi, 6.3dBi | 2 W | Cable - 150mm | I-PEX MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11b/g/ac/ax, Bluetooth, ISM, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee™ |
|
|
MAF94006RF ANT 2.4GHZ/5.5GHZ WHIP TILT |
1,826 | - |
|
Datasheet | WTC | Bulk | Obsolete | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Whip, Tilt | 2 | - | - | 2.5dBi, 5.2dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Snap-In | 4.900" (124.46mm) | Bluetooth, WLAN |
|
APRA2504F00ZRF ANT GPS+IRIDIUM CER PATCH |
2,713 | - |
|
Datasheet | APRA | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.6175GHz | 1.574GHz ~ 1.576GHz, 1.61GHz ~ 1.625GHz | Ceramic Patch | 2 | 3 | - | 2dBi, 3dBi | - | - | Solder | - | Automotive | AEC-Q200 | Adhesive, Through Hole | 0.157" (4.00mm) | GPS |
|
2144141001ISM/DSRC ANTENNA_HINGED_W_M |
3,086 | - |
|
Datasheet | 214414 | Tray | Obsolete | General ISM | SHF (f > 4GHz) | 5.9GHz | 5.8GHz ~ 6GHz | Whip, Tilt | 1 | - | -10dB | 3.9dBi | - | - | SMA Male | - | - | - | Connector Mount | 4.268" (108.40mm) | DSRC, ISM |
|
|
2144141011ISM/DSRC ANTENNA_HINGED_W_F |
2,293 | - |
|
Datasheet | 214414 | Tray | Obsolete | General ISM | SHF (f > 4GHz) | 5.9GHz | 5.8GHz ~ 6GHz | Whip, Tilt | 1 | - | -10dB | 3.9dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 4.268" (108.40mm) | DSRC, ISM |
|
|
W320725X25X4MMGPS/GLONASS/BEIDOU PIN |
1,206 | - |
|
Datasheet | Ceramic Patch | Bulk | Active | Navigation | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.563GHz,1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz | Ceramic Patch | 3 | - | -4dB | 1dBi | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
ANT-GNFPC-SHL150UFRF ANT GNSS FPC L1 50MM UFL |
2,153 | - |
|
Datasheet | ANT-GNFPC-SHL1 | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.601GHz, 1.602GHz | - | Flat Patch | 4 | 1.6, 1.9 | - | 3.2dBi, 3.2dBi, 2.6dBi, 2.6dBi | 2 W | Cable - 50mm | MHF1, U.FL | - | - | - | Adhesive | 0.004" (0.10mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
YFGC040WWAINT,GPS&GNSS,CERAMIC,-,NA,1559-1 |
2,146 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
W3907BD0350ANTENNA TE DIVERSITY |
3,274 | - |
|
Datasheet | Gemini | Box | Active | Cellular | Wide Band | 829MHz, 1.4694GHz, 1.5845GHz, 1.9475GHz, 2.5GHz, 3.5GHz | 698MHz ~ 960MHz, 1.4279GHz ~ 1.5109GHz, 1.559GHz ~ 1.61GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz, 3.4GHz ~ 3.6GHz | PCB Trace | 6 | - | -6dB, -7.5dB | 1dBi, 1.1dBi, 1.4dBi, 2.2dBi, 2dBi, 1.4dBi | 3 W | Cable - 350mm | I-PEX MHF4 | - | - | - | Surface Mount | - | 2G, 3G, 4G, LTE |
|
ANT-916-PMBRF ANT 916MHZ WHIP RA SCREW-MT |
4,931 | - |
|
Datasheet | PMB | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 916MHz | 902MHz ~ 928MHz | Whip, Right Angle | 1 | 2 | - | - | - | - | Screw-Mount | - | - | - | Panel Mount | 3.543" (90.00mm) | - |
|

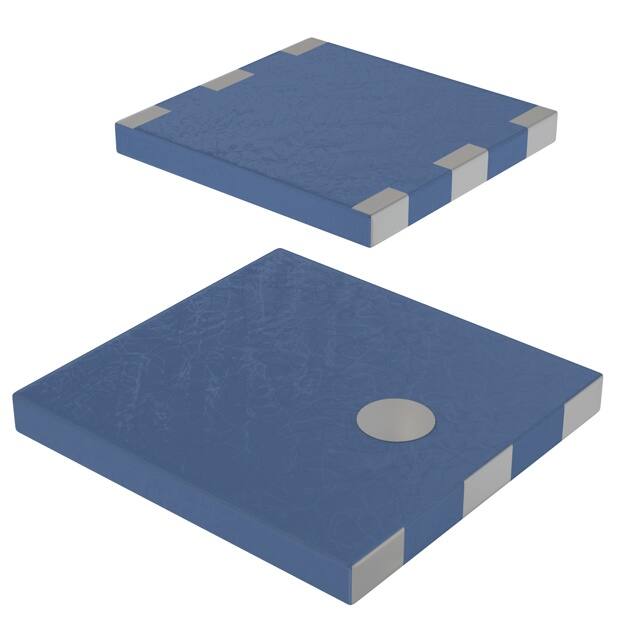

CAN4311117002521KANTENNA 802.11A/B DUAL BAND SMD |
1,835 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.2GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.25GHz | Chip | 2 | 2.5 | - | 0dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.035" (0.90mm) | - |
|
|
1513472-7ANTENNA, BLUETOOTH / WI-FI / WLA |
1,383 | - |
|
Datasheet | - | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44175GHz, 5.5125GHz | 2.4GHz ~ 2.4835GHz, 5.15GHz ~ 5.875GHz | Module | 2 | 3 | - | 3dBi | 10 W | Cable - 590mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 0.394" (10.00mm) | 802.11a/b/g/n, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
0470110002CATALINA ANTENNA EU VERSION |
4,410 | - |
|
Datasheet | 47011 | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TQ0196AW0000RF ANT 7370MHZ CERAMIC CHIP SMD |
4,902 | - |
|
Datasheet | - | Active | - | - | 7.37GHz | - | Chip | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
1462340150RF ANT 829MHZ/2.1GHZ FLAT PATCH |
2,279 | - |
|
Datasheet | 146234 | Tray | Obsolete | - | Wide Band | 829MHz, 2.1GHz, 4.35GHz | 698MHz ~ 6GHz | Flat Patch | 3 | - | -4dB, -5dB | 1.7dBi, 2.65dBi, 4.8dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | General Purpose |
|
|
1-1513472-3ANTENNA WITH CABLE ASSEM |
3,688 | - |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
RF Antennas FAQ
What RF Antennas components can I source from EGOO?
You can browse available RF Antennas product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete RF Antennas parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
