RF Antennas
Browse available RF Antennas components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-2.4-FPC-SF100UFANT 2.4 FPC 25X20 100 CBL UFL |
1,460 | - |
|
Datasheet | ANT-2.4-FPC-SF | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.9 | - | 3.9dBi | 2 W | Cable - 100mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
2042811300RF ANT 2.4417/5.415GHZ PCB 300MM |
5,856 | - |
|
Datasheet | 204281 | Tray | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4417GHz, 5.415GHz | 2.4GHz, 5GHz | PCB Trace | 2 | - | -10dB | 1.2dBi, 2.3dBi | - | Cable - 300mm | I-PEX MHF4L | - | - | - | Adhesive | 0.004" (0.10mm) | Wi-Fi, Zigbee™ |
|
2344656-8WLAN DUAL BAND ANTENNA FPC V 200 |
840 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 5dBi | - | Cable - 200mm | U.FL (UMCC), I-PEX MHF4 | - | - | - | Adhesive | 0.007" (0.19mm) | Bluetooth, WLAN, Zigbee™ |
|
SRFG017-100RF ANT 1.561/1.575GHZ FLAT 100MM |
760 | - |
|
Datasheet | Bentoni | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.609GHz | Flat Patch | 1 | 1.45 | -14dB | 4dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | Beidou, Galileo, GLONASS, GPS |
-.JPG "ANT-DK-WF1DI-2AB(C)-")
|
ANT-DK-WF1DI-2AB(C)-RF ANT 2.45GHZ WHIP/TILT CONN |
495 | - |
|
Datasheet | - | Bag | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 1.92 | -10dB | 2dBi | 1 W | - | RP-SMA | - | - | - | Connector Mount | 4.252" (108.00mm) | Wi-Fi |
|
1461530250RF ANT 2.4/5GHZ FLAT PATCH 250MM |
1,711 | - |
|
Datasheet | 146153 | Bulk | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 2 | - | -10dB | 2.4dBi, 3.7dBi | 2 W | Cable - 250mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | WLAN, Zigbee™ |
|
2195846-1FPC ANT, MHF, 50MM, 698-7125 MHZ |
626 | - |
|
Datasheet | - | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.595GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz, 6.525GHz | 698MHz ~ 960MHz, 1.56GHz ~ 1.63GHz, 1.71GHz ~ 2.7GHz, 3.2GHz ~ 3.8GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 7 | 4 | - | 4.99dBi | - | Cable - 50mm | MHF | - | - | - | Adhesive, Chassis Mount | - | 4G, LTE, GNSS |
|
ANT-W63-FPC-LV100M4ANT WIFI6 FPC 45X7 100MM MHF4 |
1,793 | - |
|
Datasheet | ANT-W63-FPC-LV | Bag | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.45GHz, 5.522GHz, 6.537GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Flat Patch | 3 | 1.5, 1.6 | - | 4.8dBi, 6.3dBi, 7.4dBi | 2 W | Cable - 100mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11b/g, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
ANT-W63-FPC-LH100M4ANT WIFI6 FPC 45X7 100MM MHF4 |
279 | - |
|
Datasheet | ANT-W63-FPC-LH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz, 6.5375GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Flat Patch | 3 | 1.4, 1.7, 1.8 | - | 4.5dBi, 6.3dBi, 10.1dBi | 2 W | Cable - 100mm | I-PEX MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11b/g/-c/ax, Bluetooth, ISM, U-NII, Wi-Fi, Zigbee™ |
|
2125700150824~2170MHZ FLEXIBLE ANT SIDE-FE |
2,460 | - |
|
Datasheet | 212570 | Tray | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 2 | - | -5dB | -0.45dBi, 1.76dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | LTE |
|
AFG4507W2S-0200S2.4/5GHZ WIFI FLEXIBLE ANT |
214 | - |
|
Datasheet | AFG | Bulk | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 2 | 3 | - | 8.12dBi | - | Cable - 200mm | I-PEX-1(F) | - | - | - | Adhesive | 0.008" (0.20mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
-.jpg "ANT-DK-DB1DI-2AB(C)-")
|
ANT-DK-DB1DI-2AB(C)-RF ANT 2.45/5.35GHZ WHIP CONN MT |
390 | - |
|
Datasheet | - | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.35GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz | Whip, Tilt | 2 | 1.92 | -10dB | 2dBi | 1 W | - | RP-SMA | - | - | - | Connector Mount | 4.252" (108.00mm) | WLAN |
|

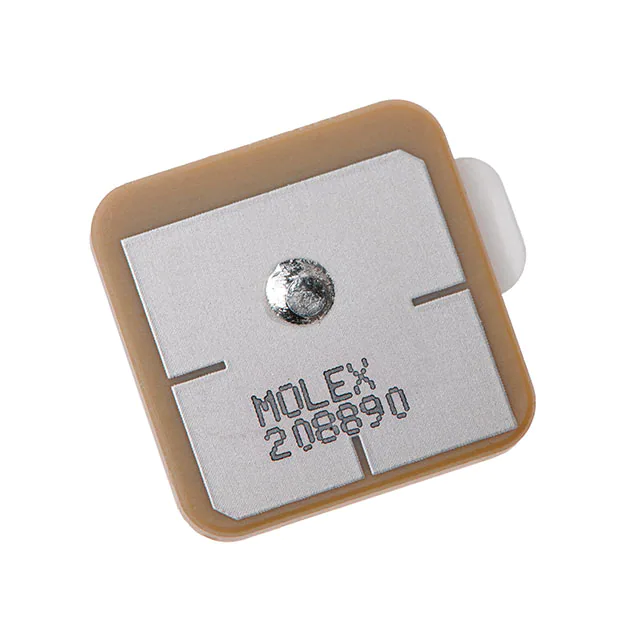

2088900001CERAMIC GPS PATCH ANTENNA |
1,610 | - |
|
Datasheet | 208890 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.575GHz ~ 1.576GHz | Ceramic Patch | 1 | - | -15dB | 2.6dBi | - | - | Pin | - | - | - | Surface Mount | 0.079" (2.00mm) | GNSS, GPS |
|
W3544BRF ANT 850MHZ/900MHZ CHIP SLD |
4,767 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Chip | 5 | - | -6.5dB, -5.7dB, -18.5dB, -13dB | -1.5dBi, -1.1dBi, -1.1dBi, -1.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | GSM |
|
001-0034ANT MFLEXPIFA DUAL 2.4/5GHZ MHF1 |
5,011 | - |
|
Datasheet | mFlexPIFA™ | Bulk | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.4GHz | 2.4GHz ~ 2.48GHz, 4.9GHz ~ 5.9GHz | FlexPIFA | 2 | 2.5, 3 | - | 1.9dBi, 5.8dBi | 10 W | Cable - 120mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.102" (2.60mm) | General Purpose |
|
2361492-2PCB ANTENNA,CABLE,MHF,698-2700MH |
3,766 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | PCB Trace | 3 | 4 | - | 4dBi, 4dBi, 4dBi | - | Cable - 50mm | MHF | - | - | - | Adhesive | 0.039" (1.00mm) | LTE, UMTS, WCDMA |
|
|
PCS.55.AWIDEBAND 5G PCB SMD ANTENNA |
9,256 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular, Navigation | Wide Band | 657.5MHz, 722MHz, 773MHz, 840MHz, 920MHz, 1.472GHz, 1.581GHz, 1.932GHz, 2.595GHz | 617MHz ~ 698MHz, 698MHz ~ 746MHz, 746MHz ~ 800MHz, 800MHz ~ 880MHz, 880MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.56GHz ~ 1.602GHz, 1.71GHz ~ 2.155GHz, 2.5GHz ~ 2.69GHz | Chip | 9 | - | - | -3.3dBi, 0.2dBi, -0.3dBi, -1dBi, -1.8dBi, 0.4dBi, 1.6dBi, 3.7dBi, 0dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | 4G, 5G, BeiDou, Cat-M, Galileo, GLONASS, GNSS, GPS, HSPA, HSPA+, LTE, NB-IoT, NR, WCDMA |
|
2108824-1CHIP ANT., SMD, L1+G1 |
6,910 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5845GHz | 1.559GHz ~ 1.61GHz | Chip | 1 | 1.7 | - | 2.9dBi | - | - | - | - | - | - | Surface Mount | 0.059" (1.50mm) | GNSS |
|
W3918B0100RF ANT 2.4GHZ/5.4GHZ FLAT PATCH |
691 | - |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.925GHz | Flat Patch | 2 | 2 | - | 4dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
GW.40.21532DBI 2.4/5.0~5.8GHZ DIPOLE ANT |
123 | - |
|
Datasheet | - | Bag | Active | Bluetooth | Wide Band | 2.45GHz, 5.375GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz | Whip, Right Angle | 2 | - | - | 3.15dBi, 4.39dBi | 2 W | - | RP-SMA Male | IP65 | - | - | Connector Mount | 4.287" (108.90mm) | Bluetooth, WLAN |
