RF Antennas
Compare the current RF Antennas RF and Wireless selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-200421B77RF ANT, 5G/4G/3G/2G/NB-IOT/CAT M |
164 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 829MHz, 3.855GHz | 698MHz ~ 960MHz, 1.71GHz ~ 6GHz | PCB Trace | 2 | 2.7, 2.8 | -6.6dB, -7.2dB | 0.5dBi, 2.1dBi, -2.6dBi, 3.9dBi | 5 W | Cable - 101mm | I-PEX MHF1 | - | - | - | Adhesive | 0.005" (0.12mm) | 2G, 3G, 4G, 5G, LPWA |
|
|
ANT-20289EB56RF ANT, 2.4G WIFI, OMNI-DIRECTIO |
162 | - |
|
Datasheet | - | Bag | Active | WiFi | Wide Band | 2.45GHz, 6.1125GHz | 2.4GHz ~ 2.5GHz, 5.1GHz ~ 7.125GHz | Whip, Tilt | 2 | 1.5, 2.5 | -7dB, -15dB | 4.5dBi, 5.5dBi, 3dBi, 6.5dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 6.000" (152.40mm) | Wi-Fi |
|
|
ANT-19031EB78RF ANT, 4G/3G/2G (EXTERNAL SUCTI |
158 | - |
|
Datasheet | - | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 892MHz, 2.2GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Whip, Straight | 2 | 2.5, 3 | -6dB, -7dB | -0.5dBi, 1.5dBi, -0.5dBi, 0.5dBi | 5 W | Cable - 2m | SMA Male | - | - | - | Magnetic | 7.283" (185.00mm) | 2G, 3G, 4G |
|
|
ANT-20228WB56RF ANT, 5G&4G&3G&2G/NB-IOT/CAT M |
337 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 780MHz, 2.05GHz, 4.5GHz | 600MHz ~ 960MHz, 1.4GHz ~ 2.7GHz, 3GHz ~ 6GHz | Whip, Tilt | 3 | 4, 5 | -3.5dB, -5dB | -3dBi, 4.5dBi, 0.5dBi, 5dBi, 1dBi, 6dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 7.598" (193.00mm) | 2G, 3G, 4G, 5G, LPWA |
|
ANT-DK-LTE1MD-GAPL52MRF ANT 832MHZ/2.2GHZ WHP STR MAG |
166 | - |
|
Datasheet | - | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 832MHz, 2.2GHz | 704MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Whip, Straight | 2 | 1.92 | -10dB | 5dBi | 20 W | Cable - 2m | SMA | - | - | - | Magnetic | 4.409" (112.00mm) | LTE |
|

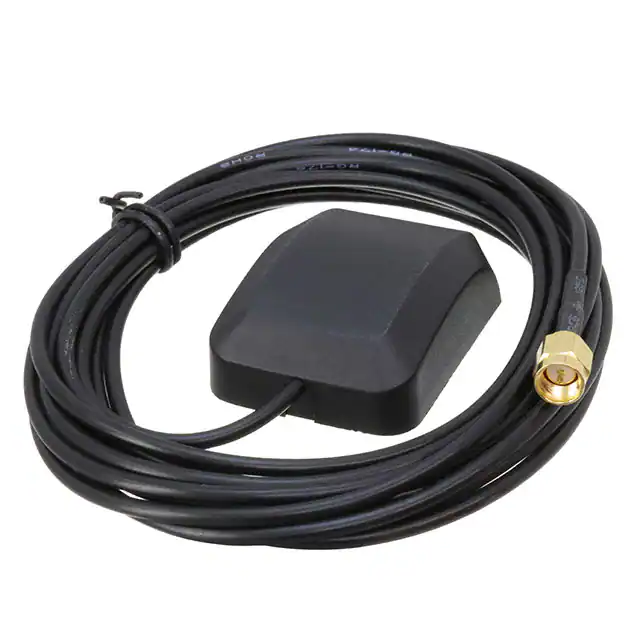

ANT-DK-GP1FP-GAP3M-1RF ANT 1.575GHZ MOLDED SMA MAGNT |
188 | - |
|
Datasheet | - | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.57GHz ~ 1.58GHz | Molded | 1 | 1.5 | - | 3dBi | - | Cable - 3m | SMA | - | - | - | Magnetic | 0.669" (17.00mm) | GPS |
|
|
ANT-20264IB93RF ANT, GPS/GLONASS/GALILEO/BEID |
222 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz, 1.608GHz | - | Ceramic Patch | 3 | 1.3 | -17.4dB, -16.4dB, -15.9dB | 5.2dBi, 4.3dBi, 4dBi | - | - | Solder | - | - | - | Adhesive | 0.157" (4.00mm) | Beidou, Galileo, GLONASS, GPS |
|
ANT-DK-WF0EM01-I0200RF ANT 2.45GHZ PCB TRACE SMD |
222 | - |
|
Datasheet | - | Bag | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 2 | - | 2dBi | - | Cable - 200mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.058" (1.47mm) | Wi-Fi |
|
|
ANT-200091B66RF ANT, 4G/3G/2G/GPS&GLONASS&GAL |
250 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular, Navigation | Wide Band | 829MHz, 1.559GHz, 1.575GHz, 1.602GHz, 2.06GHz | 698MHz ~ 960MHz, 1.42GHz ~ 2.7GHz | PCB Trace | 5 | 2.1, 2.2, 2.3, 5 | -3.5dB, -8dB, -8.4dB, -8.8dB | 0.5dBi, 2.3dBi, 4.2dBi, 3.8dBi, 3.4dBi, -0.9dBi, 5.5dBi | 5 W | - | - | - | - | - | Surface Mount | 0.118" (3.00mm) | 2G, 3G, 4G, GNSS, LPWA |
|
|
ANT-210171B77RF ANT, 3G&2G/PWA, OMNI-DIRECTIO |
243 | - |
|
Datasheet | - | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 2 | 2, 4.5 | -4dB, -10dB | -3.7dBi, 2.1dBi, 2.2dBi, 6.5dBi | 5 W | Cable - 100mm | I-PEX MHF1 | - | - | - | Adhesive | 0.005" (0.12mm) | 2G, 3G, LPWA |
RF Antennas FAQ
How can I narrow the current RF Antennas selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete RF Antennas parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
