RF Antennas
Browse available RF Antennas components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HG72703MGURB-RSPANTMAGMT 700-2700 MHZ BLK RSP |
1,562 | - |
|
Datasheet | HG | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 700MHz, 850MHz | - | Whip, Straight | 2 | - | - | 3dBi, 3dBi | - | Cable - 3.05m | RP-SMA | - | - | - | Magnetic | 4.700" (119.38mm) | LTE, PCS |
|
|
FG8246RF ANT 835MHZ WHIP STR N FEM |
2,401 | - |
|
Datasheet | - | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 835MHz | 824MHz ~ 896MHz | Whip, Straight | 1 | 2 | - | 6dBd | 100 W | - | N Type Female | - | - | - | Bracket Mount | 65.000" (165.10cm) | - |
|
|
HG74206DPSQCUPR-NFINDOOR SQUARE CEILING OMNI ANTEN |
2,322 | - |
|
Datasheet | HG | Bag | Active | Cellular | Wide Band | 2.449GHz | 698MHz ~ 4.2GHz | Dome | 1 | 1.8 | - | 5dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female (2) | - | - | - | Ceiling Mount | 0.390" (9.91mm) | 5G, CBRS, CDMA, DAS, GSM, LTE, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M |
|
|
GPSCP05ANTENNA WHITE TRIBAND PIFA EXT |
3,407 | - |
|
Datasheet | - | Bag | Active | Navigation | Wide Band | 892MHz, 1.575GHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.71GHz | Dome | 3 | 2 | - | 2dBi, 5dBi, 26dBi | - | - | SMB | IP67 | - | - | - | 1.300" (33.02mm) | GPS |
|
|
GPSCP09ANTENNA WHITE TRIBAND PIFA EXT |
1,068 | - |
|
Datasheet | - | Bag | Active | Navigation | Wide Band | 892MHz, 1.575GHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.71GHz | Dome | 3 | 2 | - | 2dBi, 5dBi, 26dBi | - | - | SMA | IP67 | - | - | - | 1.300" (33.02mm) | GPS |
|
|
GPSCP01ANTENNA WHT TRIBAND PIFA EXT MNT |
2,120 | - |
|
Datasheet | - | Bag | Active | Navigation | Wide Band | 892MHz, 1.575GHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.71GHz | Dome | 3 | 2 | - | 2dBi, 5dBi, 26dBi | - | - | - | IP67 | - | - | - | 1.300" (33.02mm) | GPS |
|
|
GPSCP02ANTENNA BLK TRIBAND PIFA EXT MNT |
2,395 | - |
|
Datasheet | - | Bag | Active | Navigation | Wide Band | 892MHz, 1.575GHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.71GHz | Dome | 3 | 2 | - | 2dBi, 5dBi, 26dBi | - | - | SMA | IP67 | - | - | - | 1.300" (33.02mm) | GPS |
|
|
S2401290P12NFRF ANT 2.4GHZ PANEL CAB BRKT MT |
4,618 | - |
|
Datasheet | - | Bulk | Obsolete | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Panel | 1 | 2 | - | 12dBi | 50 W | Cable - 305mm | N Type Female | - | - | - | Bracket Mount | 1.000" (25.40mm) | WiMax™ |
|
|
HG2412Y-NFANTYAGI 2.4GHZ 12DBI |
2,906 | - |
|
Datasheet | HG | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Yagi | 1 | 2 | - | 12dBi | 50 W | - | Screw-Mount | - | - | - | Mast Mount | 11.200" (284.48mm) | 802.11b/g/n, Bluetooth, ISM, Wi-Fi, WLAN |
|
|
HG2412Y-NMANTYAGI 2.4GHZ 12DBI |
3,677 | - |
|
Datasheet | HG | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Yagi | 1 | 2 | - | 12dBi | 50 W | - | Screw-Mount | - | - | - | Mast Mount | 11.200" (284.48mm) | 802.11b/g/n, Bluetooth, ISM, Wi-Fi, WLAN |
|
|
HG2415Y-RTPANTYAGI 2.4GHZ 14.5DBI |
4,664 | - |
|
Datasheet | HG | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Yagi | 1 | 1.5 | - | 14.5dBi | 50 W | Cable - 1.2192m | RP-TNC | - | - | - | Mast Mount | 18.200" (462.28mm) | 802.11b/g, Bluetooth, ISM, Wi-Fi, WLAN |
|
|
LCANLP1015698-6000 MHZ, 10 TO 11 DBI GAIN, |
3,293 | - |
|
Datasheet | LCAN | Bag | Active | Cellular, WiFi | Wide Band | 3.349GHz | 698MHz ~ 6GHz | Log Periodic | 1 | 2 | - | 11dBi | 100 W | Cable - 200mm | N Type Female | - | - | - | Bracket Mount | 17.500" (444.50mm) | 3G, 4G, 5G, 802.11a/b/g/n/ac/ad/ah/ax, CBRS, CMDA, GSM, IoT, LoRa, LPWAN, LTE, LTE-M, M2M, NB-IoT, Wi-Fi, WLAN |
|
758-975MAGNETIC FOOT ANTENNA; WITH 2.5M |
1,472 | - |
|
Datasheet | - | Bag | Active | Bluetooth, Cellular, WiFi | Wide Band | 829MHz, 1.459GHz, 2.205GHz | 698MHz ~ 960MHz, 1.4GHz ~ 1.518GHz, 1.71GHz ~ 2.7GHz | Whip, Straight | 3 | - | - | 3dBi | - | Cable - 2.5m | SMA | - | - | - | Magnetic | 3.260" (82.80mm) | Bluetooth, GSM, LTE, UMTS, WLAN |
|
DASUTWCR500NFCLARITY WHITE ULTRA THIN CEILING |
4,480 | - |
|
Datasheet | - | Box | Active | Cellular, WiFi | Wide Band | 784MHz, 1.9475GHz, 2.5GHz | 608MHz ~ 960MHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz | Flat Patch | 3 | 2 | - | 7dBi, 7dBi, 5dBi | 40 W | Cable - 500mm | N Type Female | - | - | - | Panel Mount | 0.331" (8.40mm) | LTE, Wi-Fi |
|
|
GEO-GNSS-AC-S1GPS/GLONASS ENCLOSED HELIX, ACTI |
4,984 | - |
|
Datasheet | - | Bulk | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.592GHz | 1.574GHz ~ 1.61GHz | Dome | 1 | - | - | -2dBic | - | - | SMA Female | IP67 | - | - | Panel Mount | 3.425" (87.00mm) | GLONASS, GNSS, GPS |
|
|
PAV90209H-91NMRF ANT 915MHZ PANEL N MALE CHAS |
2,481 | - |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Panel | 1 | 1.3 | - | 9dBi | 10 W | - | N Type Male | IP67 | - | - | Chassis Mount | 1.320" (33.53mm) | - |
|
|
CFD69383-300SMAMOMNI,DBAND,300CM,SMAM |
4,453 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

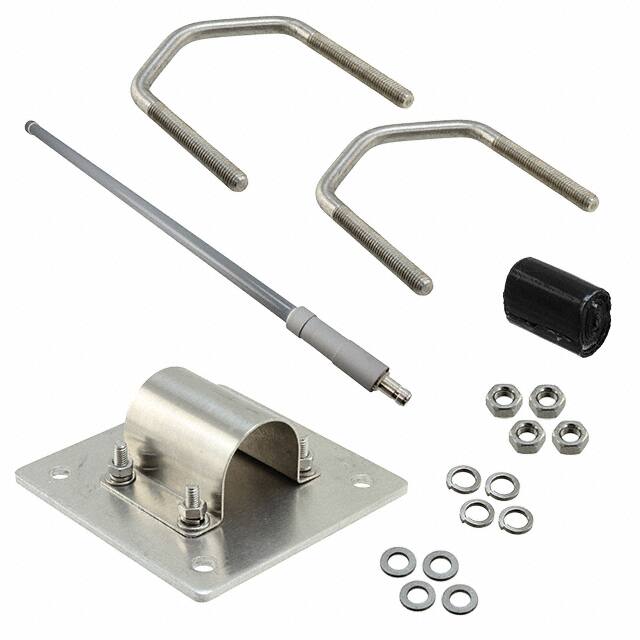

OD58-12RF ANT 5.7GHZ WHIP STR N FEM |
1,823 | - |
|
Datasheet | - | Bulk | Obsolete | WiFi | SHF (f > 4GHz) | 5.7GHz | 5.47GHz ~ 5.85GHz | Whip, Straight | 1 | 1.5 | - | 12dBi | 100 W | - | N Type Female | - | - | - | Bracket Mount | 27.559" (700.00mm) | WiMax™, WLAN |
|
|
1319.19.00281319.19.0028 |
2,755 | - |
|
Datasheet | - | Bulk | Active | - | UHF (1GHz ~ 2GHz) | 1.905GHz | 1.88GHz ~ 1.93GHz | Dome | 1 | 1.5 | - | 2dBi | - | Cable - 1.5m | SMA Female | - | - | - | Panel Mount | 1.693" (43.00mm) | General Purpose |
|
|
FM51OM1014ANTENNA TYPE N JACK 824 MHZ-960 |
3,307 | - |
|
Datasheet | - | Bag | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz) | 892MHz | 824MHz ~ 960MHz | Whip, Straight | 1 | 1.5 | - | 6dBi | 100 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Bracket Mount | 22.200" (563.88mm) | GSM, IoT, ISM, LoRa, LPWAN, M2M, WLAN |
RF Antennas FAQ
What RF Antennas components can I source from EGOO?
You can browse available RF Antennas product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete RF Antennas parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
