RF Antennas
Compare the current RF Antennas RF and Wireless selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EMF2449A1-10UFLEMBED,ASSY,100MM,UFL 802.11ABG,, |
2,403 | - |
|
Datasheet | Mini NanoBlade Flex | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MAF94192RF ANT 2.4GHZ/5.5GHZ STAMPED MET |
3,168 | - |
|
Datasheet | D-Puck | Tape & Reel (TR) | Obsolete | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | Stamped Metal | 2 | 2.5 | - | 3dBi, 4dBi | - | - | Solder | - | - | - | Surface Mount | 0.236" (6.00mm) | WiMax™ |
|
|
MAF94158RF ANT 2.4GHZ/5.5GHZ FLAT PATCH |
2,348 | - |
|
Datasheet | NanoBlade | Bulk | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Flat Patch | 2 | 2 | - | 4dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | - | - |
|
637109RF ANT 850/900MHZ BLADE CAB ADH |
2,340 | - |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Cellular, General ISM | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Blade | 4 | 2 | - | 2.3dBi, 2.3dBi, 2.1dBi, 3.1dBi | - | Cable - 4m | SMC Male | IP50 | - | - | Adhesive, Hook and Loop | 0.201" (5.10mm) | AMPS, DCS, GSM, PCS |
|

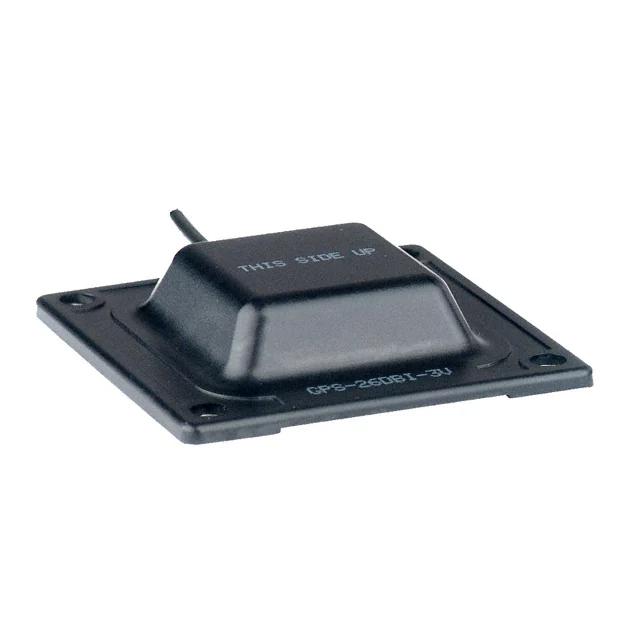

637108RF ANT 1.575GHZ DOME SMA ML ADH |
1,199 | - |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Dome | 1 | 2.1 | - | 4.5dBic | - | - | SMA Male | IP50 | - | - | Adhesive, Hook and Loop | 0.512" (13.00mm) | GPS |
|

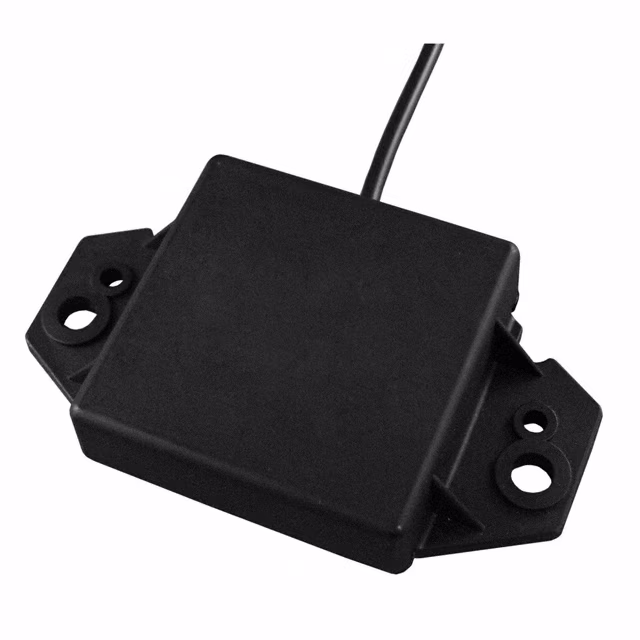

637113RF ANT 2.4GHZ DOME SMA MALE CHAS |
4,248 | - |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.485GHz | Dome | 1 | 2.1 | - | 4dBic | - | - | SMA Male | IP50 | - | - | Chassis Mount | 0.591" (15.00mm) | WLAN |
|
637114RF ANT 1.575GHZ MOD SMA MALE MAG |
1,111 | - |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Module | 1 | 2 | - | 4dBic | - | Cable - 6m, LNA | SMA Male | IP66 | - | - | Magnetic | 0.551" (14.00mm) | GPS |
|
637112RF ANT 850/900MHZ WEDGE CAB ADH |
1,691 | - |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Cellular, General ISM | Wide Band | 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.17GHz | Wedge | 6 | 2 | - | 3.5dBi, 3dBi, 3dBic, 3.5dBi, 0dBi, 2.5dBi | - | Cable - 4m, LNA | SMC Male (1), SMA Male (1) | IP50 | - | - | Adhesive, Hook and Loop | 0.441" (11.20mm) | AMPS, DCS, GPS, GSM, PCS, UMTS |
|
637117RF ANT 850MHZ/900MHZ MOD ADH |
1,537 | - |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Module | 5 | 2.5 | - | 0dBi, 0dBi, 4.5dBic, 2dBi, 2dBi | - | Cable - 6m, LNA | SMC (1), SMA (1) | IP67 | - | - | Adhesive, Hook and Loop | 0.984" (25.00mm) | AMPS, DCS, GPS, GSM, PCS |
|
|
EFB2455A3S-100MH4LEMBED ASSY |
3,495 | - |
|
Datasheet | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
RF Antennas FAQ
How can I narrow the current RF Antennas selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete RF Antennas parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
