RF Multiplexers
Compare the current RF Multiplexers RF and Wireless selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency Bands (Low / High) | Low Band Attenuation (min / max dB) | High Band Attenuation (min / max dB) | Return Loss (Low Band / High Band) | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

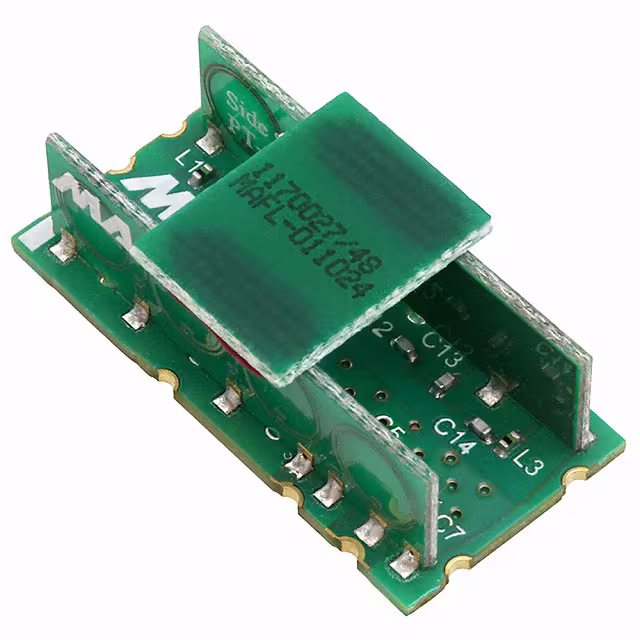

MAFL-011024RF DIPLEXER 45MHZ/555MHZ 11SMD |
117 | - |
|
Datasheet | - | 11-SMD Module | Tape & Reel (TR) | Active | Diplexer | 5MHz ~ 85MHz / 108MHz ~ 1.002GHz | - | - | 16.0dB / 16.0dB | - | - | Surface Mount |
|
MAFL-011077RF DIPLEXER 85/102MHZ SMD |
998 | - |
|
Datasheet | - | 20-SMD, No Lead | Tape & Reel (TR) | Active | Diplexer | 5MHz ~ 85MHz / 102MHz ~ 1.218GHz | - | - | 24.0dB / 24.0dB | - | - | Surface Mount |
|
MAFL-011078RF DIPLEXER 42/54MHZ SMD |
788 | - |
|
Datasheet | - | 20-SMD, No Lead | Tape & Reel (TR) | Active | Diplexer | 5MHz ~ 42MHz / 54MHz ~ 1.218GHz | - | - | 24.0dB / 24.0dB | - | - | Surface Mount |
|
MAFL-011013RF DIPLEXER 23.5MHZ/527MHZ 11SMD |
176 | - |
|
Datasheet | - | 11-SMD Module | Tape & Reel (TR) | Active | Diplexer | 5MHz ~ 42MHz / 54MHz ~ 1GHz | - | - | 16.0dB / 16.0dB | - | - | Surface Mount |
|
|
MAFL-011057RF DIPLEXER MODULE |
926 | - |
|
Datasheet | - | Module | Tape & Reel (TR) | Active | Diplexer | - | - | - | - | - | - | Surface Mount |
|
|
MAFL-011081RF DIPLEXER 204/258MHZ SMD |
184 | - |
|
Datasheet | - | 20-SMD, No Lead | Tape & Reel (TR) | Active | Diplexer | 5MHz ~ 204MHz / 258MHz ~ 1.218GHz | - | - | 19.0dB / 18.0dB | - | - | Surface Mount |
|
|
MAFL-011056RF DIPLEXER MODULE |
173 | - |
|
Datasheet | - | Module | Tape & Reel (TR) | Active | Diplexer | - | - | - | - | - | - | Surface Mount |
|
MAFL-011026RF DIPLEXER 502.5MHZ/1.4GHZ MOD |
2,963 | - |
|
Datasheet | - | Module | Tape & Reel (TR) | Active | Diplexer | 5MHz ~ 1GHz / 1.1GHz ~ 1.7GHz | - | - | 18.0dB / 16.0dB | - | - | Surface Mount |
|
|
MAFL-011055RF DIPLEXER MODULE |
1,120 | - |
|
Datasheet | - | Module | Tape & Reel (TR) | Active | Diplexer | - | - | - | - | - | - | Surface Mount |
|
MAFL-010465-CD0B20BALUN TRANSFORMER |
3,679 | - |
|
Datasheet | - | Module | Bulk | Obsolete | Diplexer | 5MHz ~ 42MHz / 88MHz ~ 1.002GHz | - | - | 15.0dB / 12.0dB | - | - | Surface Mount |
