RF Multiplexers
Compare the current RF Multiplexers RF and Wireless selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency Bands (Low / High) | Low Band Attenuation (min / max dB) | High Band Attenuation (min / max dB) | Return Loss (Low Band / High Band) | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

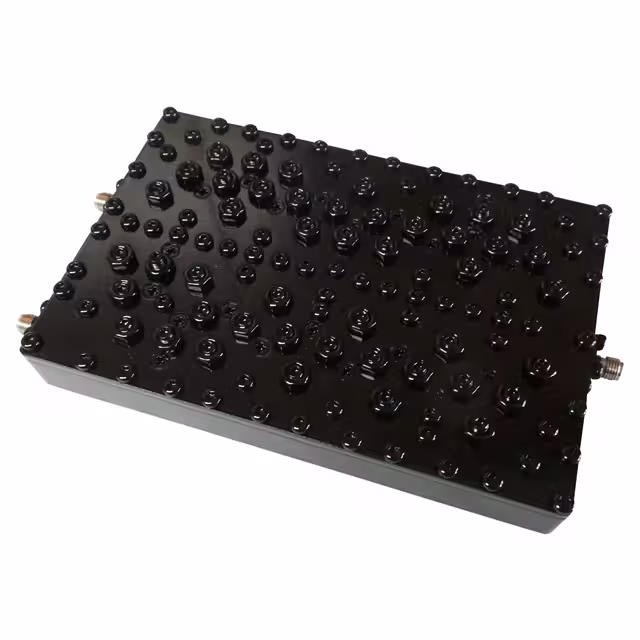

AE4700-5550DB54704700 MHZ / 5550 MHZ CAVITY DUPLE |
100 | - |
|
Datasheet | - | Module | Box | Active | Duplexer | 4.4GHz ~ 5GHz / 5.25GHz ~ 5.85GHz | - | - | 16.0dB / 16.0dB | - | - | Chassis Mount |
|
AD2230-2050D3482020-2080 MHZ, 2200-2260 MHZ CAV |
100 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Duplexer | 2.02GHz ~ 2.08GHz / 2.2GHz ~ 2.26GHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
|
AD7500-8150D4457250-7750 MHZ / 7900-8400 MHZ CA |
100 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Duplexer | 7.25GHz ~ 7.75GHz / 7.9GHz ~ 8.4GHz | - | - | 13.0dB / 13.0dB | - | - | Chassis Mount |
|
|
AE137-322DB5183200 MHZ LC DUPLEXER/DIPLEXER |
100 | - |
|
Datasheet | - | Module | Box | Active | Duplexer, Diplexer | 100MHz ~ 175MHz / 225MHz ~ 420MHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
|
AE754-785DB5479754 MHZ / 785 MHZ CAVITY DUPLEXE |
100 | - |
|
Datasheet | - | Module | Box | Active | Duplexer | 746MHz ~ 763MHz / 777MHz ~ 793MHz | - | - | 14.0dB / 14.0dB | - | - | Chassis Mount |
|
AD4700-5550D4244700 MHZ / 5550 MHZ CAVITY DUPLE |
100 | - |
|
Datasheet | - | Module | Box | Active | Duplexer | 4.4GHz ~ 5GHz / 5.25GHz ~ 5.85GHz | - | - | 16.0dB / 16.0dB | - | - | Chassis Mount |
|
|
AD865-820D247862-869 MHZ 817-824 MHZ CAVITY D |
100 | - |
|
Datasheet | - | Module | Box | Active | Duplexer | 817MHz ~ 824MHz / 862MHz ~ 869MHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
|
AE634-698DB5448634 / 698 MHZ CAVITY DUPLEXER |
100 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Duplexer | 617MHz ~ 652MHz / 663MHz ~ 698MHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
|
AE634-698DB5448-N634 / 698 MHZ CAVITY DUPLEXER WI |
100 | - |
|
Datasheet | - | Module | Box | Active | Duplexer | 617MHz ~ 652MHz / 663MHz ~ 698MHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
|
AD4700-5550D4294700 MHZ / 5550 MHZ CAVITY DUPLE |
100 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Duplexer | 4.395GHz ~ 5.005GHz / 5.245GHz ~ 5.855GHz | - | - | 16.0dB / 16.0dB | - | - | Chassis Mount |
RF Multiplexers FAQ
How can I narrow the current RF Multiplexers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete RF Multiplexers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
