RF Shields
Compare the current RF Shields RF and Wireless selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Height - Overall | Length - Overall | Width - Overall | Ventilation | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

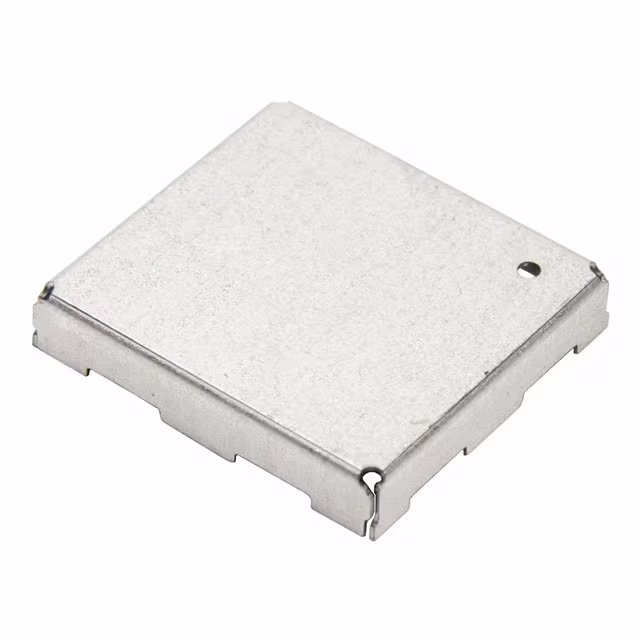

SMS-301RF SHIELD 0.5" X 0.538" SMD |
5,200 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cover | 0.100" (2.54mm) | 0.538" (13.67mm) | 0.500" (12.70mm) | Vented | Surface Mount |
|
SMS-302RF SHIELD 0.65" X 0.65" SMD |
1,520 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cover | 0.142" (3.61mm) | 0.650" (16.51mm) | 0.650" (16.51mm) | Non-Vented | Surface Mount |
|
|
SMS-303RF SHIELD 1.032" X 1.032" SMD |
833 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cover | 0.200" (5.08mm) | 1.032" (26.21mm) | 1.032" (26.21mm) | Non-Vented | Surface Mount |
|
|
SMS-403FRF SHIELD 1.034" X 1.034" SMD |
438 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Frame | 0.200" (5.08mm) | 1.034" (26.26mm) | 1.034" (26.26mm) | - | Surface Mount |
|
|
SMS-205FRF SHIELD 1" X 1.5" SMD |
3,577 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Frame | 0.236" (6.00mm) | 1.500" (38.10mm) | 1.000" (25.40mm) | - | Surface Mount |
|
SMS-458FRF SHIELD 1.07" X 1.54" SMD |
7,497 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Frame | 0.236" (6.00mm) | 1.540" (39.12mm) | 1.070" (27.18mm) | - | Surface Mount |
|
|
SMS-404FRF SHIELD 1.282" X 1.282" SMD |
398 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Frame | 0.236" (6.00mm) | 1.282" (32.56mm) | 1.282" (32.56mm) | - | Surface Mount |
|
|
SMS-304RF SHIELD 1.26" X 1.26" SMD |
434 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cover | 0.236" (6.00mm) | 1.260" (32.00mm) | 1.260" (32.00mm) | Non-Vented | Surface Mount |
|
|
24-CBSA-0.5X1.0X0.2RF SHIELD 0.5" X 1" THROUGH HOLE |
152 | - |
|
Datasheet | - | Bulk | Active | Shield, 2-Piece | 0.200" (5.08mm) | 1.000" (25.40mm) | 0.500" (12.70mm) | Non-Vented | Through Hole |
|
|
24-CBSA-1.0X1.0X0.2RF SHIELD 1" X 1" THROUGH HOLE |
942 | - |
|
Datasheet | - | Bulk | Active | Shield, 2-Piece | 0.200" (5.08mm) | 1.000" (25.40mm) | 1.000" (25.40mm) | Non-Vented | Through Hole |
RF Shields FAQ
How can I narrow the current RF Shields selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete RF Shields parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
