RF Shields
Compare the current RF Shields RF and Wireless selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Height - Overall | Length - Overall | Width - Overall | Ventilation | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BMI-S-206-CRF SHIELD 1.344"X1.468" SNAP FIT |
20,201 | - |
|
Datasheet | SMT 2 Piece | Bulk | Active | Cover | 0.079" (2.00mm) | 1.468" (37.29mm) | 1.344" (34.14mm) | Vent Holes in Pattern | Snap Fit |
|
BMI-S-206-FRF SHIELD 1.326" X 1.45" SOLDER |
23,852 | - |
|
Datasheet | SMT 2 Piece | Tape & Reel (TR) | Active | Frame | 0.200" (5.08mm) | 1.450" (36.83mm) | 1.326" (33.68mm) | - | Surface Mount |
|

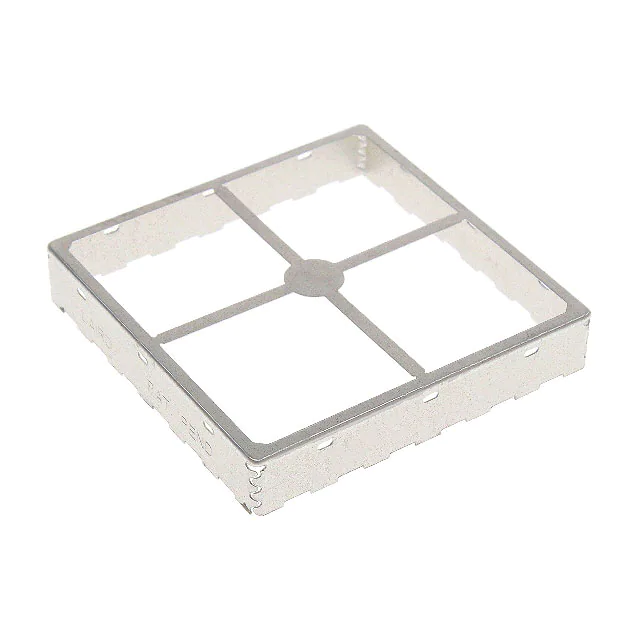

BMI-S-208-FRF SHIELD 1.559" X 1.559" SOLDER |
4,559 | - |
|
Datasheet | SMT 2 Piece | Tape & Reel (TR) | Active | Frame | 0.276" (7.00mm) | 1.559" (39.60mm) | 1.559" (39.60mm) | - | Surface Mount |
|

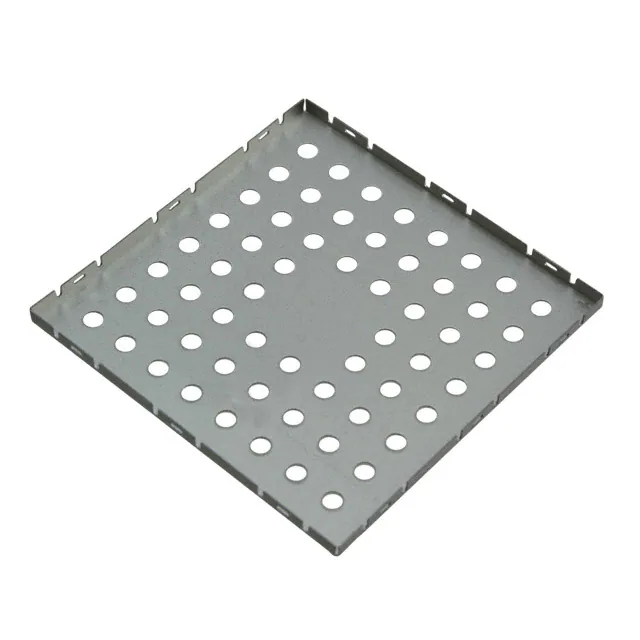

BMI-S-207-CRF SHIELD 1.765"X1.765" SNAP FIT |
1,663 | - |
|
Datasheet | SMT 2 Piece | Bulk | Active | Cover | 0.079" (2.00mm) | 1.765" (44.83mm) | 1.765" (44.83mm) | Vent Holes in Pattern | Snap Fit |
|
BMI-S-207-FRF SHIELD 1.747" X 1.747" SOLDER |
25,126 | - |
|
Datasheet | SMT 2 Piece | Tape & Reel (TR) | Active | Frame | 0.384" (9.75mm) | 1.747" (44.37mm) | 1.747" (44.37mm) | - | Surface Mount |
|
BMI-S-202-C-20SBS,COVR,LP 16.9X16.9X1.75MM |
3,710 | - |
|
Datasheet | SMT 2 Piece | Bulk | Active | Cover | 0.069" (1.75mm) | 0.665" (16.90mm) | 0.665" (16.90mm) | Vent Holes in Pattern | Snap Fit |
|
|
BMI-S-203-C-20RF SHIELD 1.048" X 1.048" T/H |
8,779 | - |
|
Datasheet | SMT 2 Piece | Bulk | Active | Shield, 2-Piece | 0.069" (1.75mm) | 1.048" (26.61mm) | 1.048" (26.61mm) | Vent Holes in Pattern | Snap Fit |
|
|
BMI-S-203-F-20-RRF SHIELD 1.032"X1.032" T/H 2PC |
3,110 | - |
|
Datasheet | SMT 2 Piece | Tape & Reel (TR) | Active | Shield, 2-Piece | 0.079" (2.00mm) | 1.032" (26.21mm) | 1.032" (26.21mm) | - | Surface Mount |
|
BMI-S-105RF SHIELD 1" X 1.5" SOLDER 1PC |
1,372 | - |
|
Datasheet | SMT 1 Piece | Tape & Reel (TR) | Active | Shield, 1-Piece | 0.236" (6.00mm) | 1.500" (38.10mm) | 1.000" (25.40mm) | Vent Holes in Pattern | Surface Mount |
|
|
BMI-S-106RF SHIELD 1.326"X1.45" SLDR 1PC |
4,379 | - |
|
Datasheet | SMT 1 Piece | Tape & Reel (TR) | Active | Shield, 1-Piece | 0.200" (5.08mm) | 1.450" (36.83mm) | 1.326" (33.68mm) | Vent Holes in Pattern | Surface Mount |
RF Shields FAQ
How can I narrow the current RF Shields selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete RF Shields parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
