Switching Converter, SMPS Transformers
Browse available Switching Converter, SMPS Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

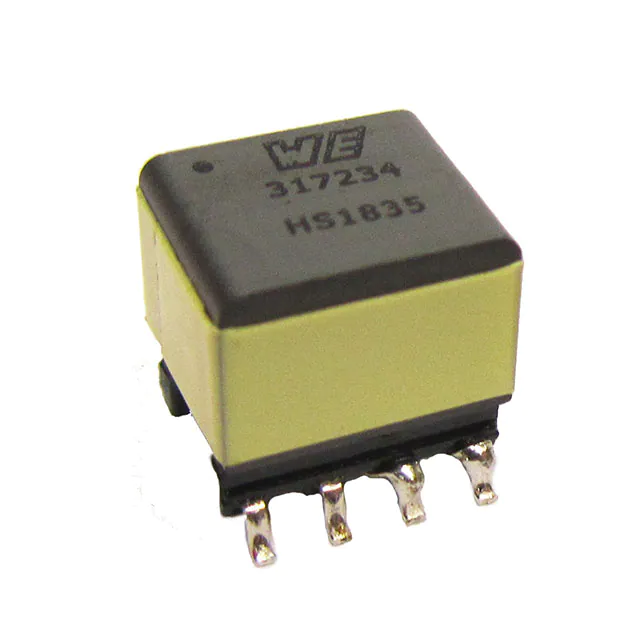

750317234XFMR FLYBACK DC/DC CONV 84UH SMD |
246 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | Maxim Integrated | 18 ~ 60VDC | - | 1500Vrms | 84µH @ 100kHz | 143.5kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.385" L x 0.374" W (9.78mm x 9.50mm) | 0.415" (10.54mm) | 0.324" L x 0.360" W (8.23mm x 9.14mm) | Wirewound |
.00xNL-Series.jpg "PA3856.001NL")
|
PA3856.001NLXFMR FWD P-P DC/DC CONV SMD |
770 | - |
|
Datasheet | EP13Plus | Tray | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.526" W (14.50mm x 13.36mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|
|
PA3856.002NLXFMR FWD P-P DC/DC CONV SMD |
473 | - |
|
Datasheet | - | Tray | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.695" W (14.50mm x 17.65mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|
750315831XFMR FLYBACK DC/DC CONV 150UH SM |
295 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | Linear Technology | 9 ~ 36V | - | 1875Vrms | 150µH @ 10kHz | 50 ~ 200kHz | -40°C ~ 125°C | - | - | Surface Mount | - | - | - | - |
|
PA3856.002NLTXFMR FWD P-P DC/DC CONV SMD |
974 | - |
|
Datasheet | EP13Plus | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.526" W (14.50mm x 13.36mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|

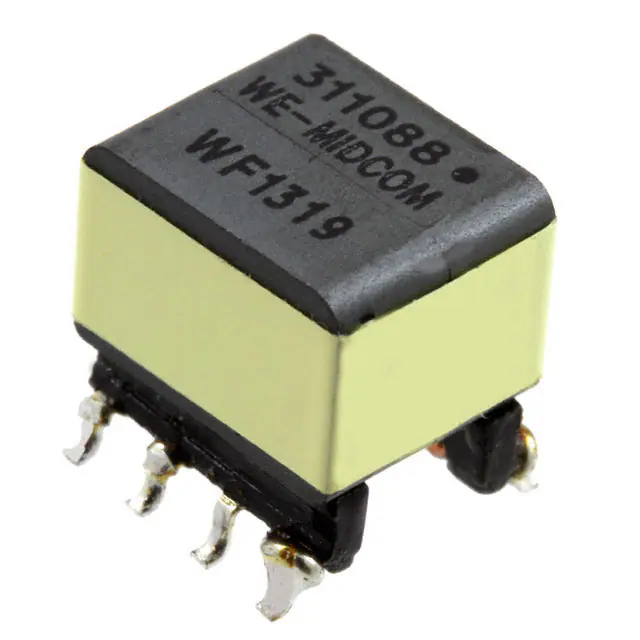

750311088XFMR FLYBACK DC/DC CONV 2.7UH SM |
122 | - |
|
Datasheet | WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 6 ~ 12.6V | - | 500Vrms | 2.7µH @ 100kHz | 391kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.420" (10.69mm) | 0.385" L x 0.360" W (9.78mm x 9.14mm) | - |
|
PA3965.002NLXFMR FLYBACK 7W |
1,352 | - |
|
Datasheet | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | 0.657" L x 0.500" W (16.70mm x 12.70mm) | 0.557" (14.15mm) | 0.657" L x 0.650" W (16.70mm x 16.50mm) | - |
|

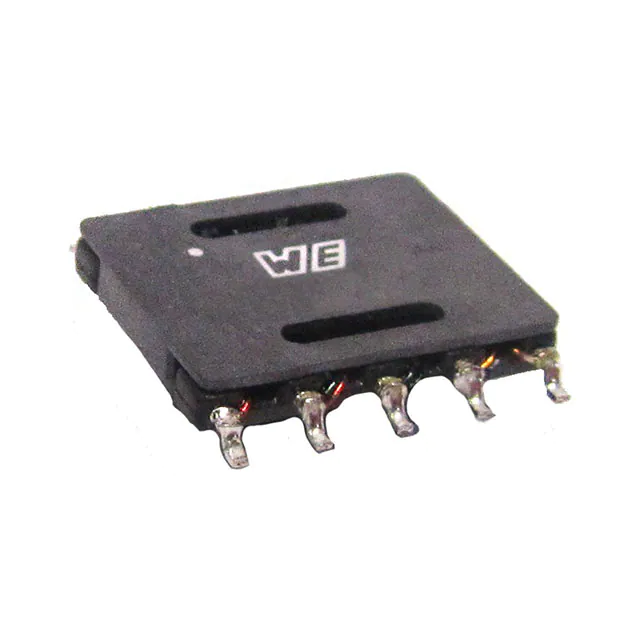

750316668XFMR FWD P-P DC/DC CONV 60UH SMD |
175 | - |
|
Datasheet | MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 5V | - | 2500Vrms | 60µH @ 10kHz | 400kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.458" L x 0.364" W (11.63mm x 9.25mm) | 0.157" (3.99mm) | 0.458" L x 0.496" W (11.63mm x 12.60mm) | - |
|
750315945XFMR FWD P-P DC/DC CONV SMD |
426 | - |
|
Datasheet | MID-FWD | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 17 ~ 36V | - | 1250Vrms | - | 500kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.530" L x 0.699" W (13.46mm x 17.75mm) | 0.500" (12.70mm) | - | - |
|
750315504XFMR RES CONV DC/DC 2.5MH SM |
256 | - |
|
Datasheet | WE-FW, MID-HB | Tape & Reel (TR) | Active | For DC/DC Converters | Resonant Converters | - | - | 3 ~ 3.6V | - | 1500Vrms | 2.5mH @ 10kHz | 30 ~ 70kHz | -40°C ~ 105°C | - | - | Surface Mount | - | 0.385" (9.78mm) | 0.310" L x 0.330" W (7.87mm x 8.38mm) | - |
|
750316743XFMR FLYBACK SMD |
1,248 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PA5099.001NLTXFMR FLYBACK DC/DC CONV SMD |
610 | - |
|
Datasheet | PA5099.XXXNLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 33 ~ 57V | - | 2250VDC | - | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.535" L x 0.433" W (13.60mm x 11.00mm) | 0.610" (15.50mm) | 0.535" L x 0.433" W (13.60mm x 11.00mm) | Wirewound |
|
|
PA5099.002NLTXFMR FLYBACK DC/DC CONV SMD |
212 | - |
|
Datasheet | PA5099.XXXNLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 33 ~ 57V | - | 2250VDC | - | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.535" L x 0.433" W (13.60mm x 11.00mm) | 0.610" (15.50mm) | 0.535" L x 0.433" W (13.60mm x 11.00mm) | Wirewound |
|
PGT6466NLTXFMR FLYBACK 1.8UH SMD |
148 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | 6 ~ 28V | - | 3000VDC | 1.8µH @ 100kHz | 500kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.650" L x 0.642" W (16.50mm x 16.30mm) | 0.433" (11.00mm) | 0.862" L x 0.650" W (21.90mm x 16.50mm) | Wirewound |
|
|
PA3856.005NLTXFMR FWD P-P DC/DC CONV SMD |
1,151 | - |
|
Datasheet | EP13Plus | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 9 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.526" W (14.50mm x 13.36mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|
B82802A0012A315XFMR FLYBACK DC/DC CONV 100UH SM |
101 | - |
|
Datasheet | B82802A | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 36 ~ 60V | - | 1500Vrms | 100µH @ 100kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.650" L x 0.681" W (16.50mm x 17.30mm) | 0.341" (8.65mm) | 0.650" L x 0.902" W (16.50mm x 22.90mm) | - |
|
750313439XFMR FLYBACK DC/DC CONV 12UH SMD |
684 | - |
|
Datasheet | WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8302 | Linear Technology | 8 ~ 40V | - | 1500Vrms | 12µH @ 10kHz | - | - | - | - | Surface Mount | - | 0.450" (11.43mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|
750310743XFMR POE DC/DC CONV 38UH SMD |
738 | - |
|
Datasheet | WE-PoE+ | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 37 ~ 57V | 12.7V @ 30mA | 1500Vrms | 38µH @ 100kHz | 250 ~ 400kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.530" L x 0.591" W (13.46mm x 15.00mm) | 0.500" (12.70mm) | 0.530" L x 0.713" W (13.46mm x 18.10mm) | - |
|
750316566XFMR FLYBACK SMD |
228 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
7508170311XFMR FLYBACK AC/DC CONV 491UH SM |
765 | - |
|
Datasheet | WE-UNIT, MID-OLEE | Tape & Reel (TR) | Active | For AC/DC Converters | Flyback Converters | - | - | 78 ~ 375V | 16V @ 50mA | 3000Vrms | 491µH @ 10kHz | 150kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.438" (11.13mm) | 0.543" L x 0.941" W (13.80mm x 23.90mm) | - |
